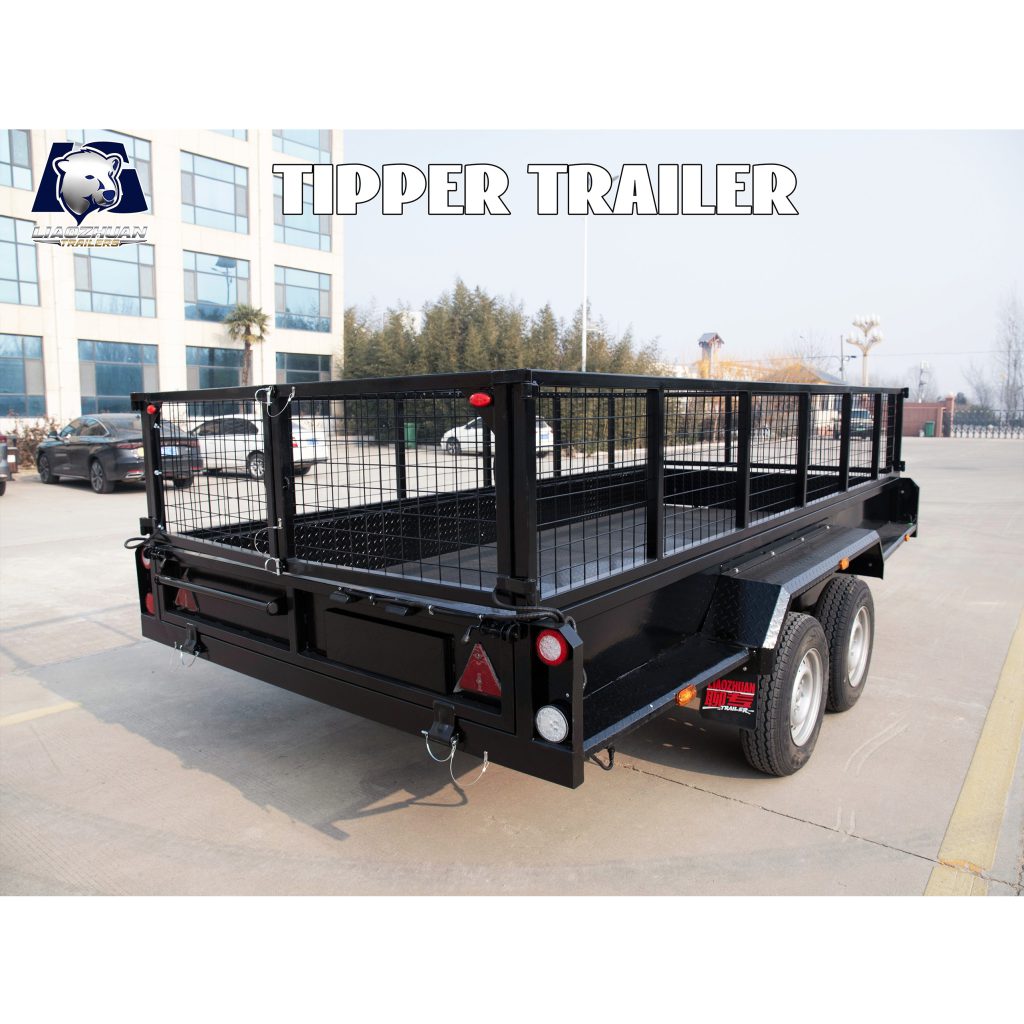

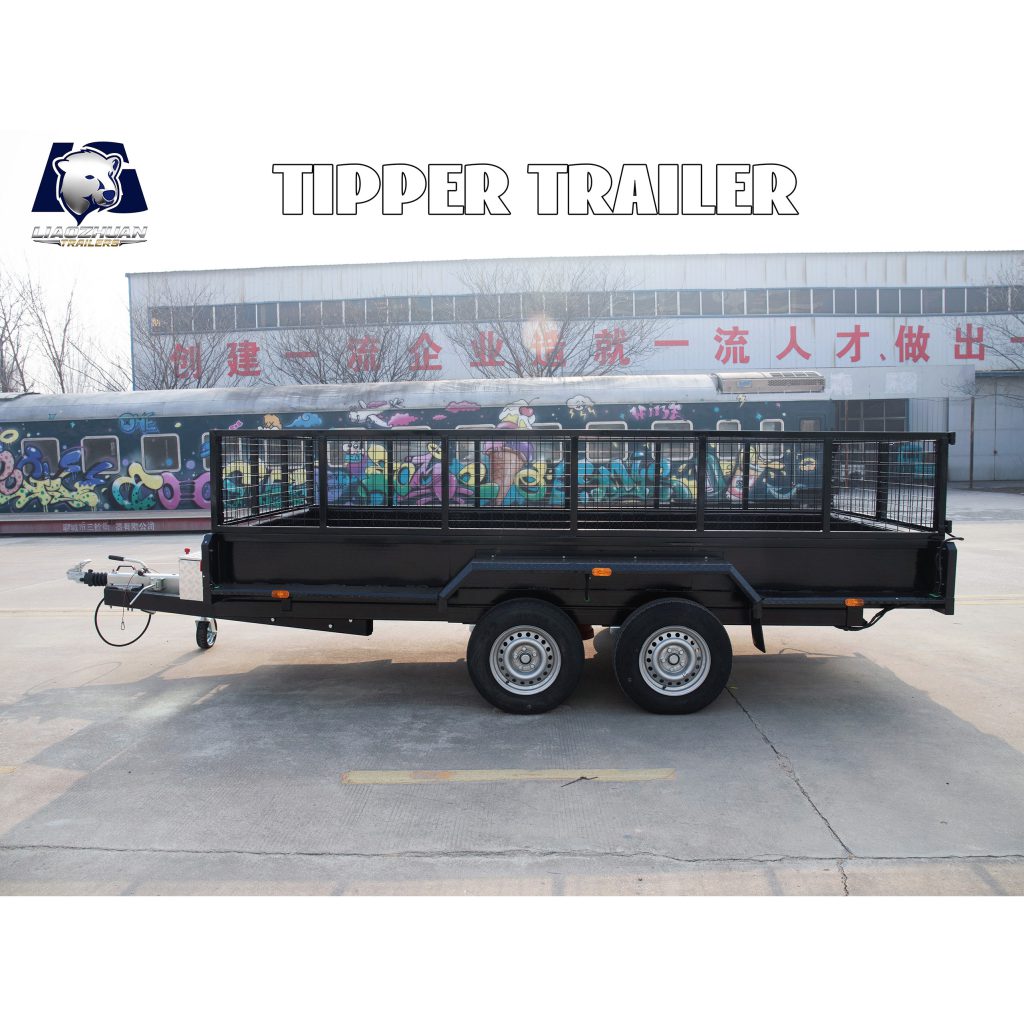

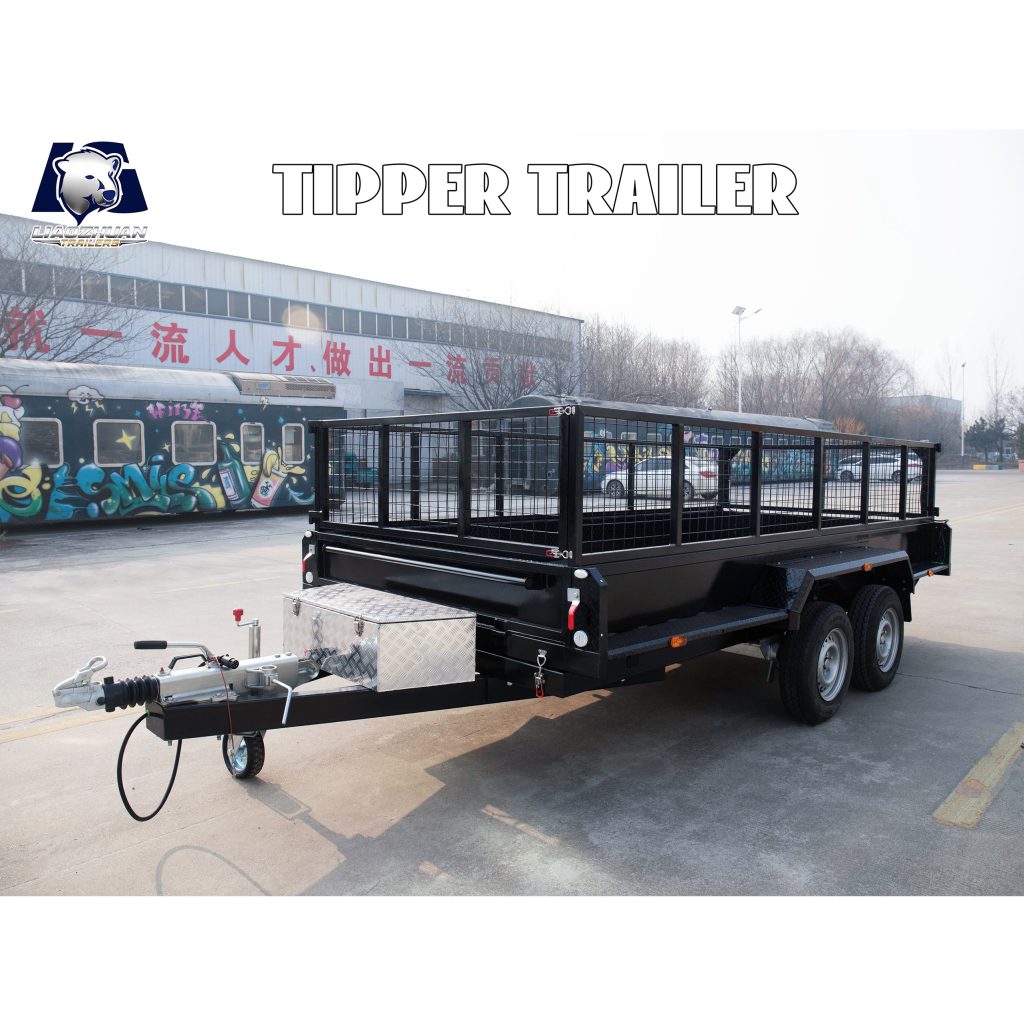

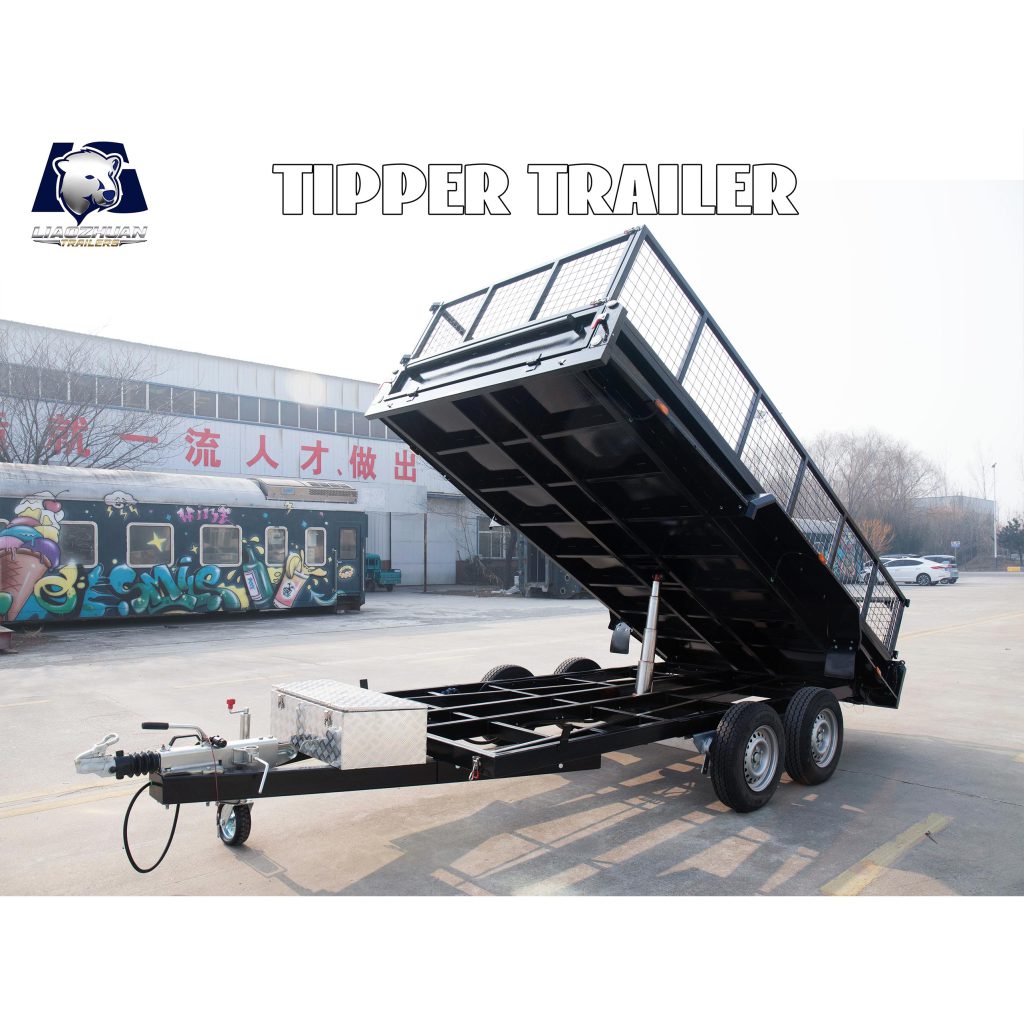

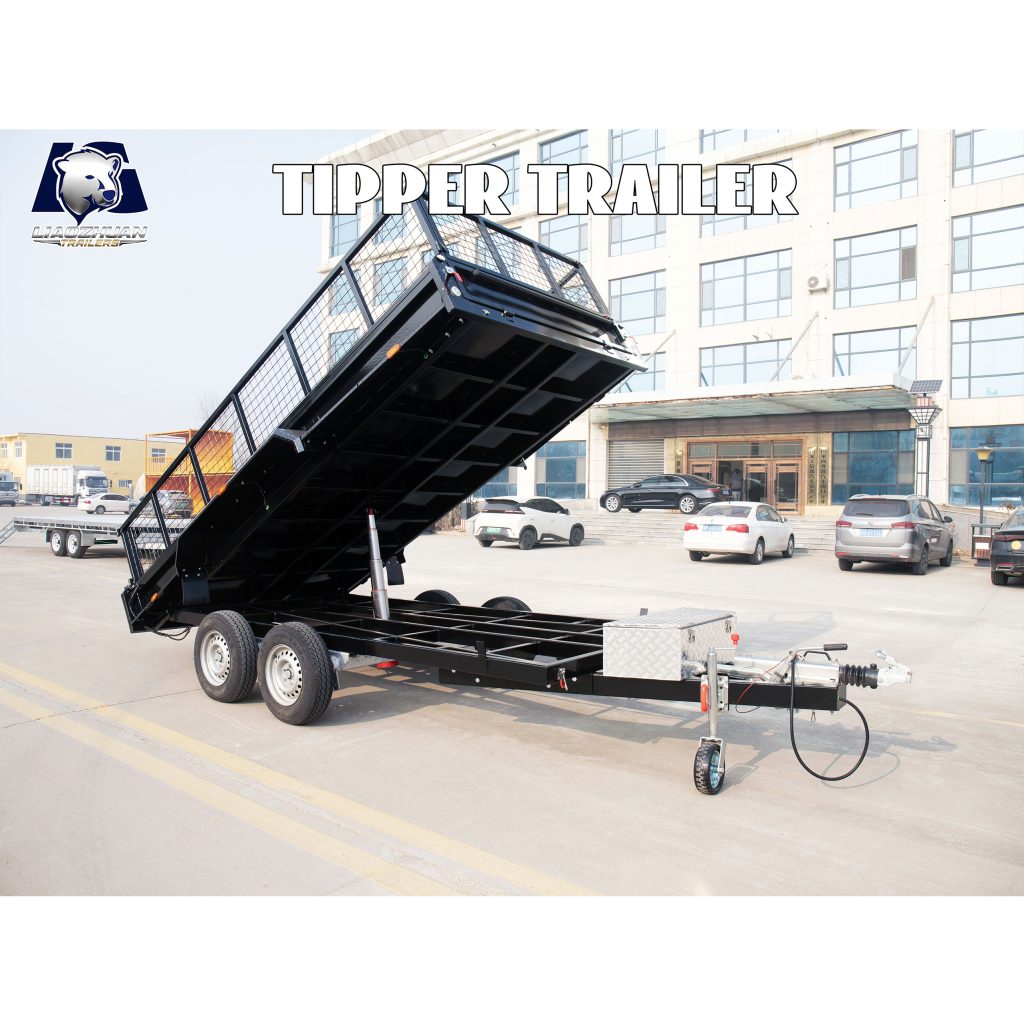

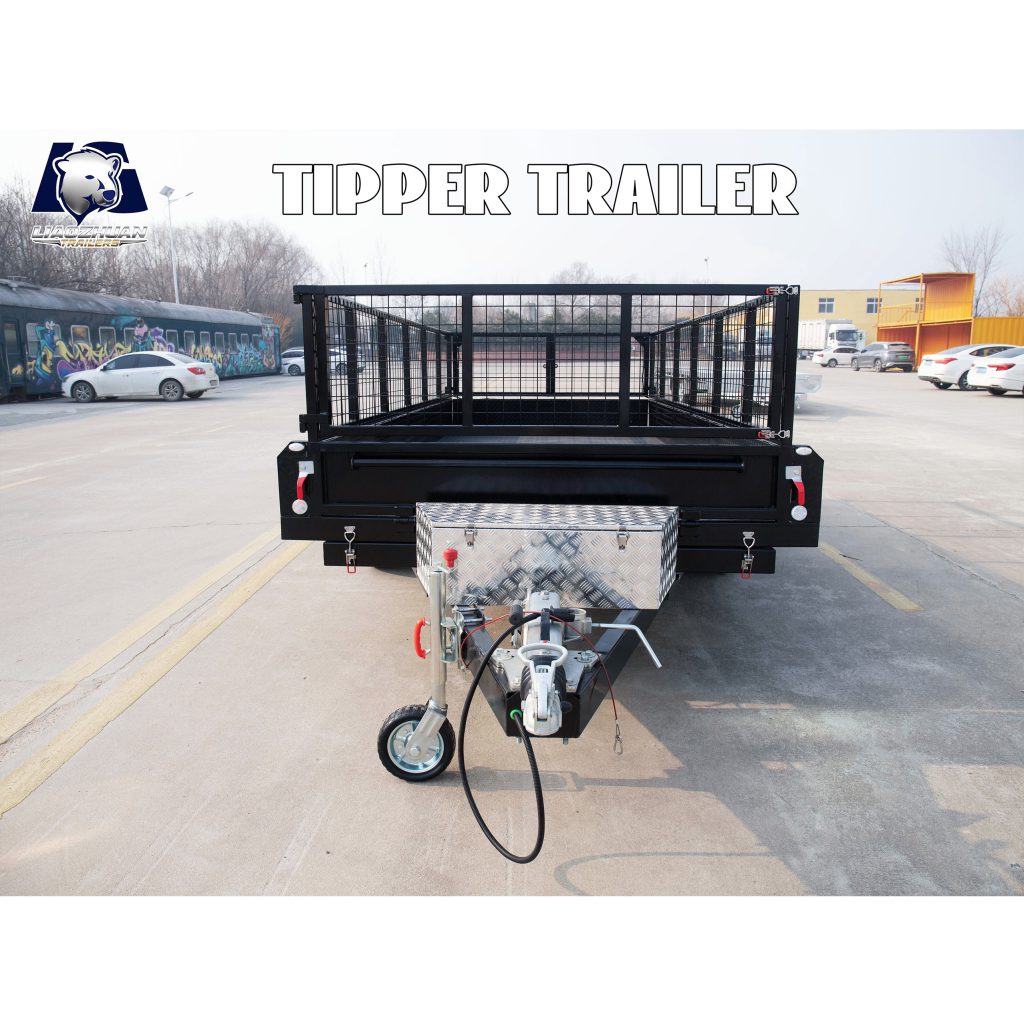

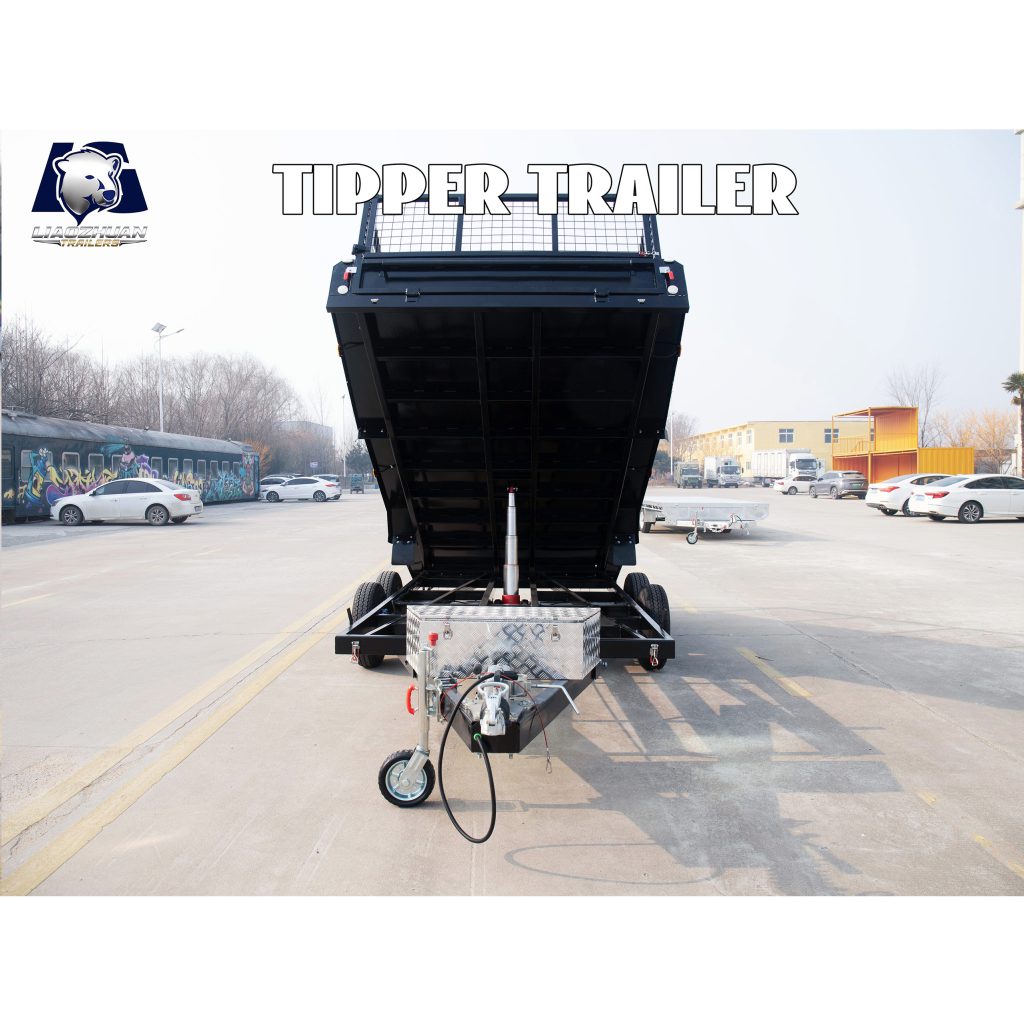

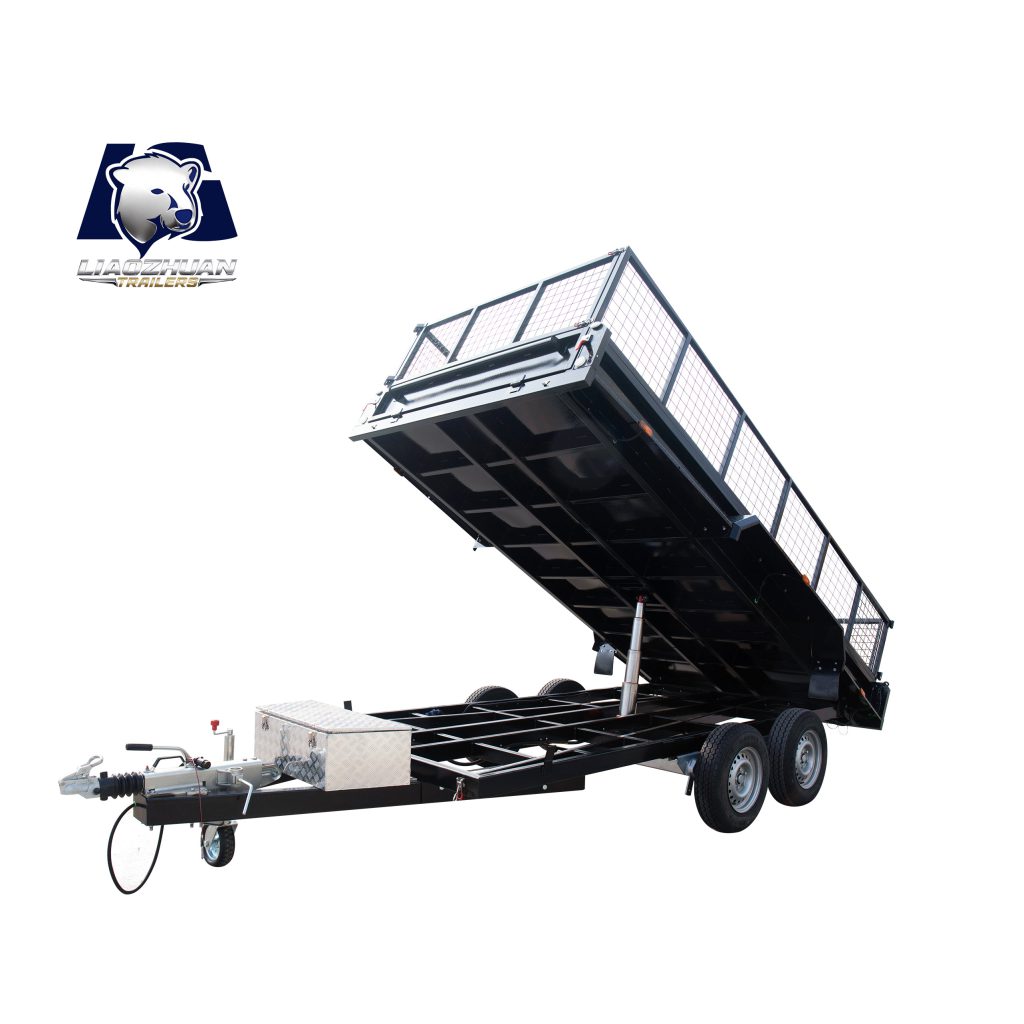

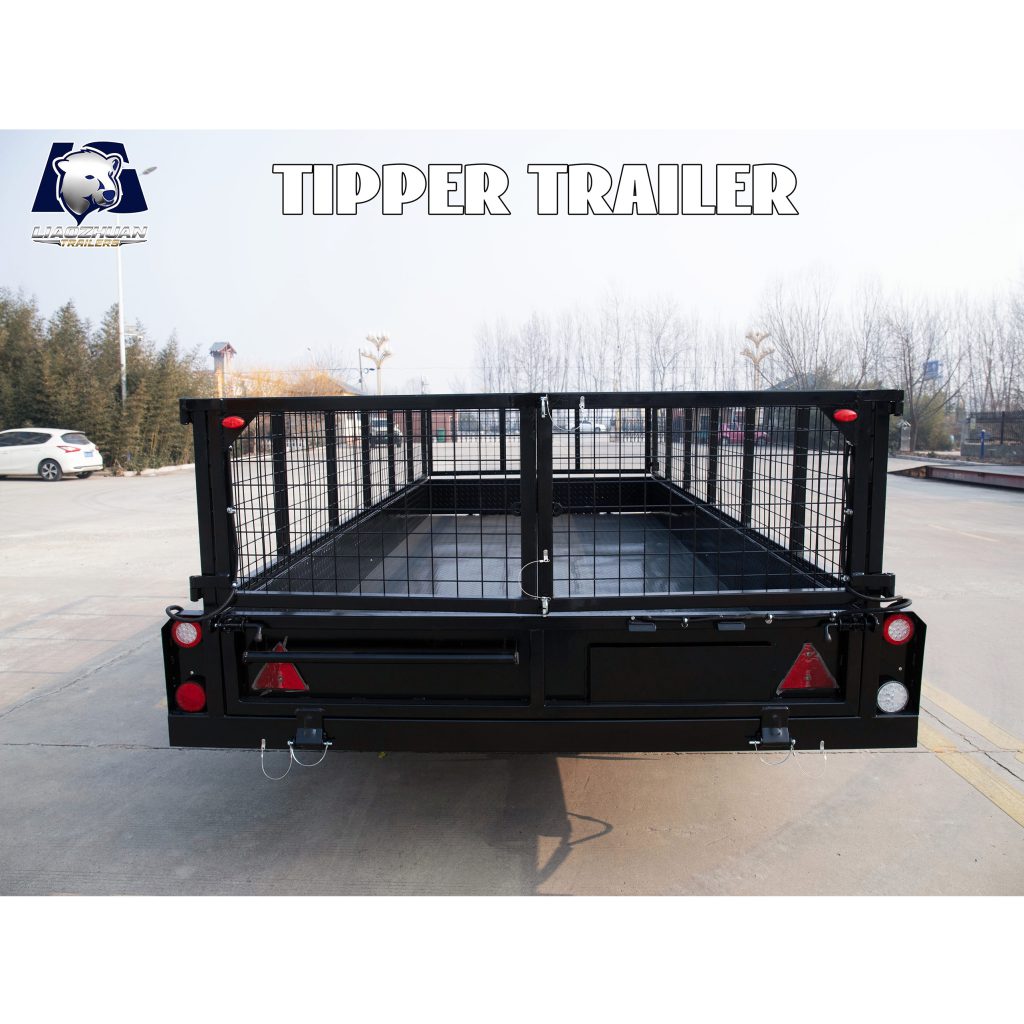

14×6 Hydraulic Dual-axis Tipper Painting Trailer 3500kg ATM (Collision Brake)
Request a quoteSpecifications
Technical specifications
| Trailer dimensions | 5780*2320*1560mm |
|---|---|
| Drawbar | 120*60 ，1530 long |
| Internal dimensions | 4200*1800*300mm+600mm |
| Surface treatment | Painting |
| Fully Welded Body & Chassis | yse |

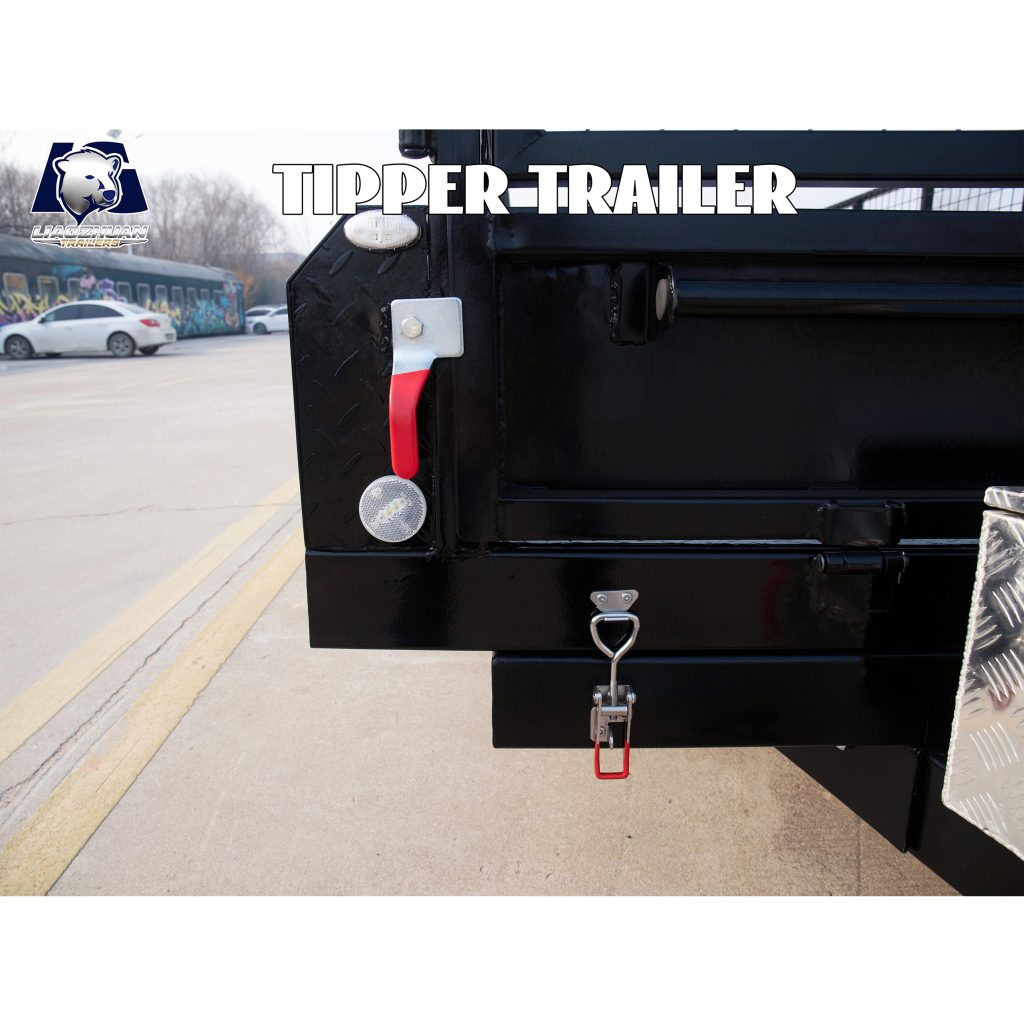

| Removable front and rear drop-down doors | yes |
| Color | Black |

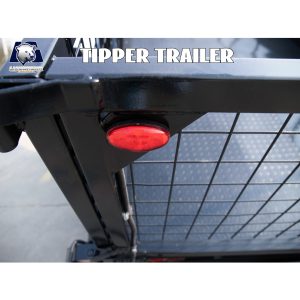

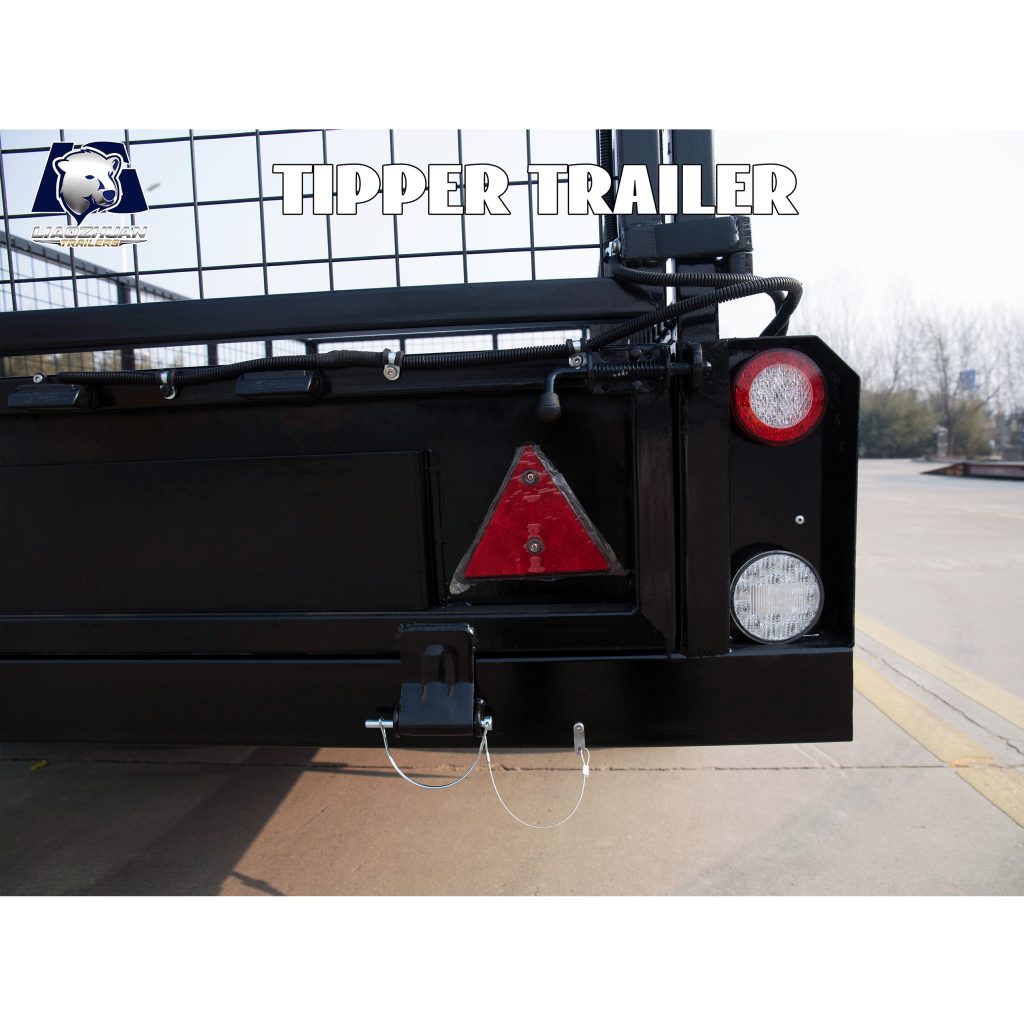

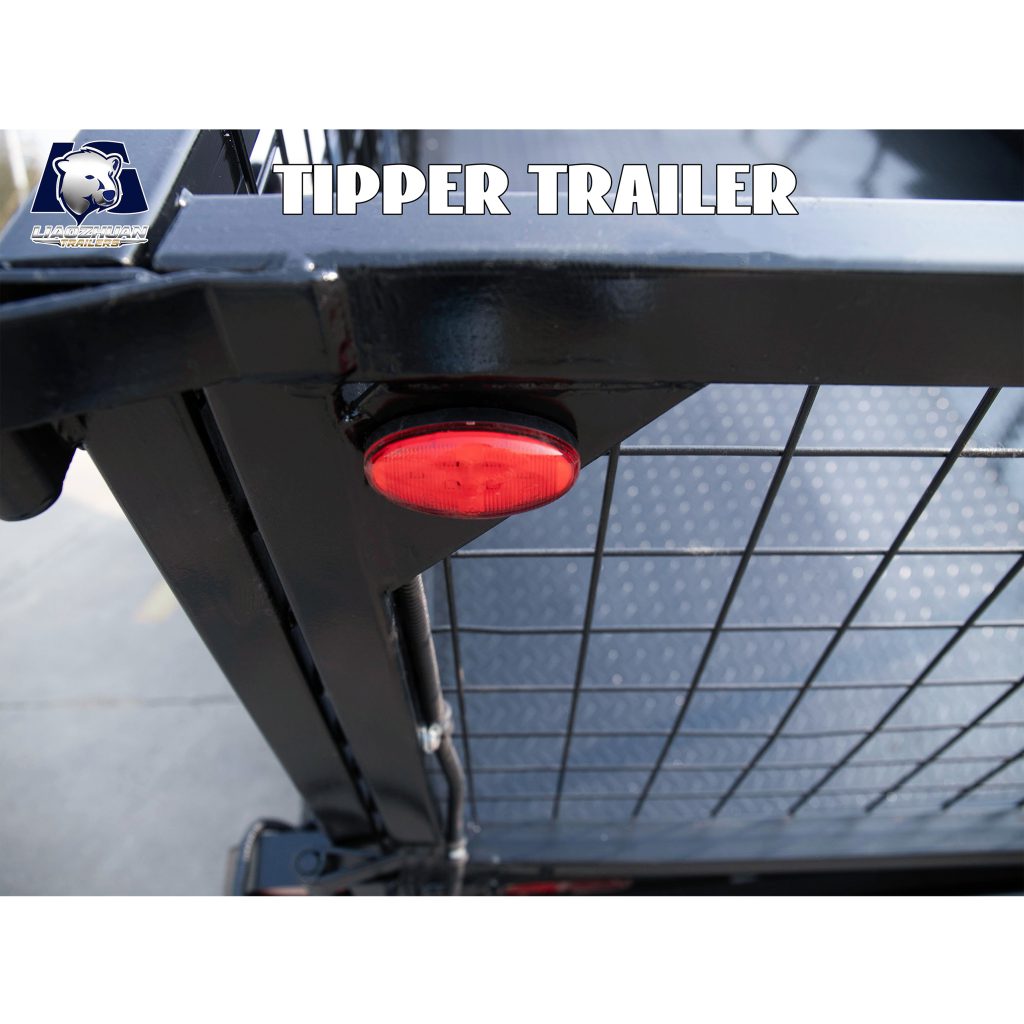

| Light | E-MARK light |
| ATM | 3500kg |
| Rated load capacity | 2080kg |
| Weight of the skin | 1420kg |

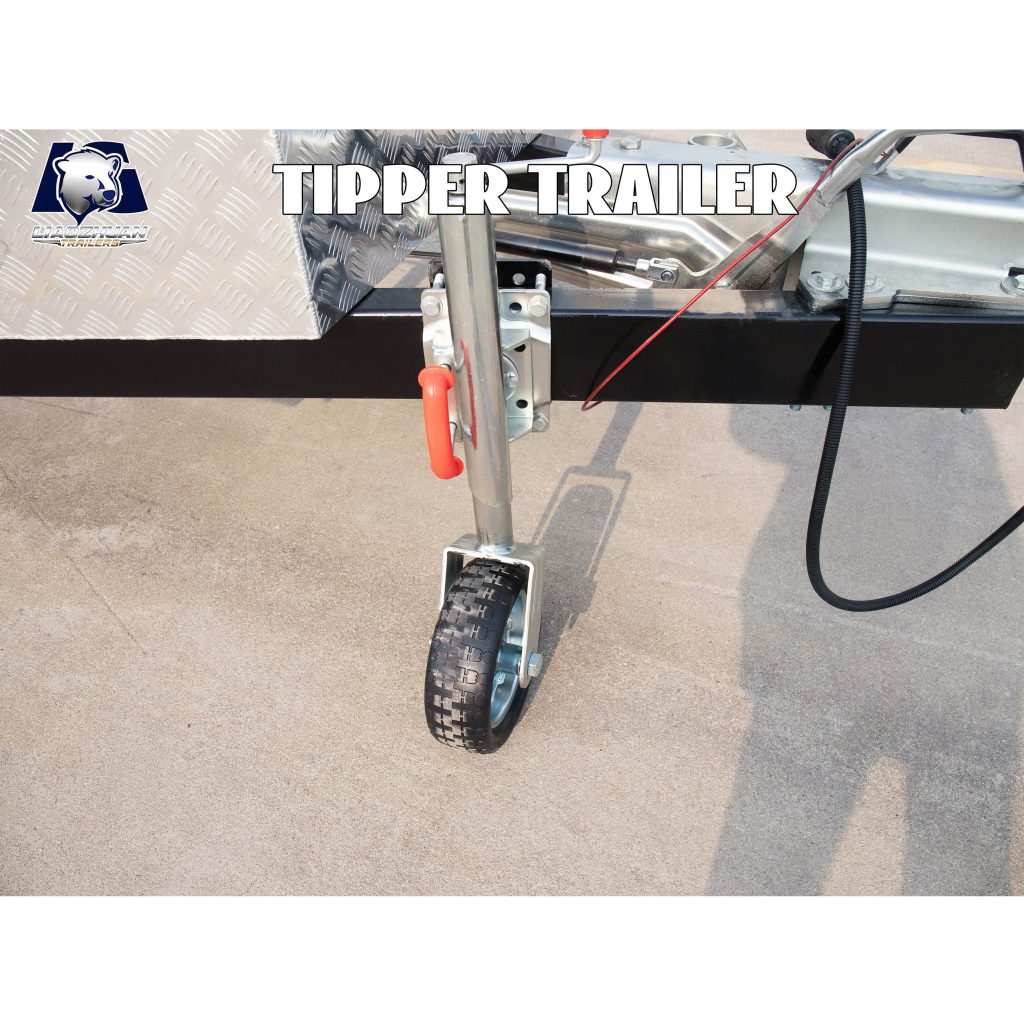

| Guide wheel | 10 inch |

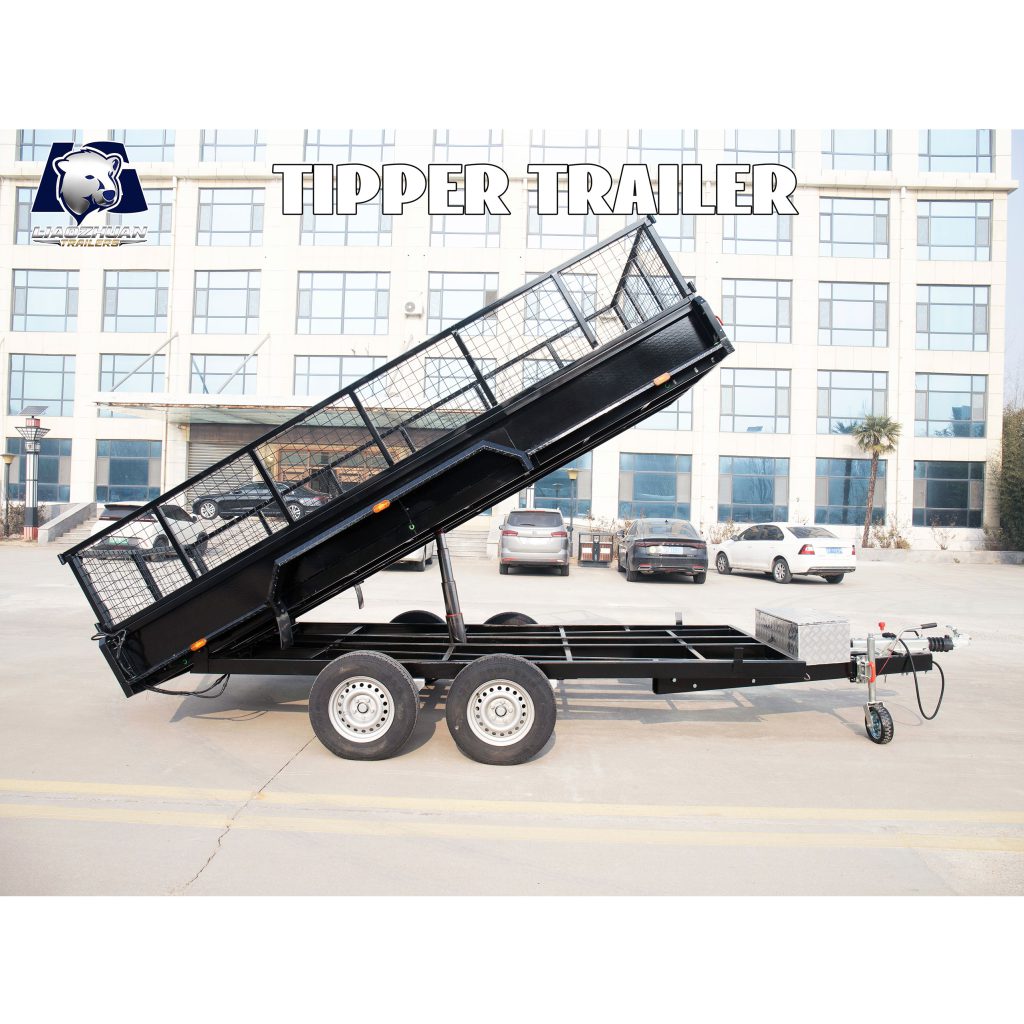

| Inclined fuselage | yes |
| Cage | 600mm |
| Suspension system | Torque shaft |

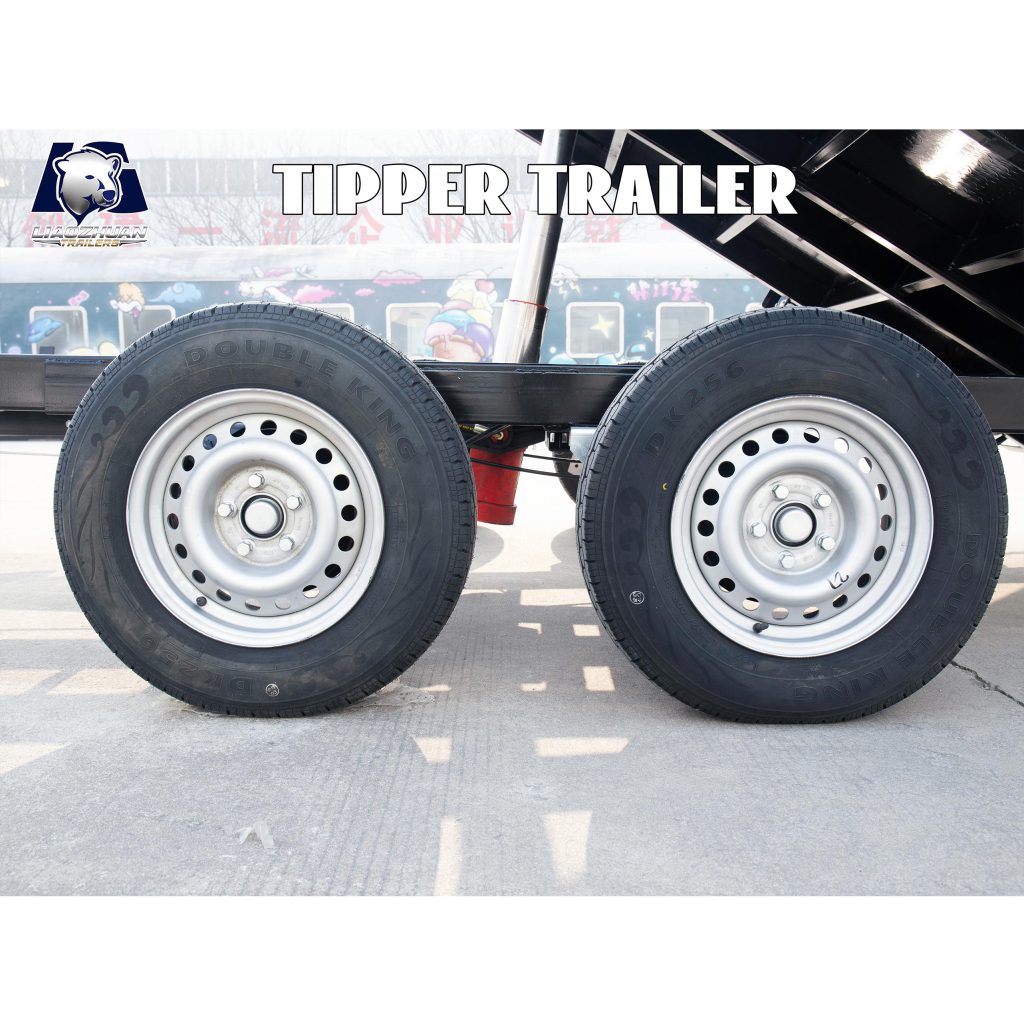

| Tire | 185R14LT |

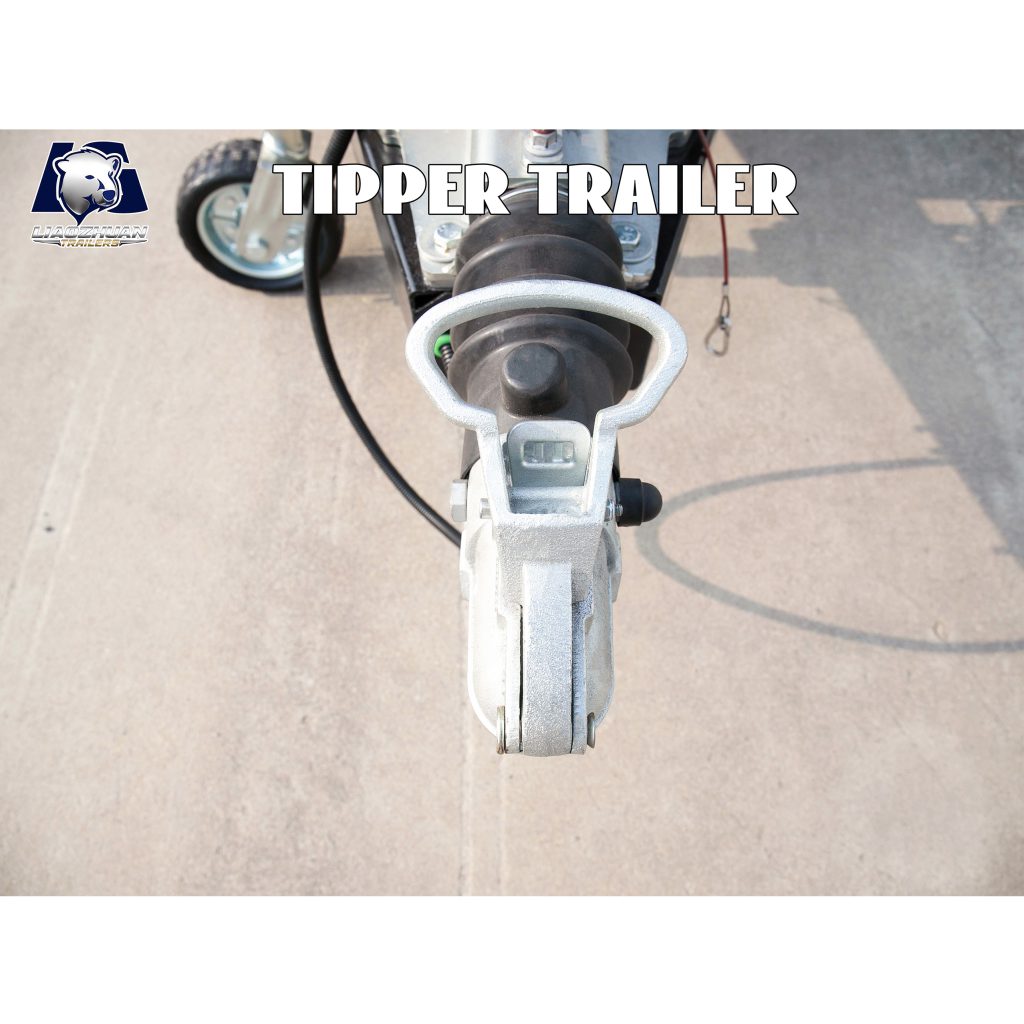

| Brake | Collision brake 3.5-ton braking force |
| Plug | 7 Pin, Circle shape |
| Optional toolbox | Aluminum |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
