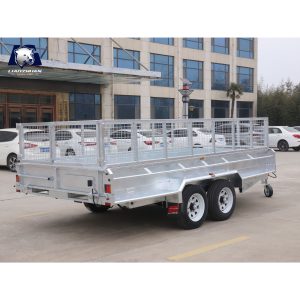

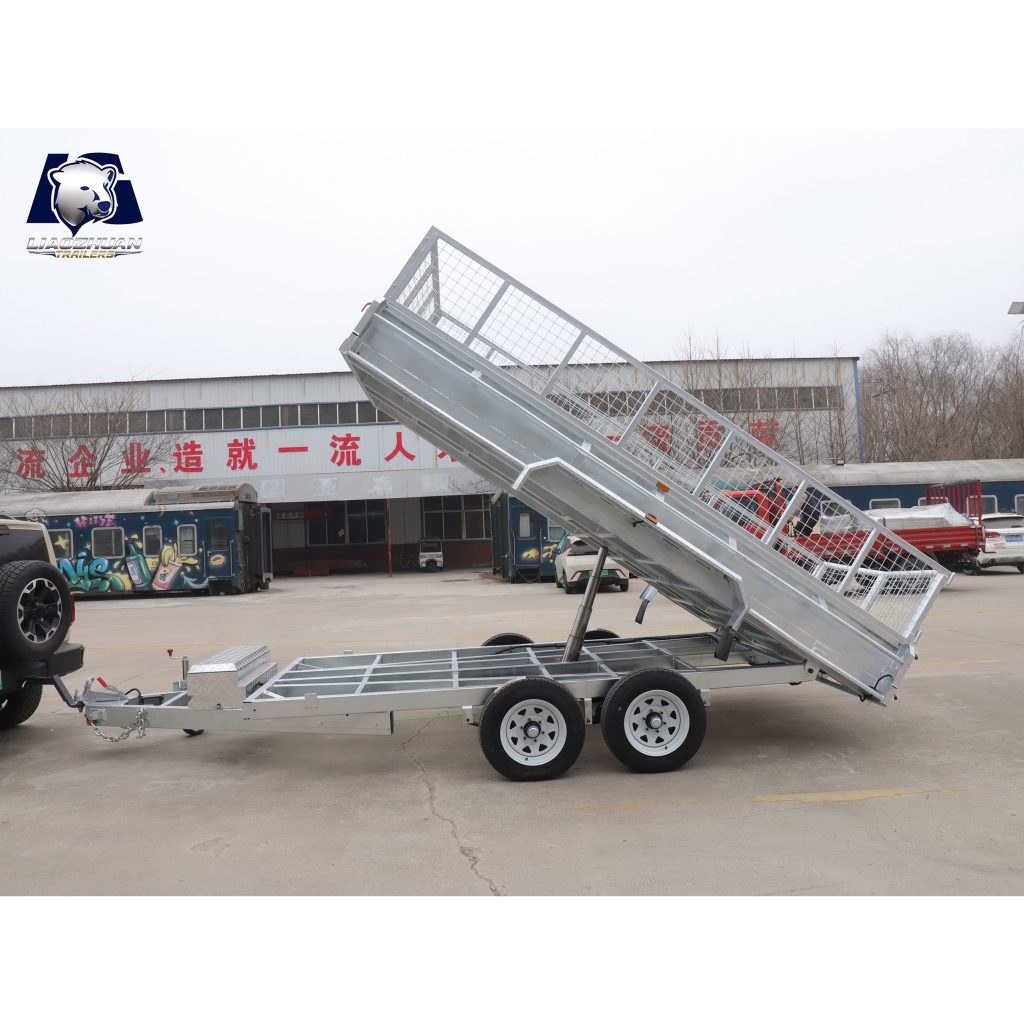

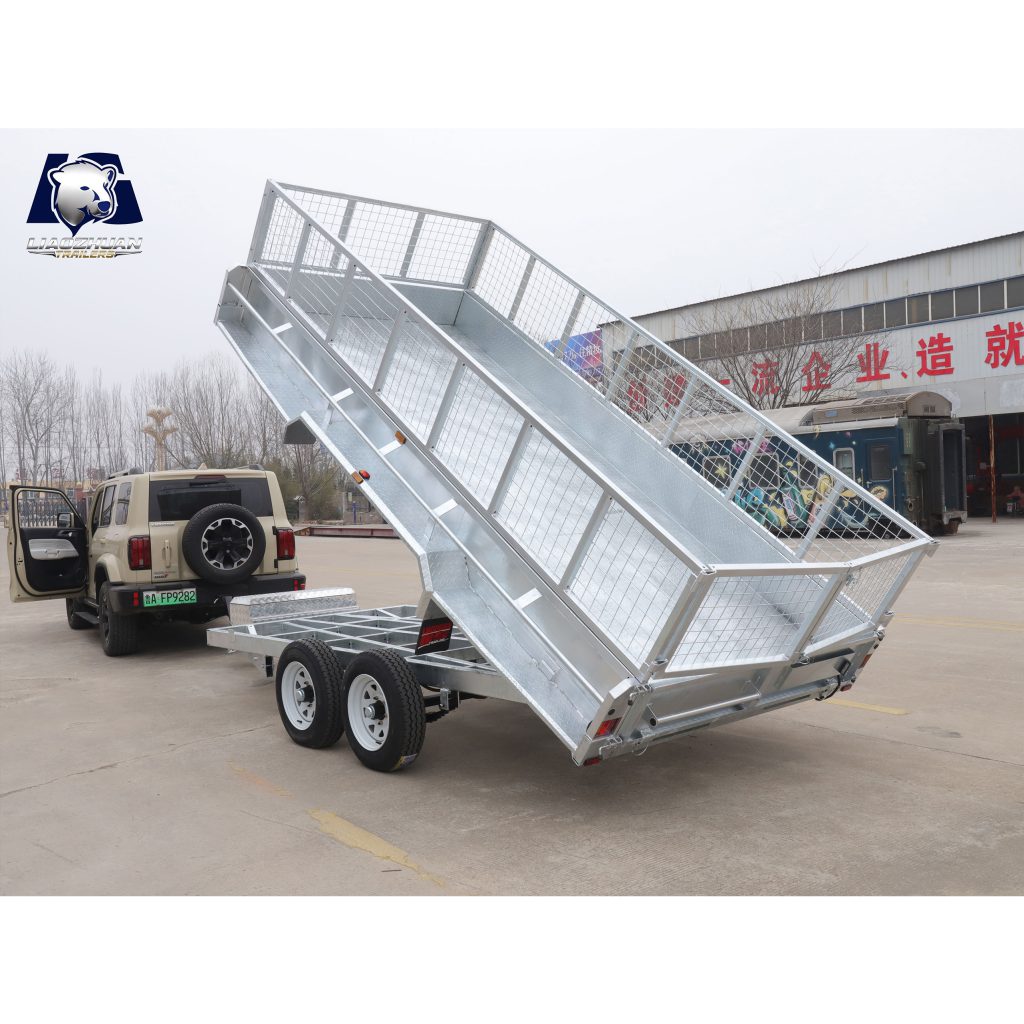

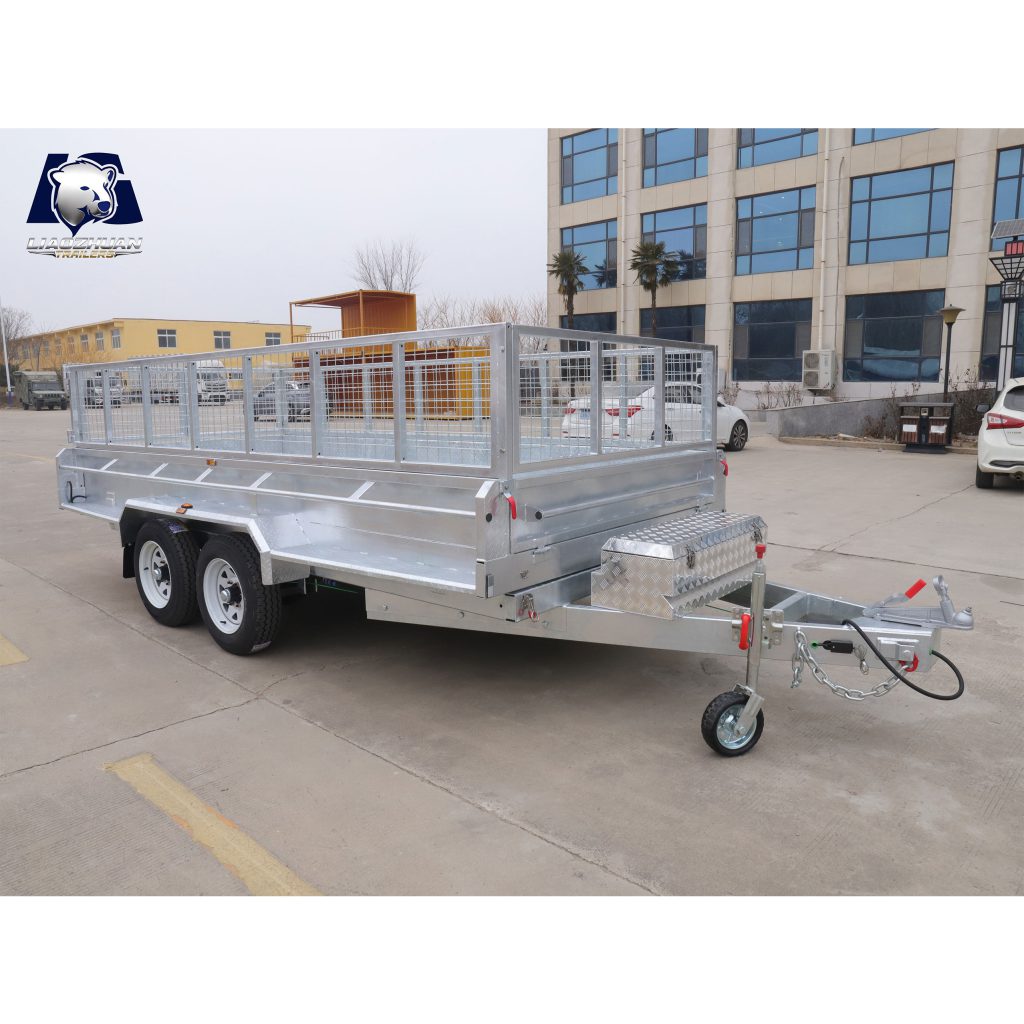

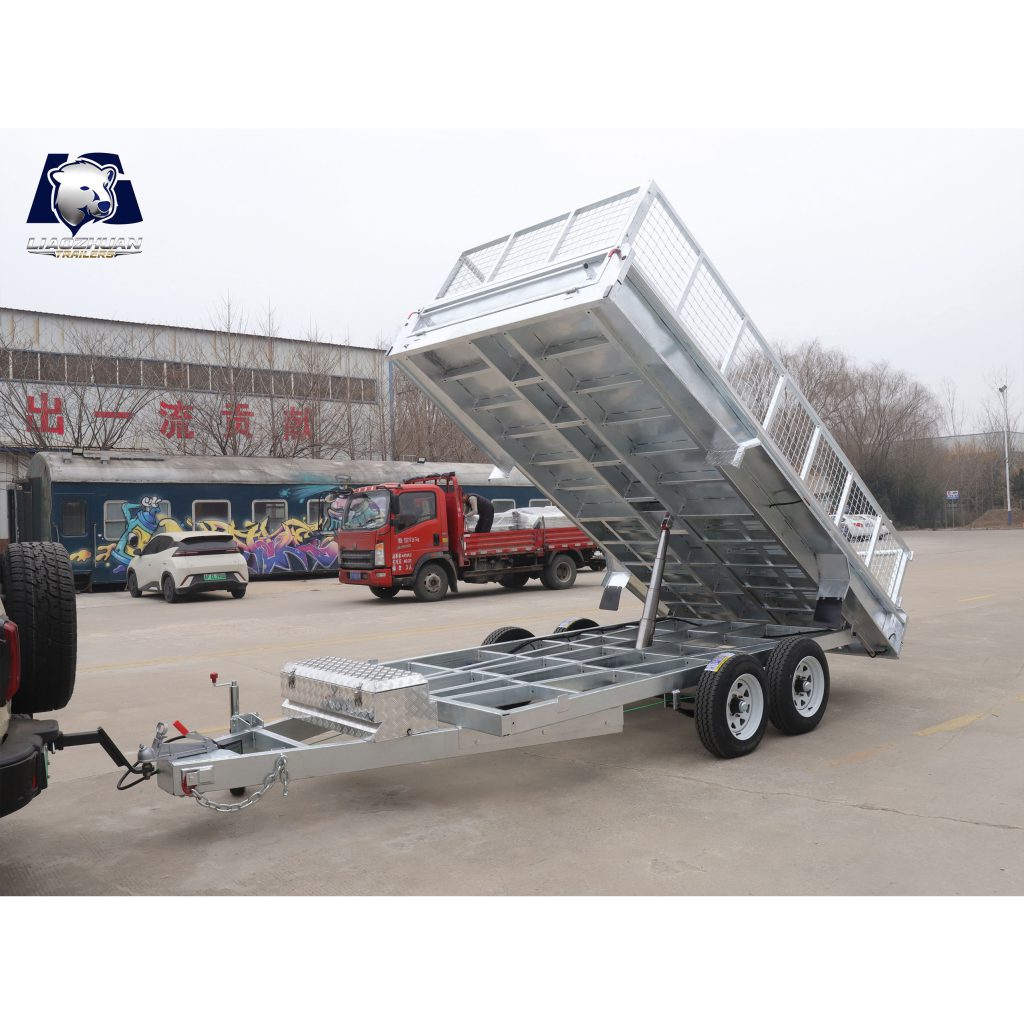

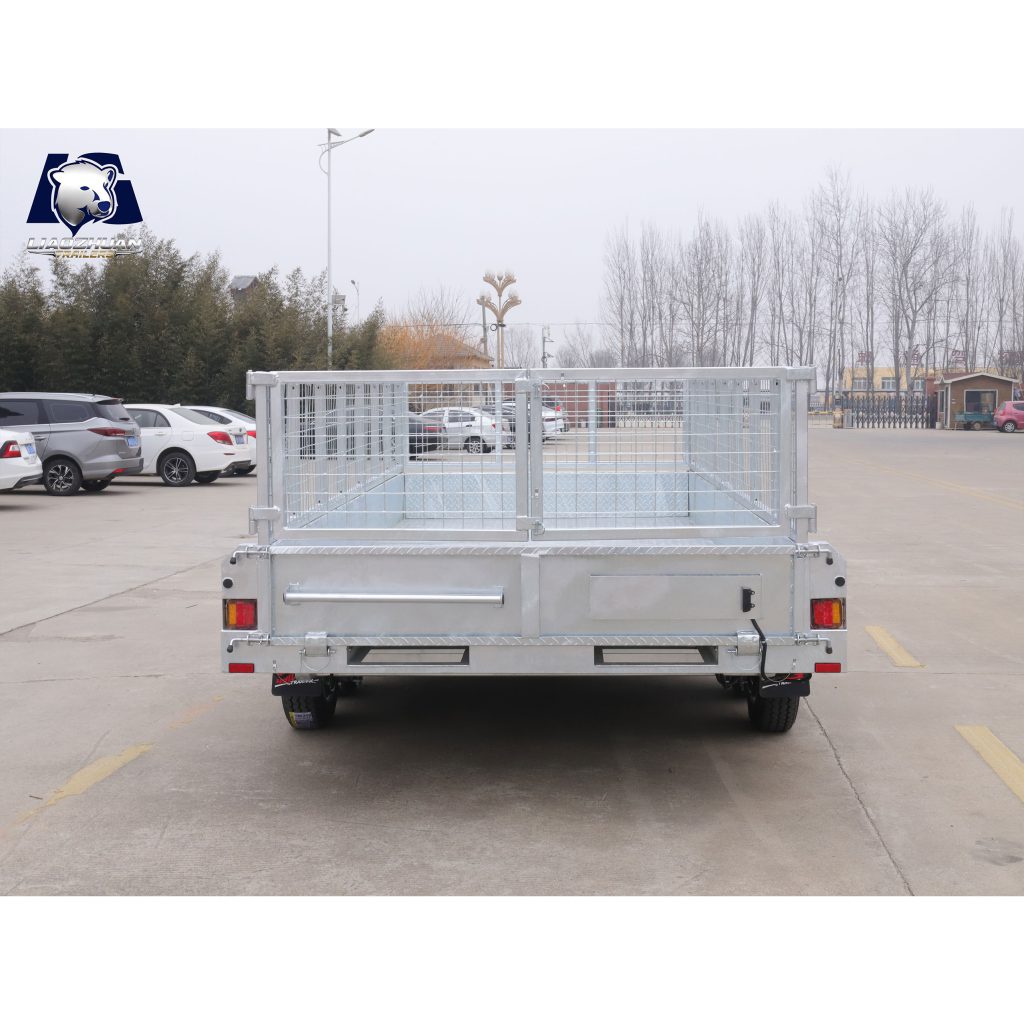

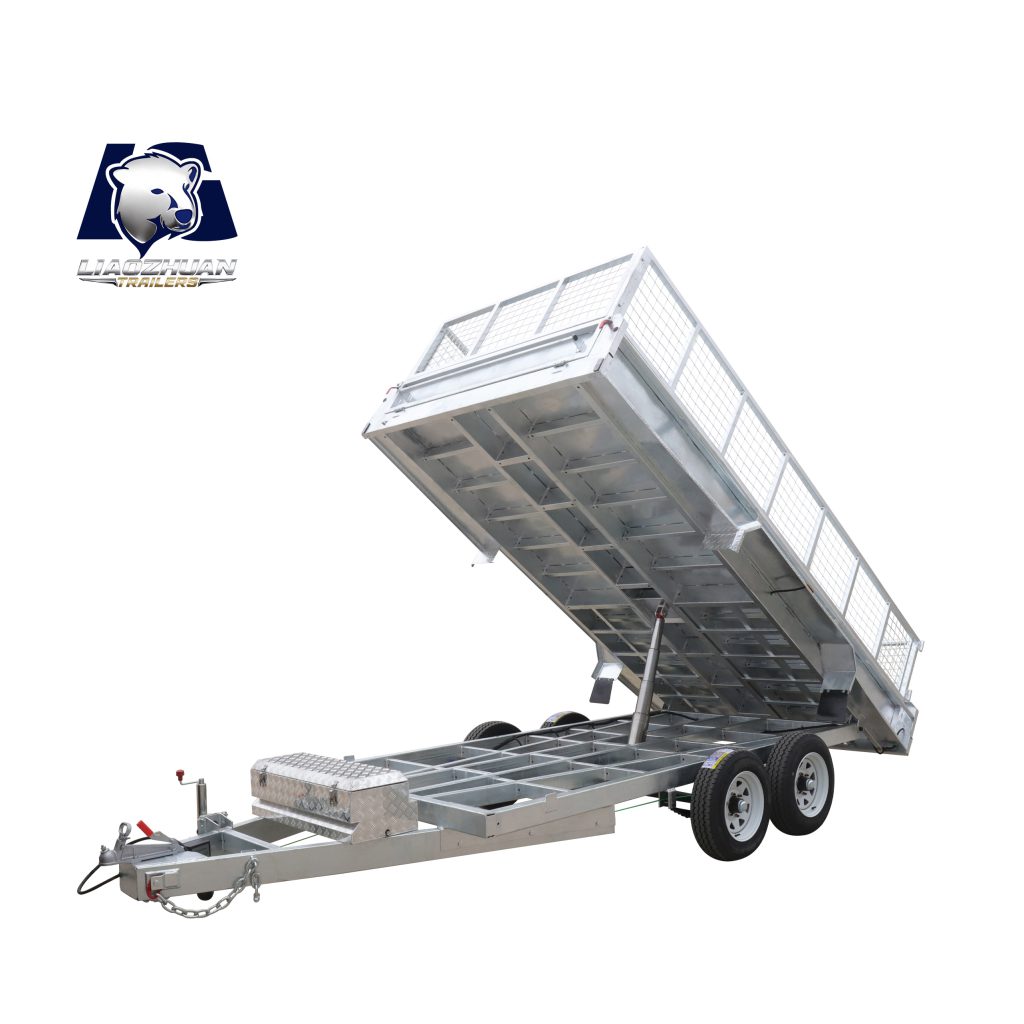

14×6 Hydraulic Tipper Galvanised Box Trailer 3500kg ATM (Electric Brake)
Request a quoteSpecifications
Technical specifications
| Trailer dimensions | 5740mm*2340mm*1660mm |
|---|---|

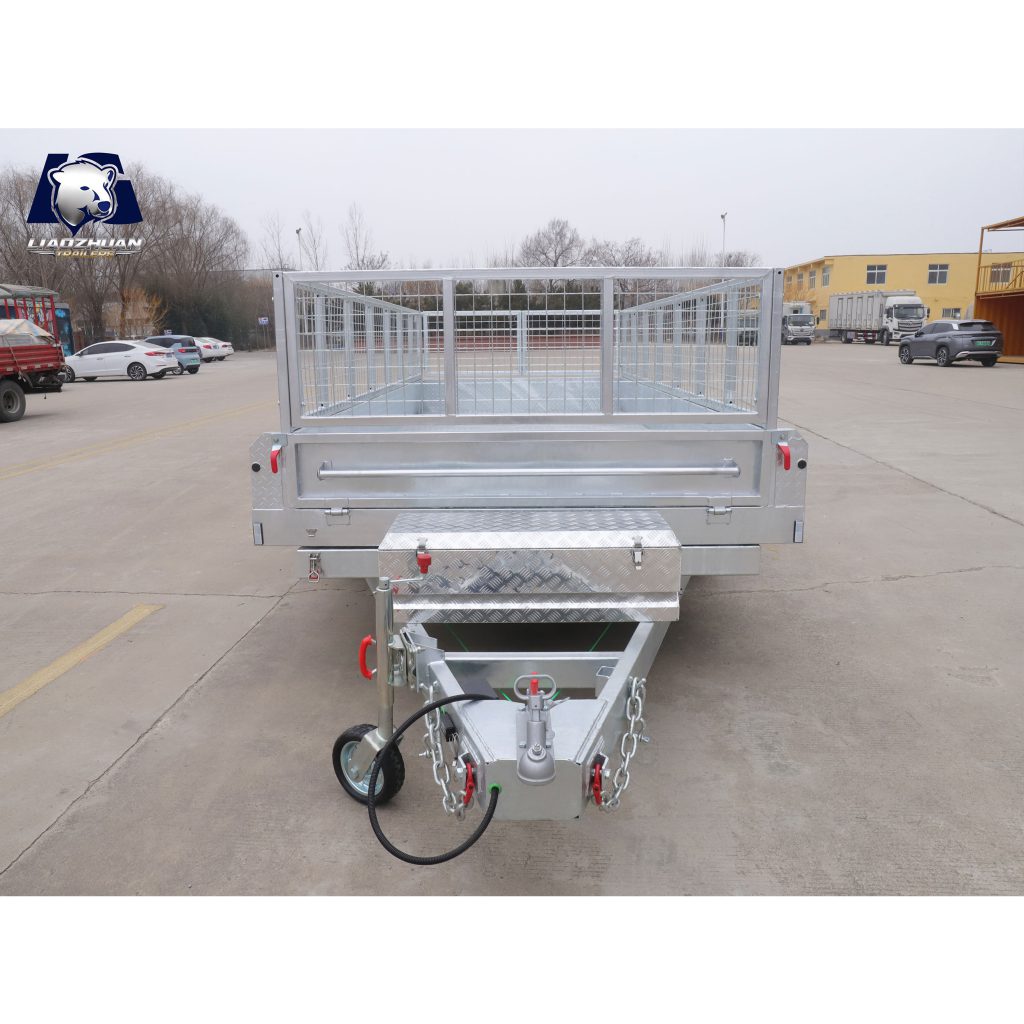

| Drawbar | 150*50 ，1500 long |
| Internal dimensions | 4220mm*1800mm*300mm+600mm |
| Surface treatment | Hot-dip galvanizing |
| Fully Welded Body & Chassis | yse |

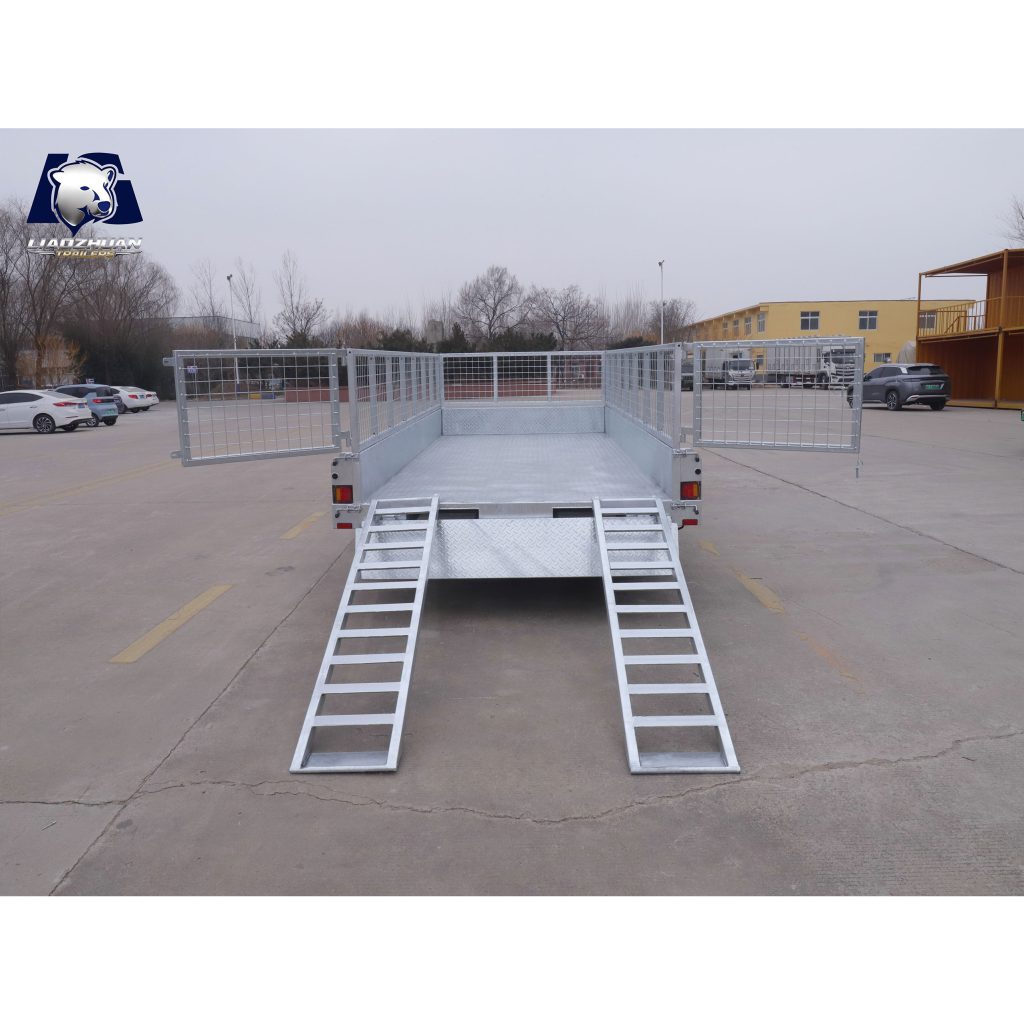

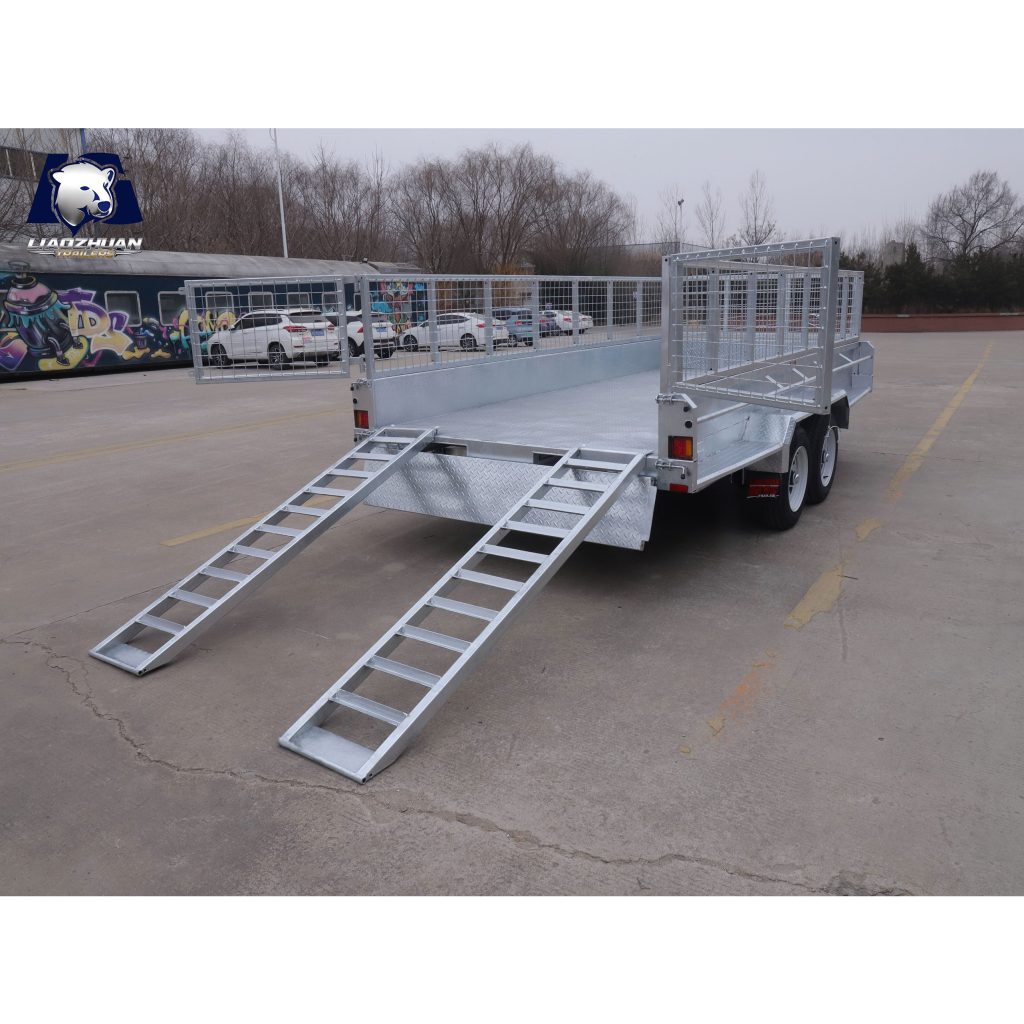

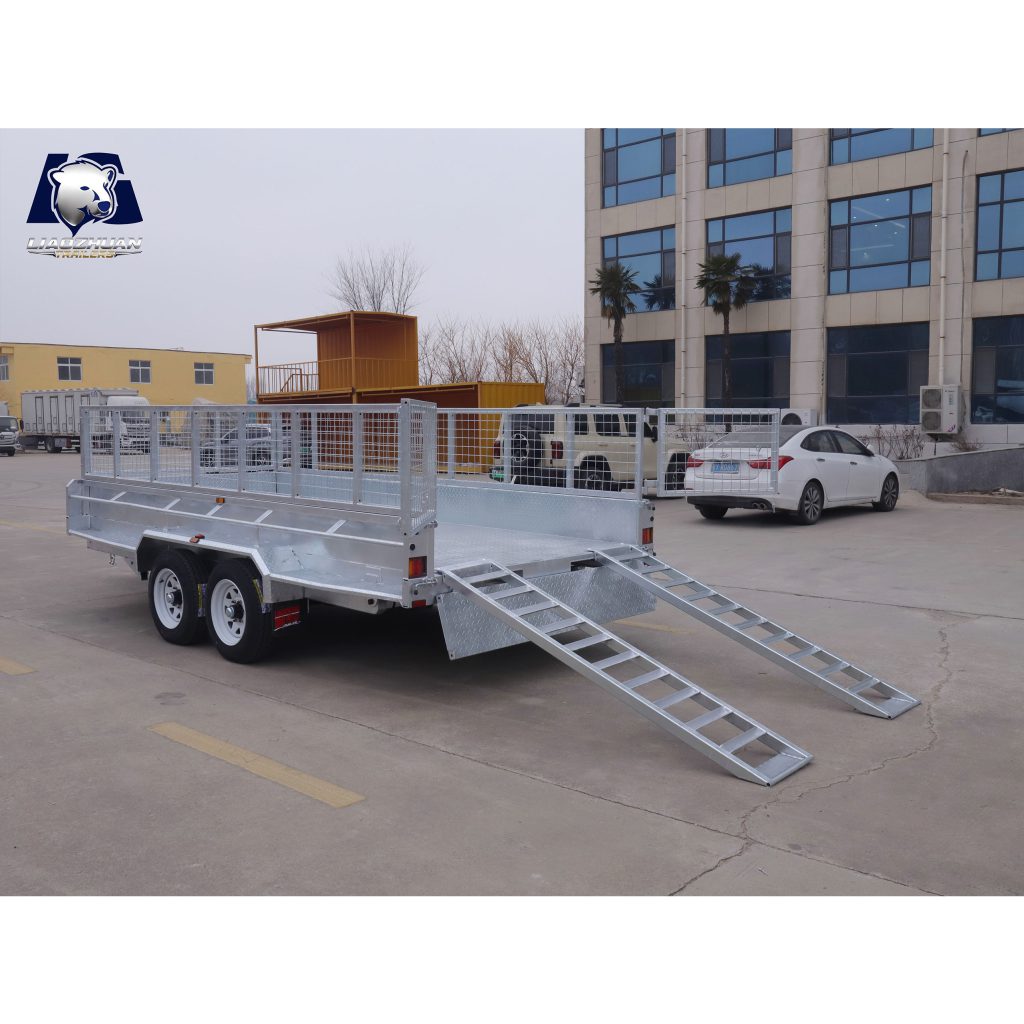

| Removable front and rear drop-down doors | yes |
| Color | Silver |
| Light | LED ADR light |
| Axis | 50 square steel bars |
| ATM | 3500kg |
| Rated load capacity | 1750kg |
| Weight of the skin | 1750kg |
| Guide wheel | 10 inch |
| Patterned panel | 2.5Pattern |
| Inclined fuselage | yes |

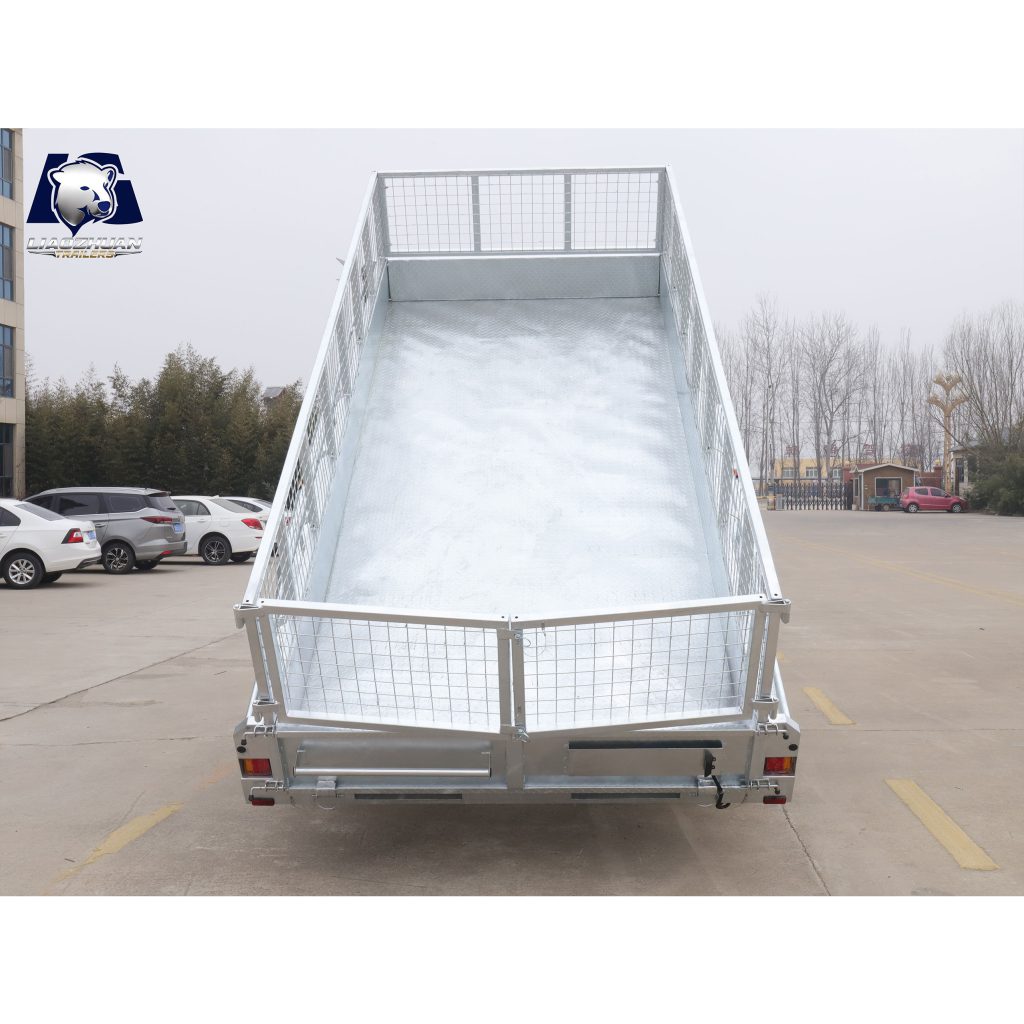

| Cage | 600mm |
| Spring | 8 pieces |
| Tire | 215R15LT |
| Brake | 12-inch dual electric brakes |
| Plug | 7 Pin, Flat |
| Optional toolbox | Aluminum |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
