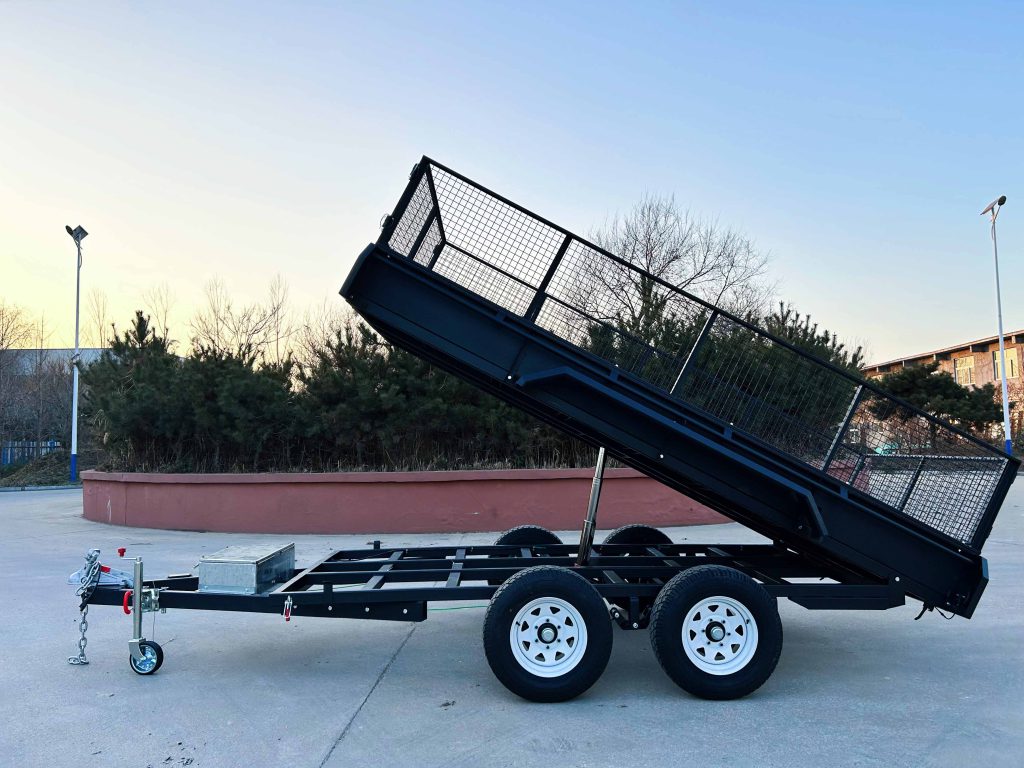

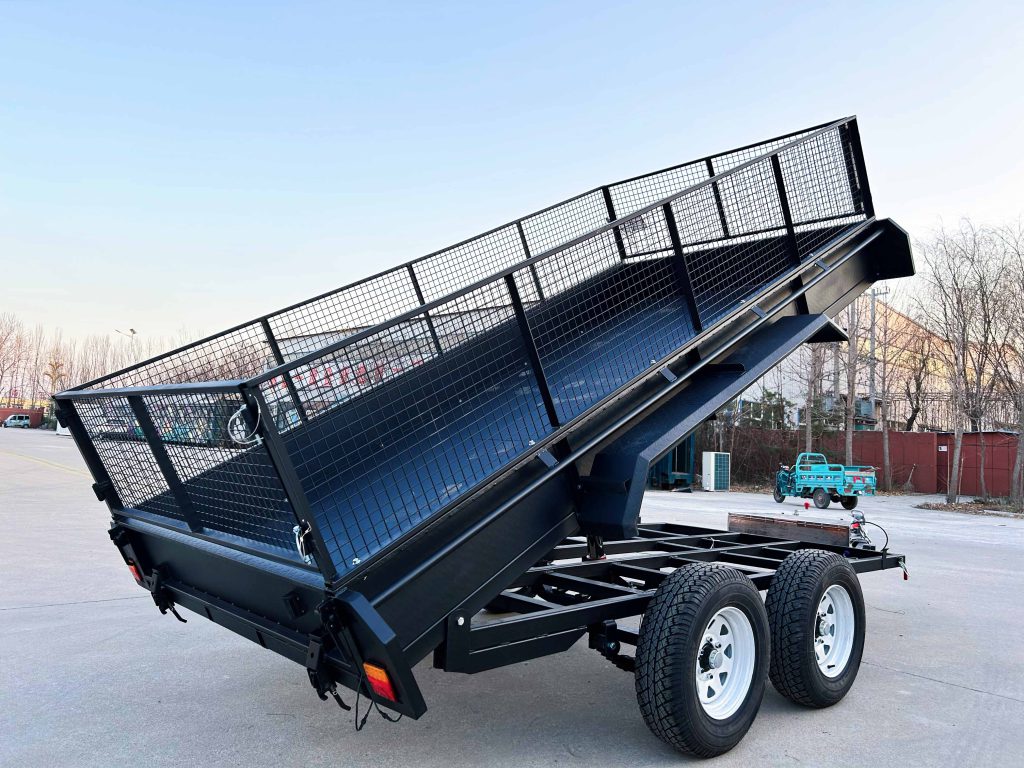

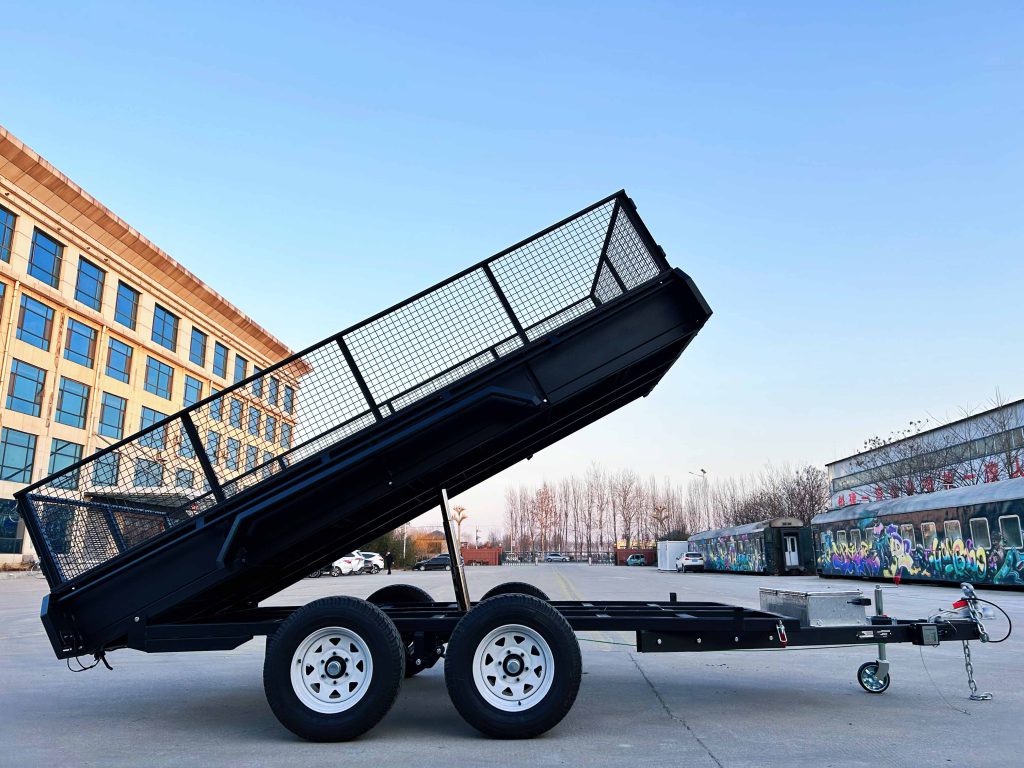

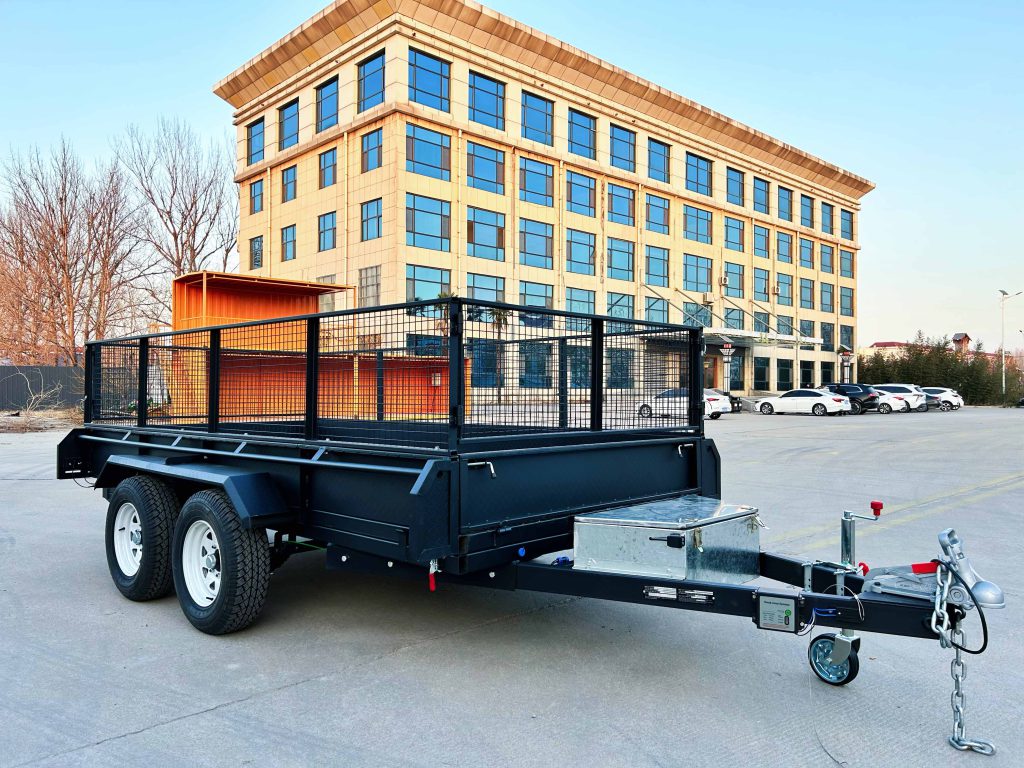

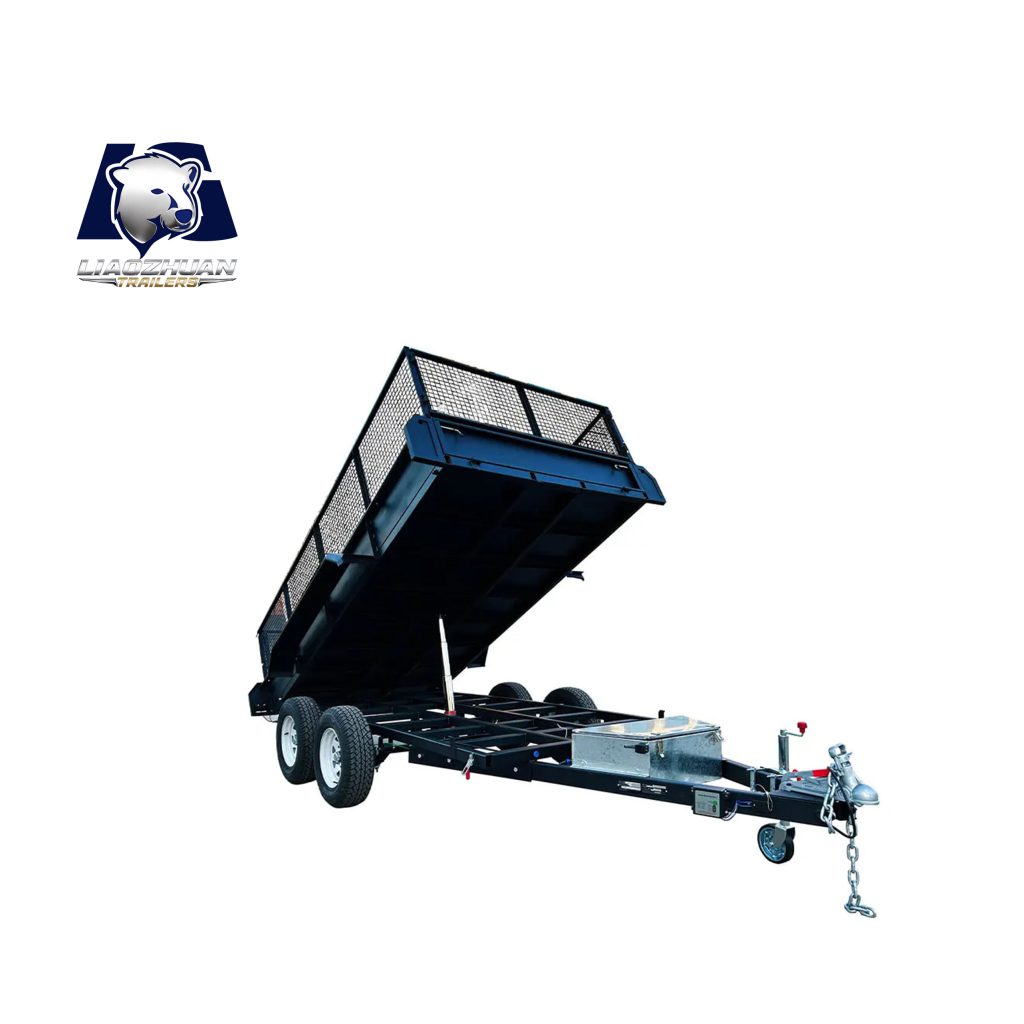

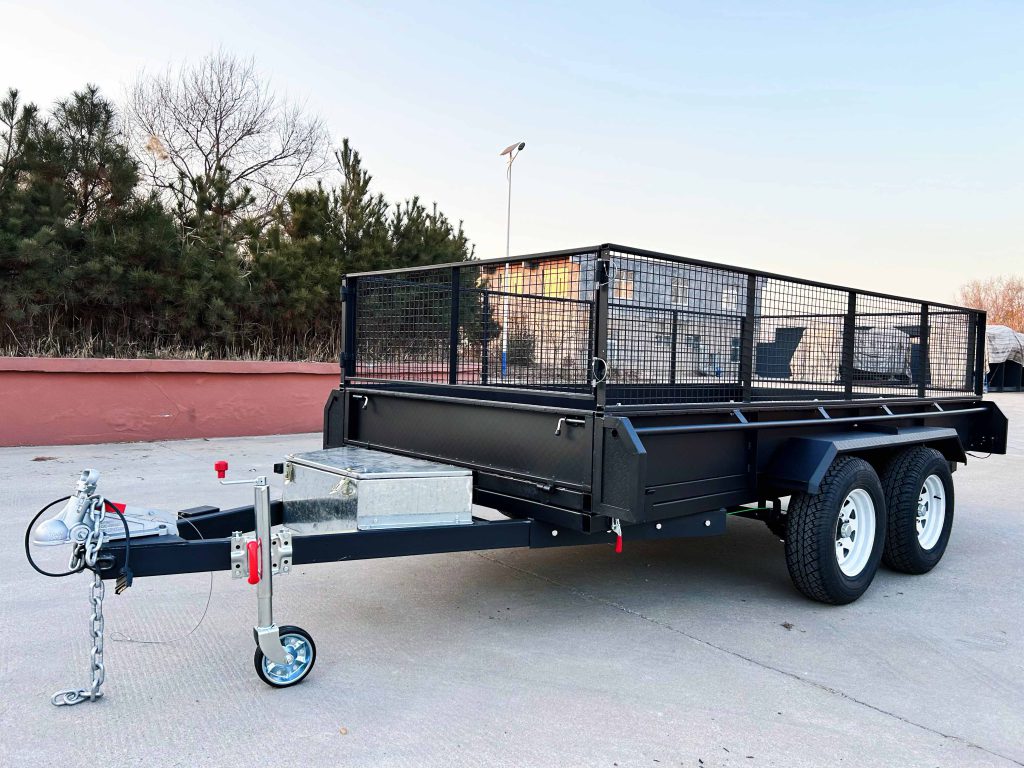

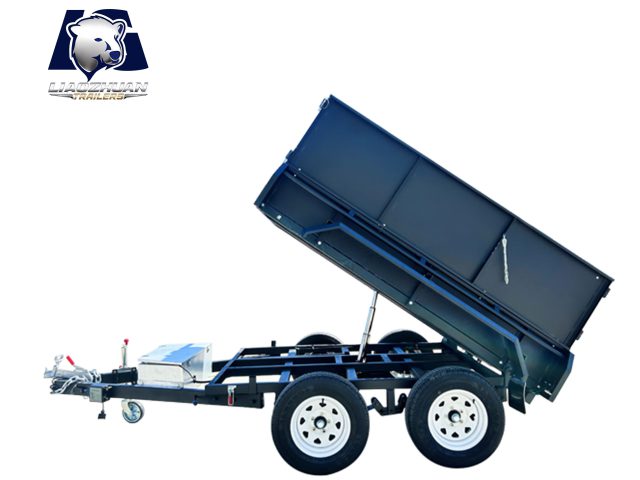

13×6 Hydraulic Tipper Box Trailer 4500kg ATM (Electric Brake)
Request a quoteSpecifications
Technical specifications
| Note | Trailer size 13 'x6' |
|---|---|
| Note | Drawbar 1500mm 120*60*3.75 mm |
| Note | Internal dimensions 4000 mm x1830 mm |
| Note | Surface treatment spray paint |
| Note | Color black |
| Note | Lamp LED ADR lamp |
| Note | Axis 60 pieces of steel bars |
| Note | The specified load 4500 kg |
| Note | tare |
| Note | Guide wheel 10" |
| Note | Fully welded yes |
| Note | Chassis frame 70*50*3.75 square tube |
| Note | Floor 2.5 pattern |
| Note | Bar plate 2.5 pattern |
| Note | Mud tile 2.5 pattern |
| Note | Hydraulic cylinder 4 knots 1200 stroke (Max 3T) |
| Note | Side 300mm 2.5mm fold |
| Note | Cage 600 mm 30x30 mm |
| Note | Plate storage 9 |
| Note | Beam 3.2 High strength bending parts |
| Note | Wheels and tires 235/70R15LT |
| Note | Brake 12 inch electric drum brakes |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
