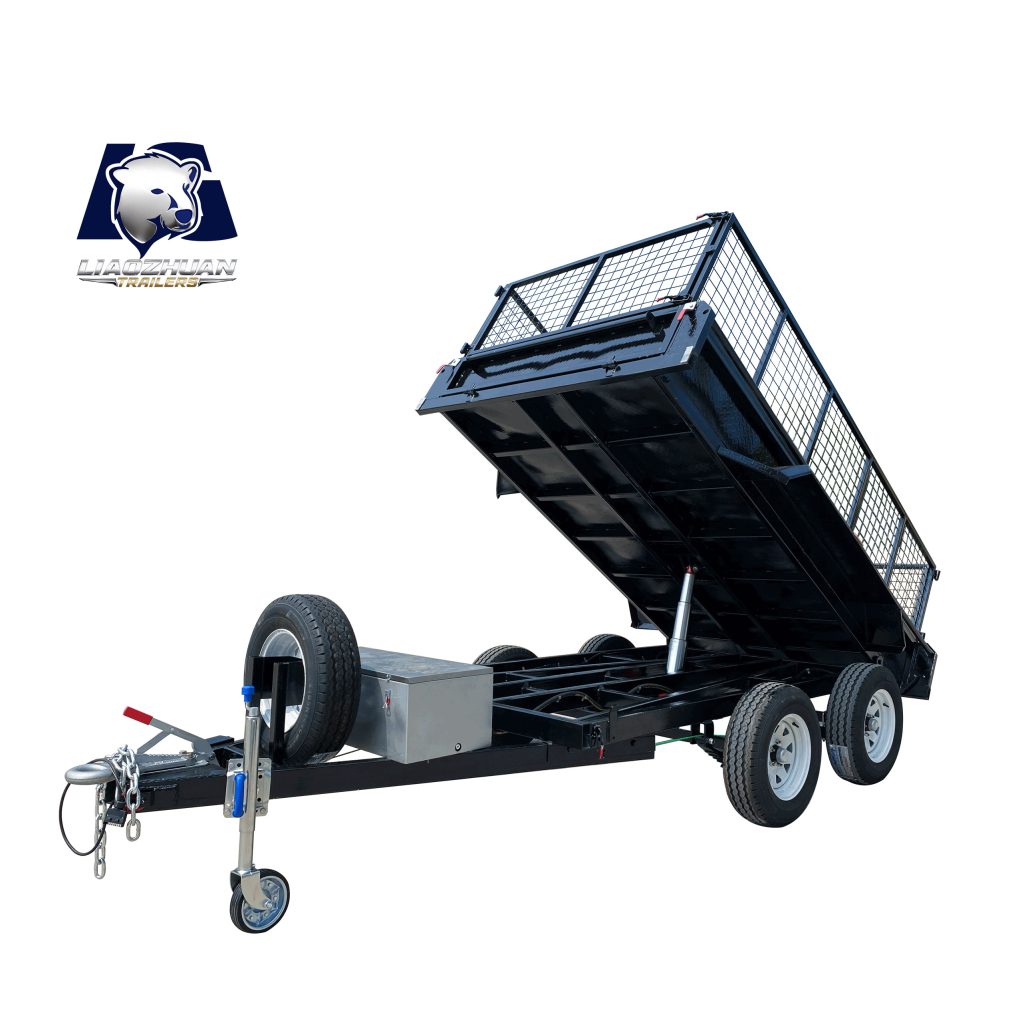

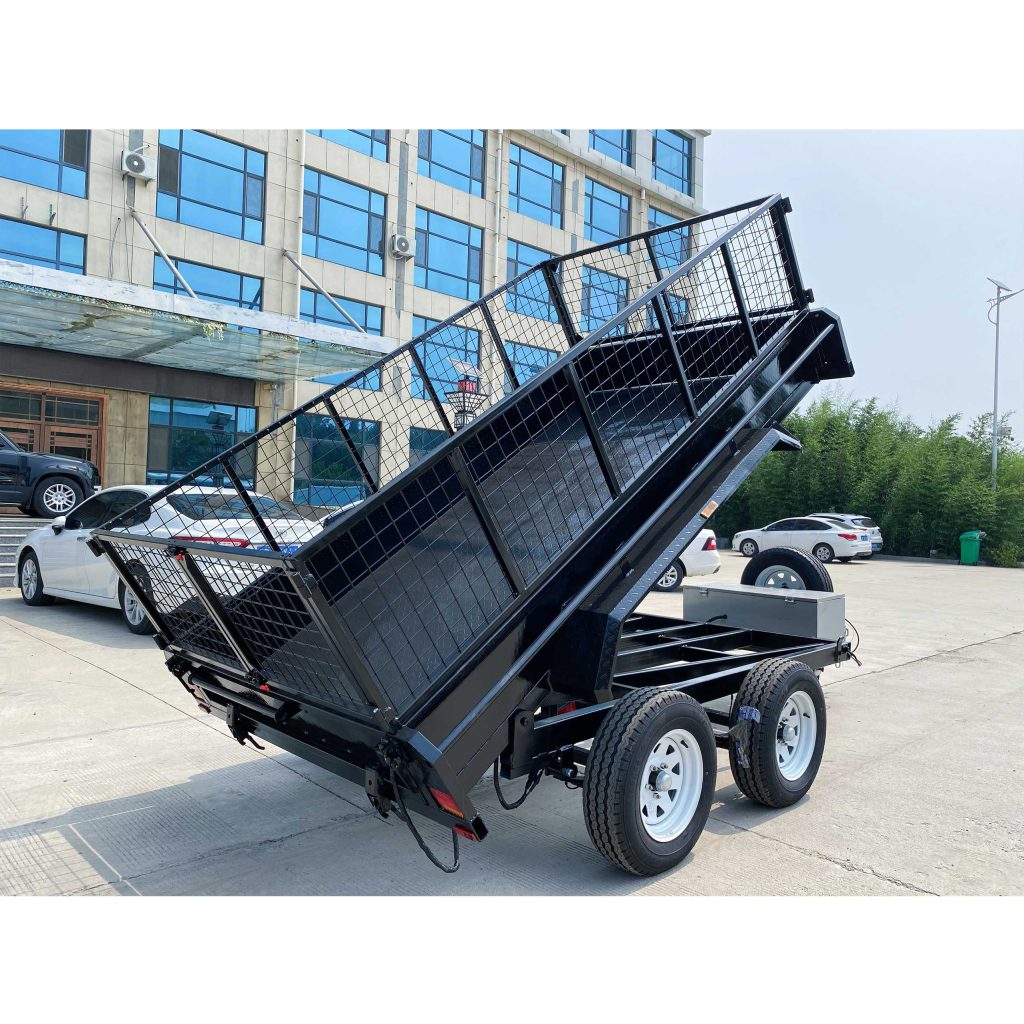

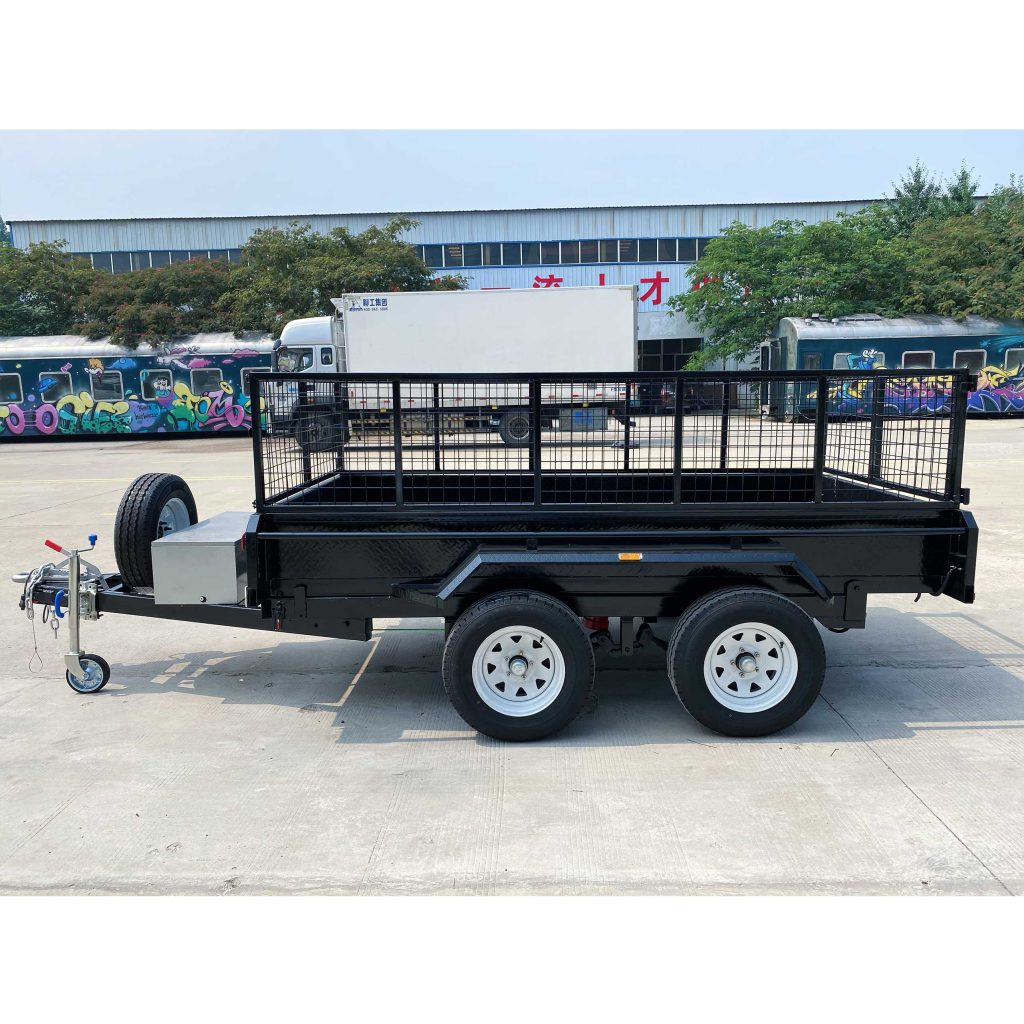

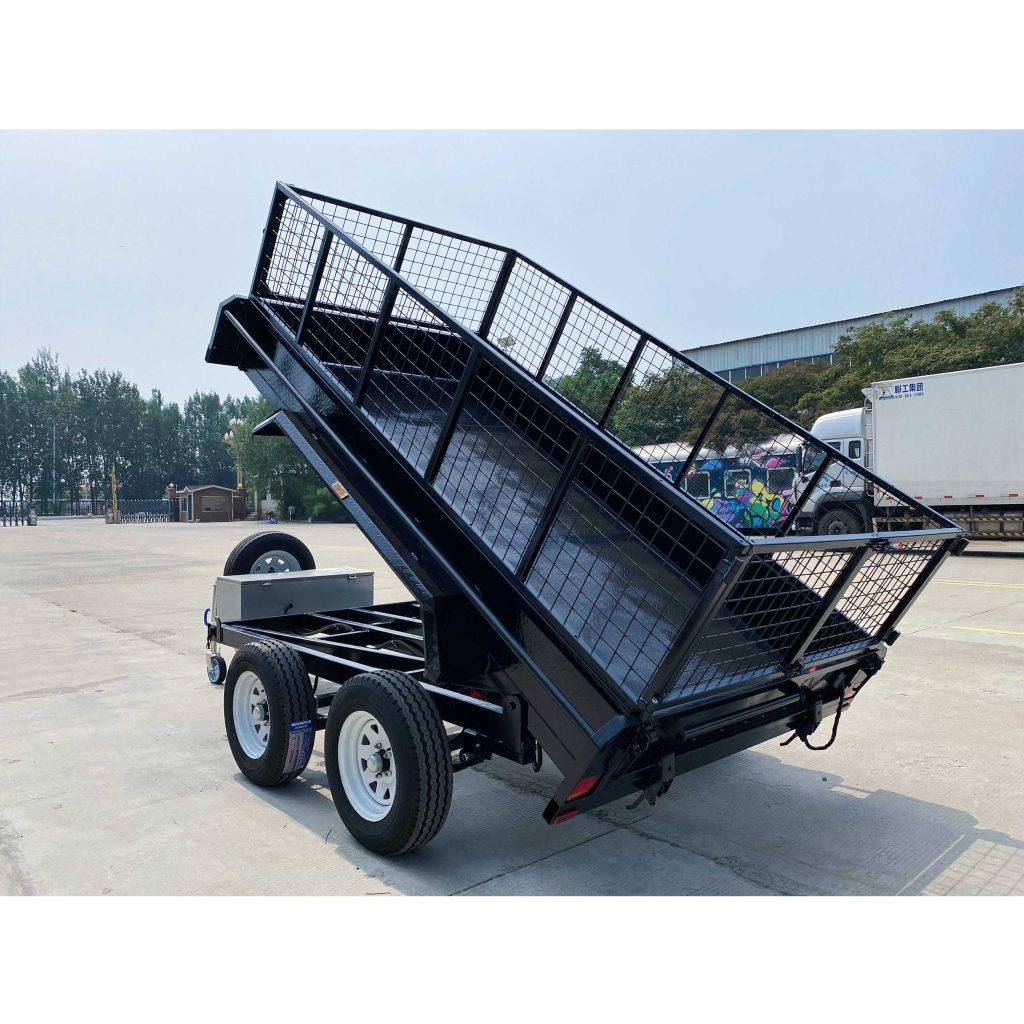

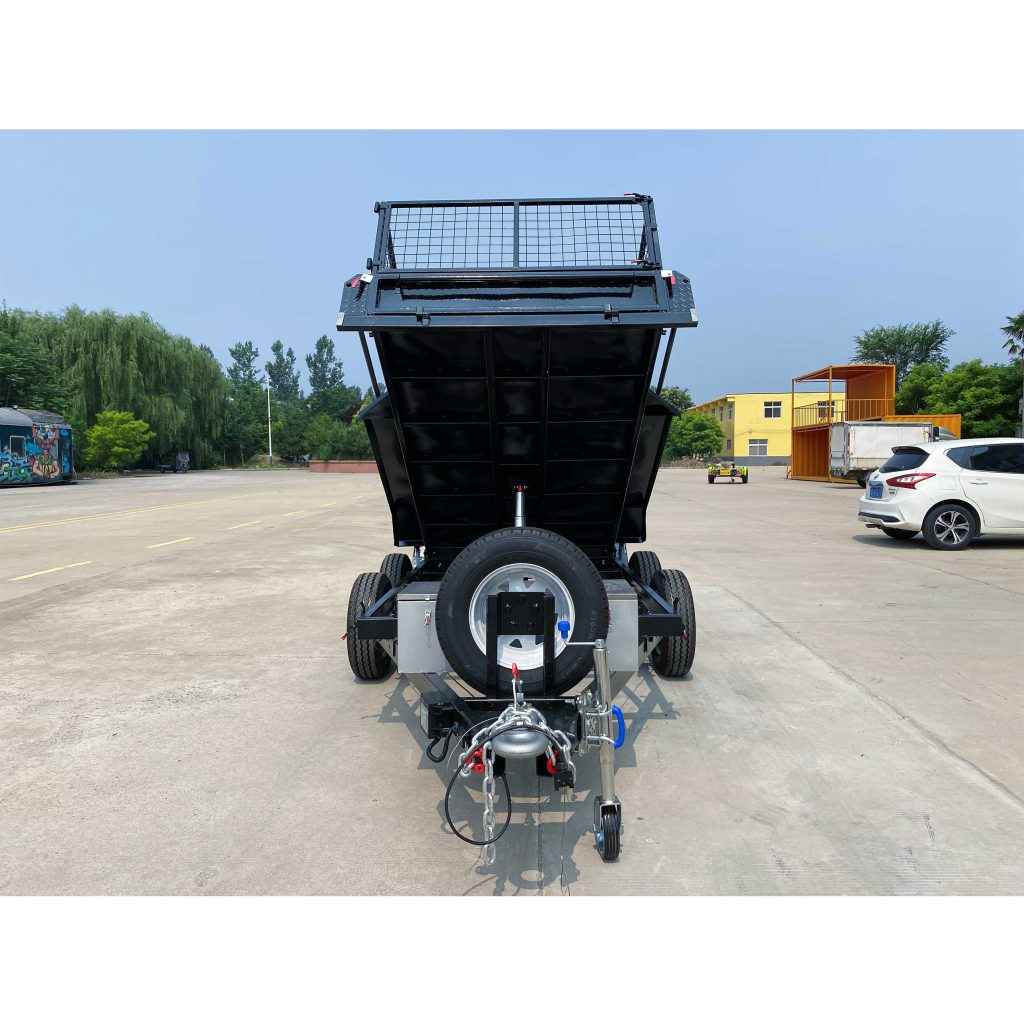

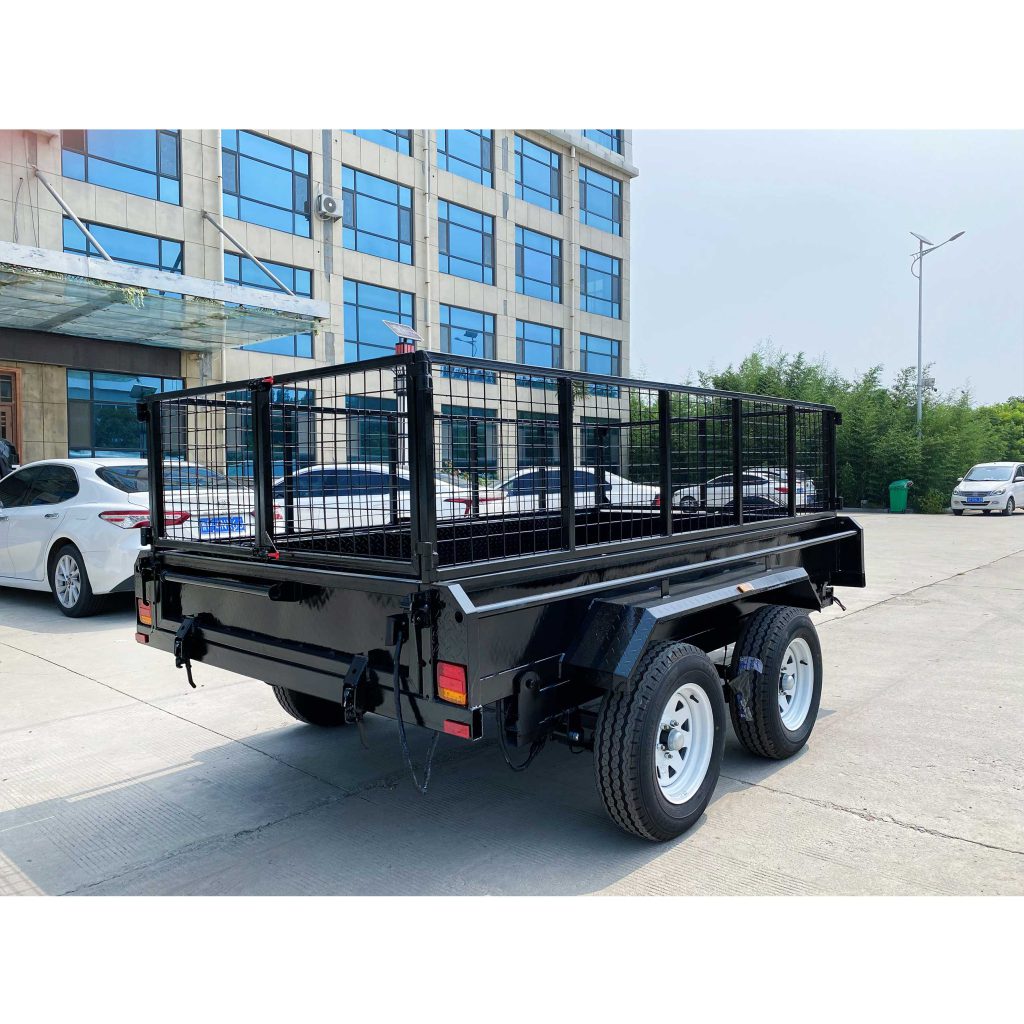

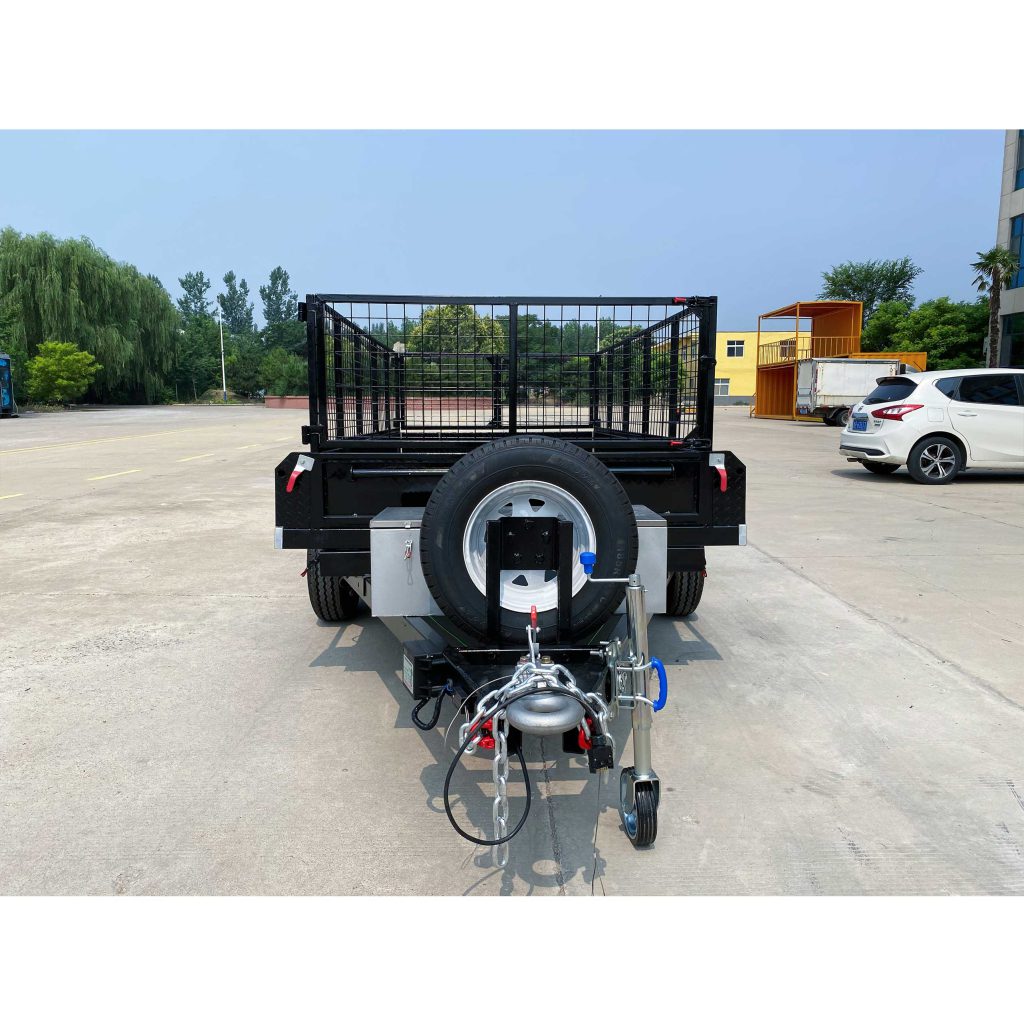

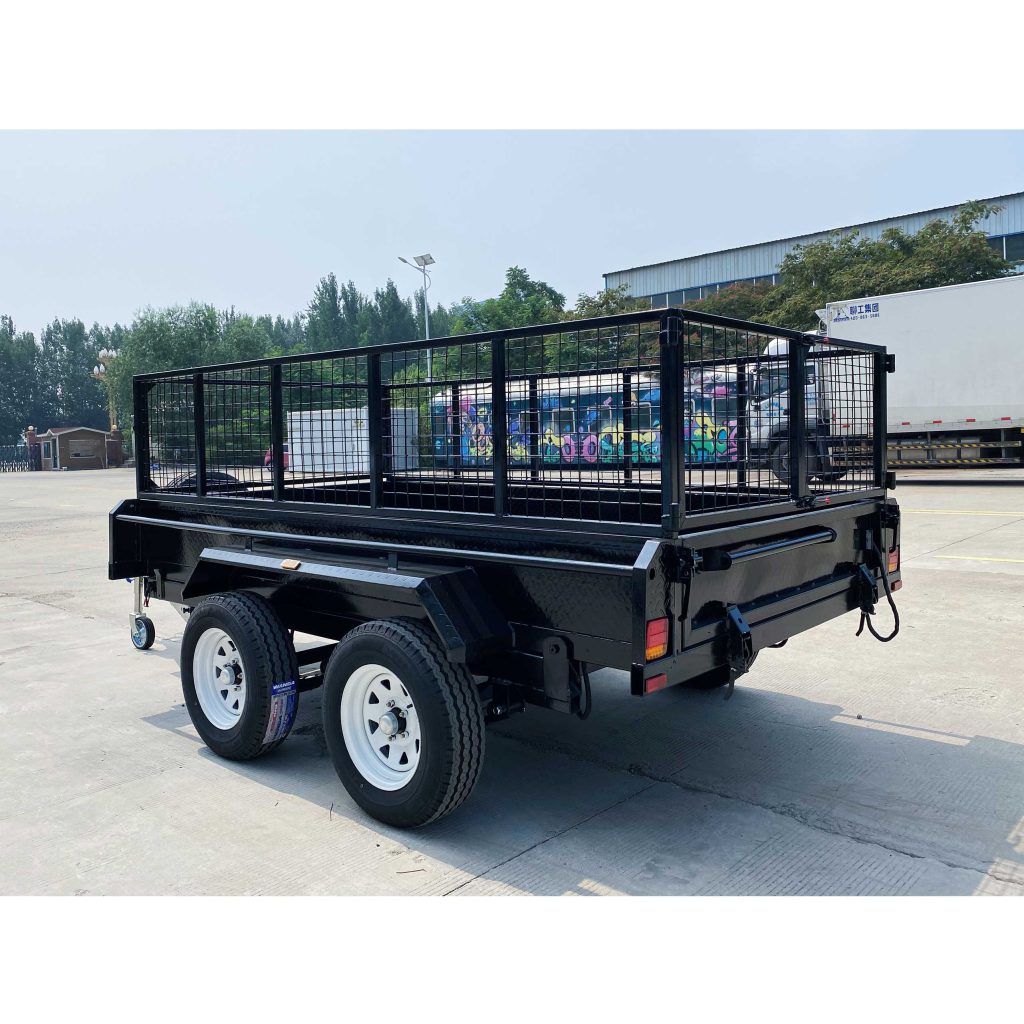

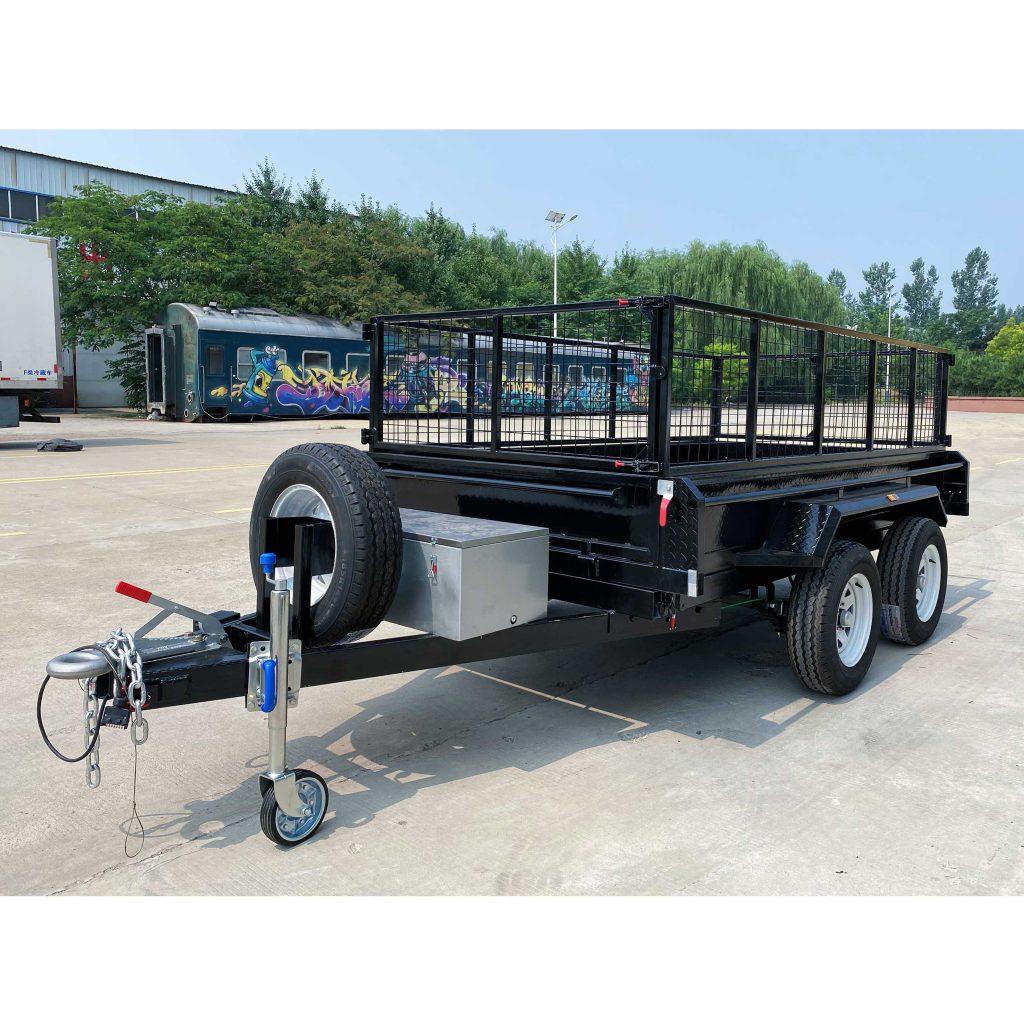

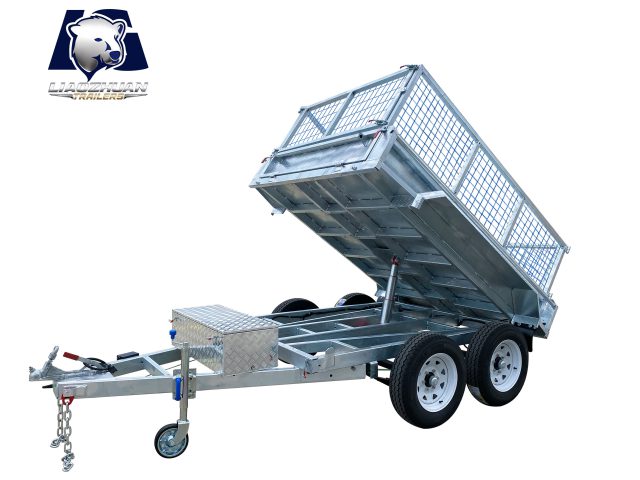

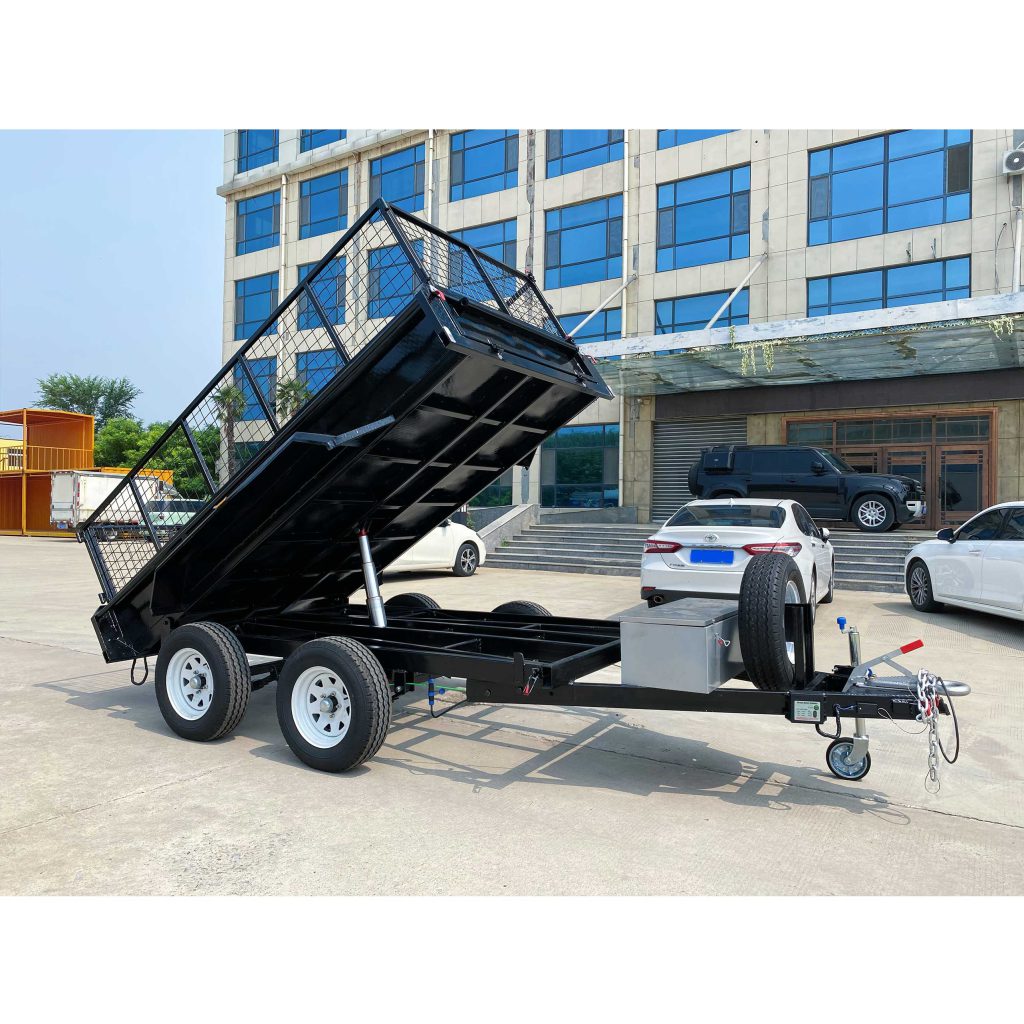

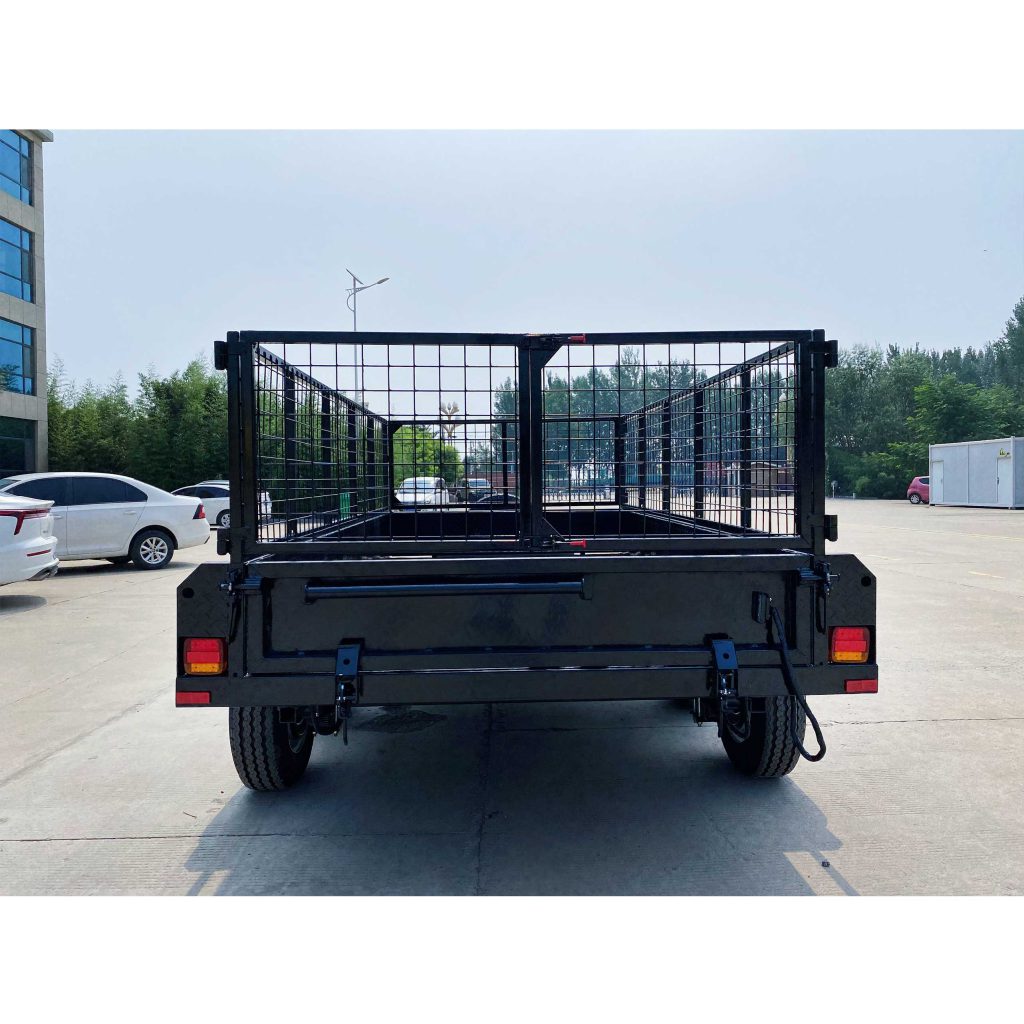

10×5 Hydraulic Tipper Box Trailer 3500kg ATM (Electric Brake)
Request a quoteSpecifications
Technical specifications
| Trailer Size | 4650mm*2050mm*1550mm |
|---|---|
| Traction bar | 120*60*4,1500 long |
| Internal Size | 3045mm*1530mm*300mm+600mm |
| Surface Finish | Hot Dipped Galvanised /Spray painting |
| Colour | Silver /black |
| Lights | LED ADR Light |
| Axle | 50mm Solid |
| ATM | 3500kg |
| Rated load capacity | 2320kg |
| Weight of the skin | 1140kg |
| Fully welded | Yes |
| Pattern board | 2.3 pattern |
| Tilted fuselage | 45° |
| Cage | 40*40*3 Net: 63*60*4 |
| Tire | 215 |
| Brake | 12-inch dual-axis electric brake |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
