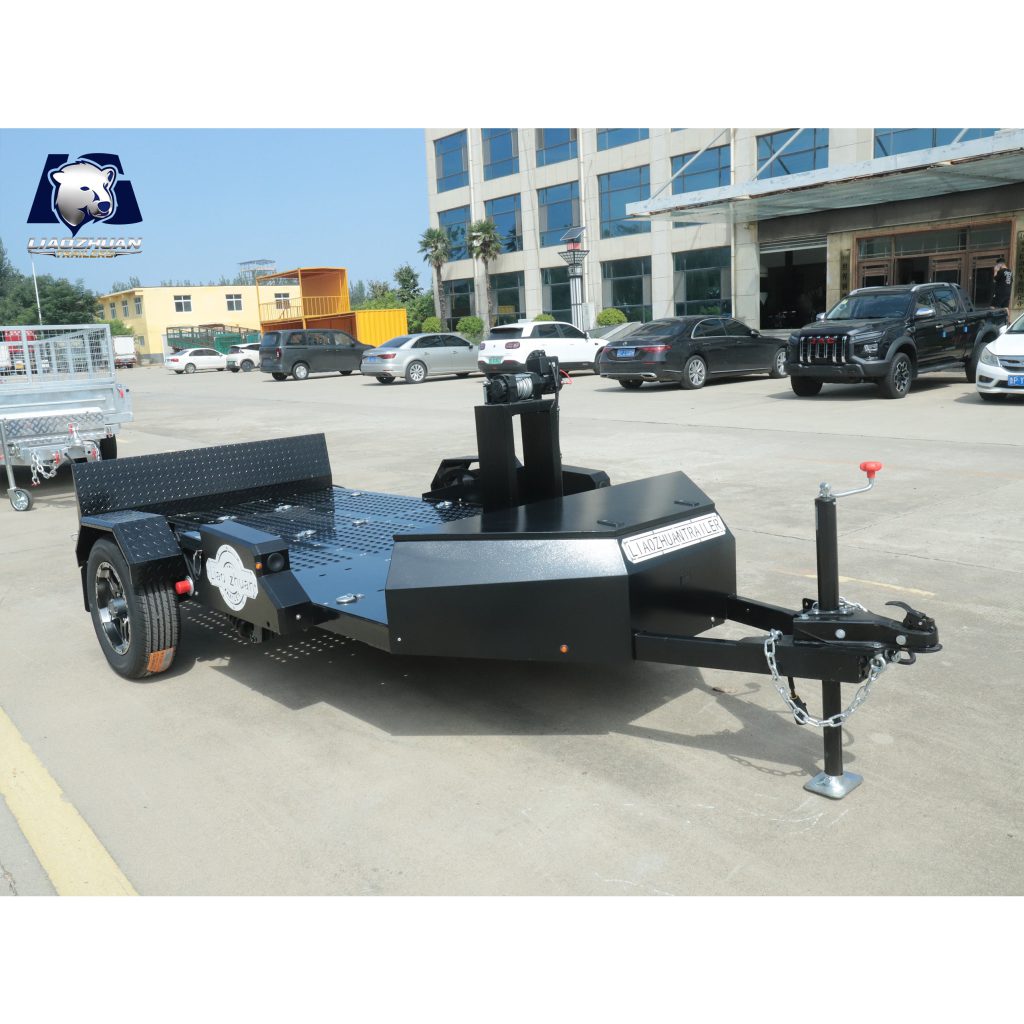

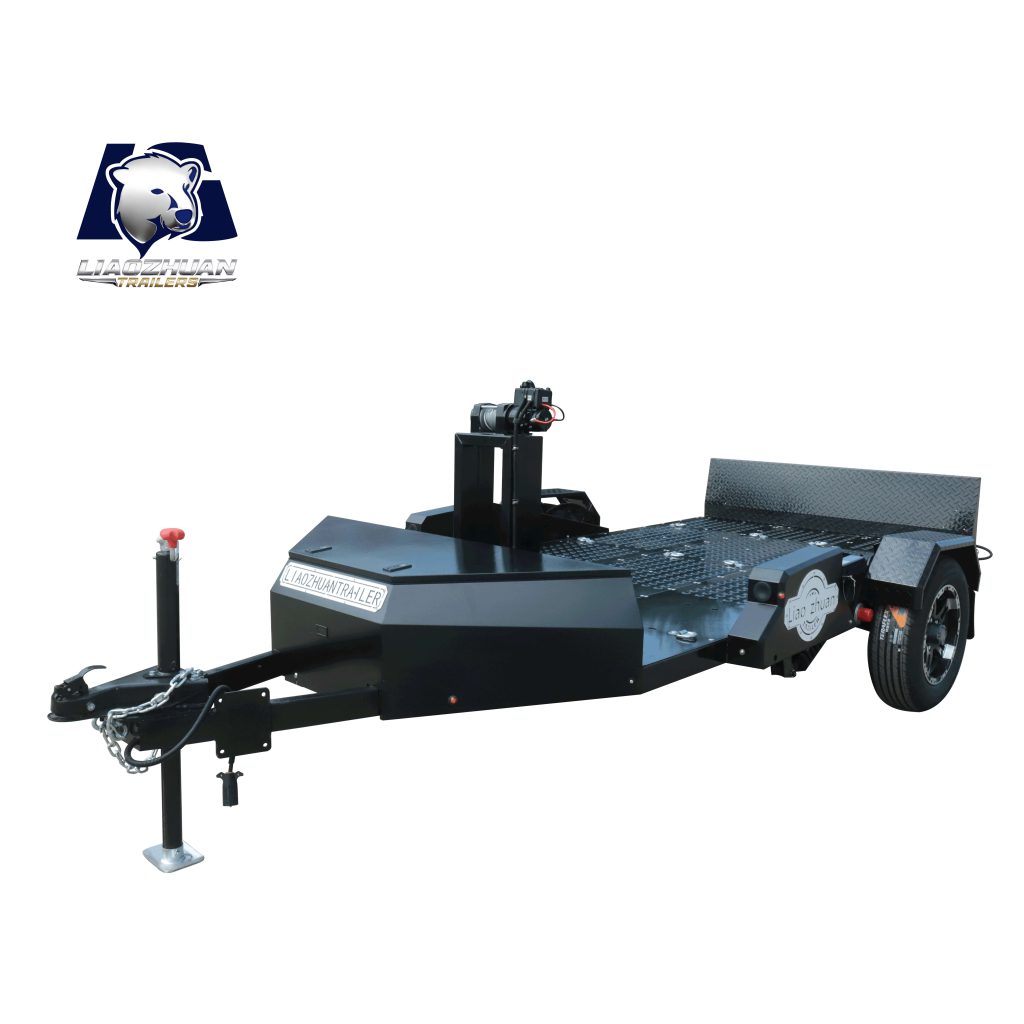

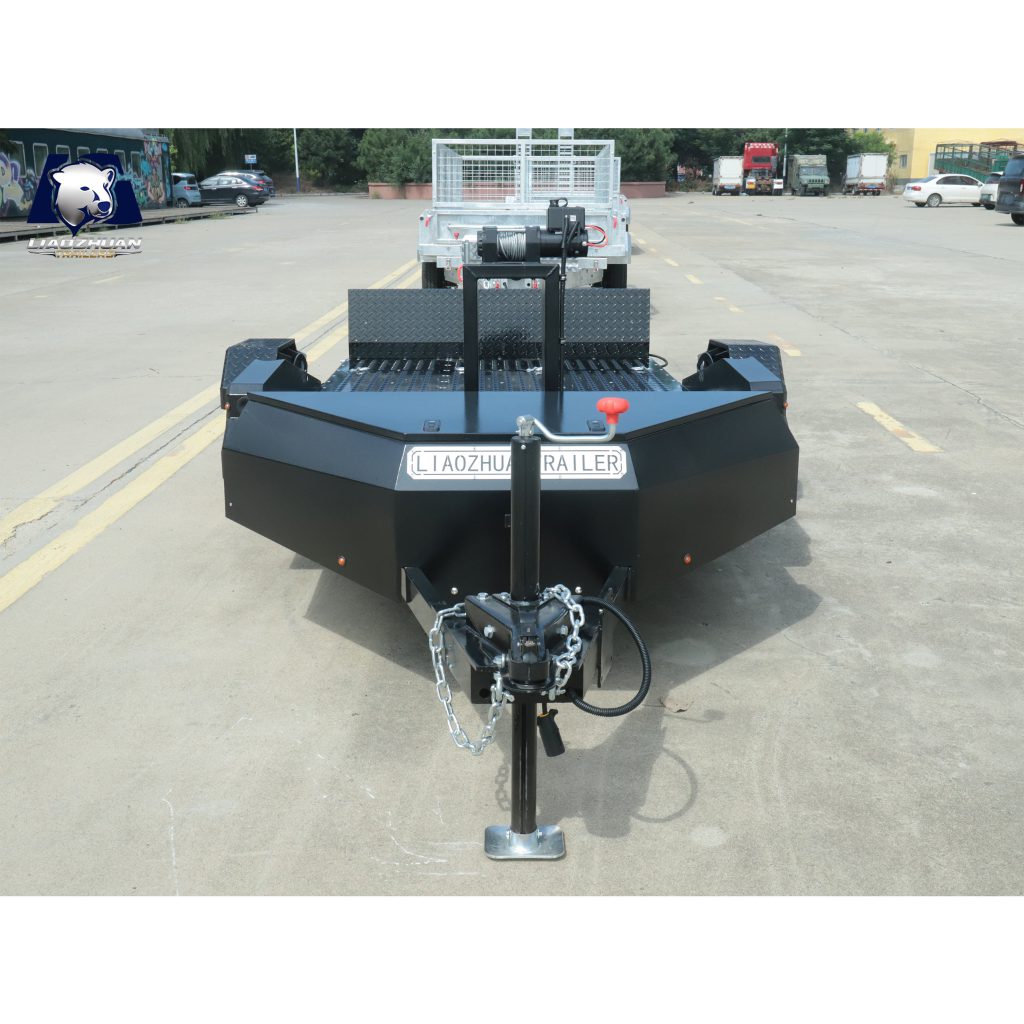

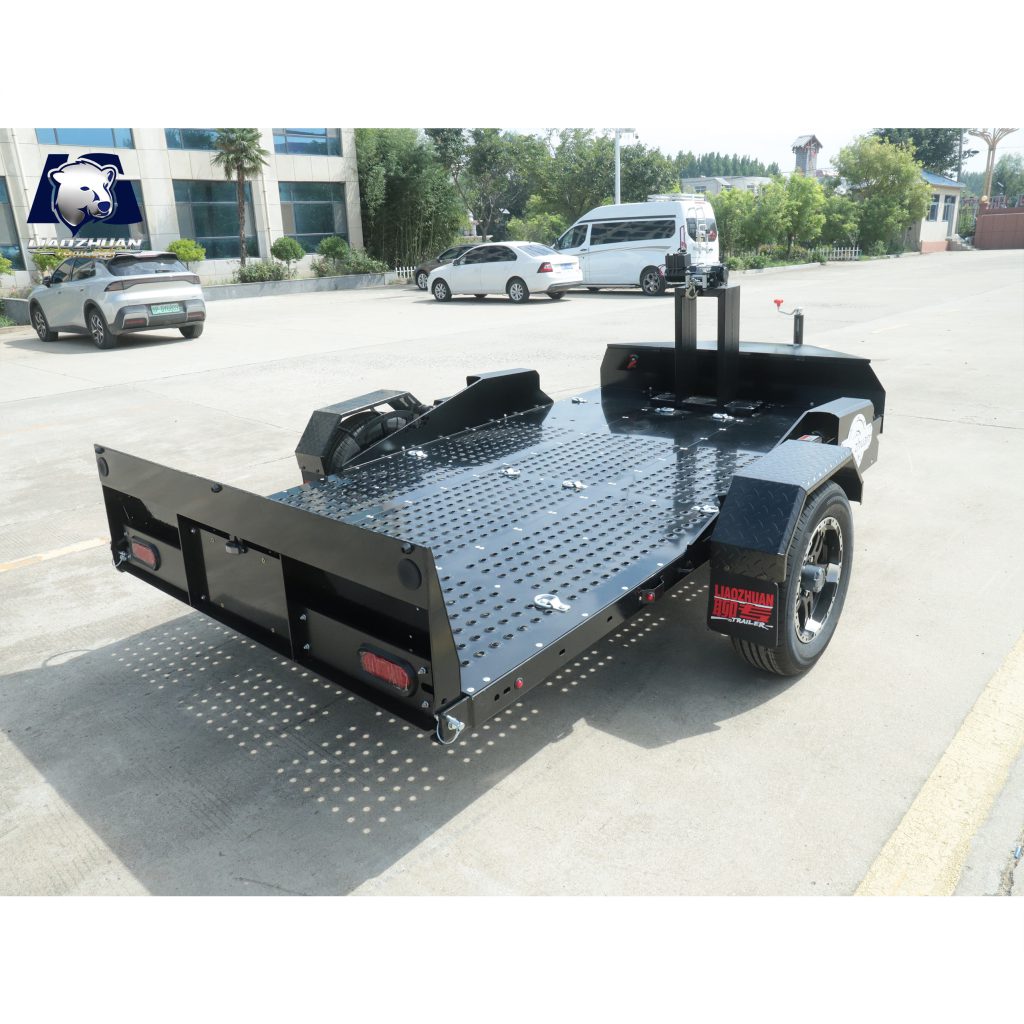

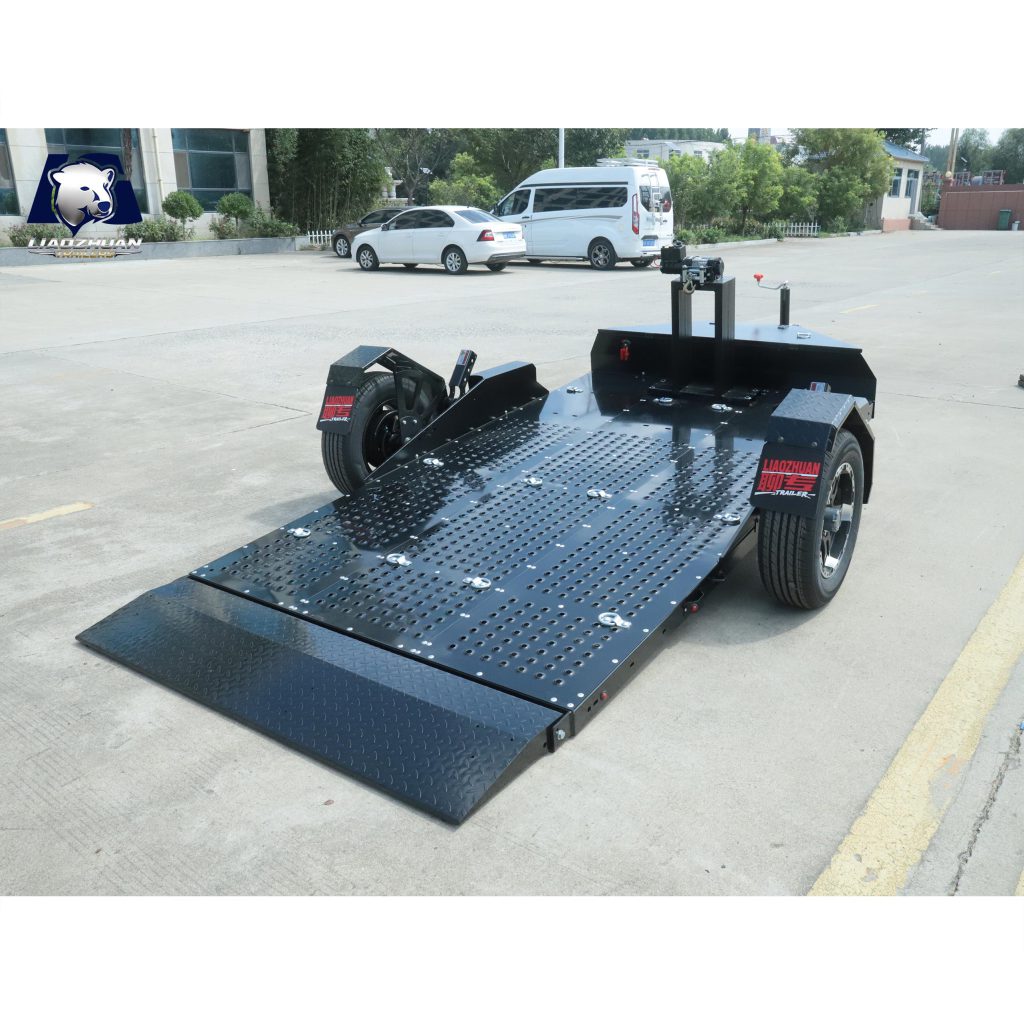

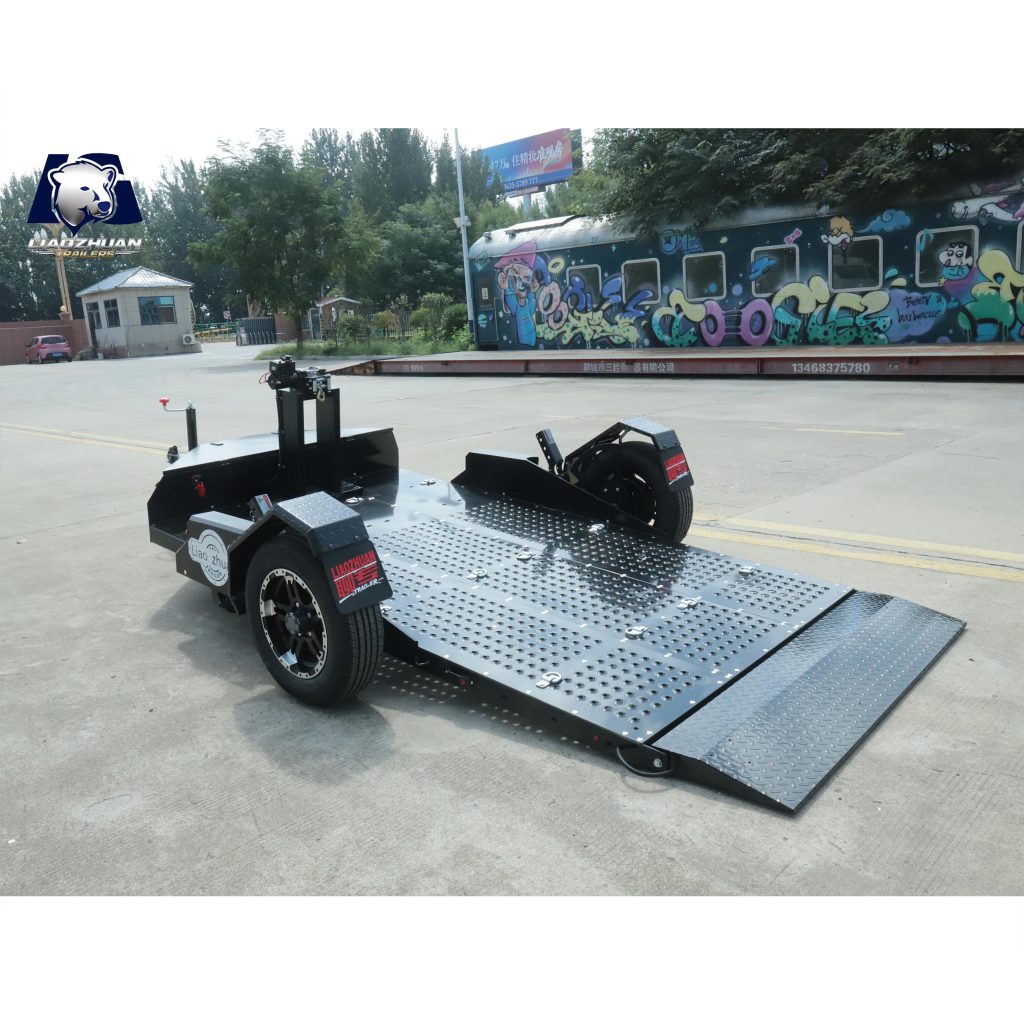

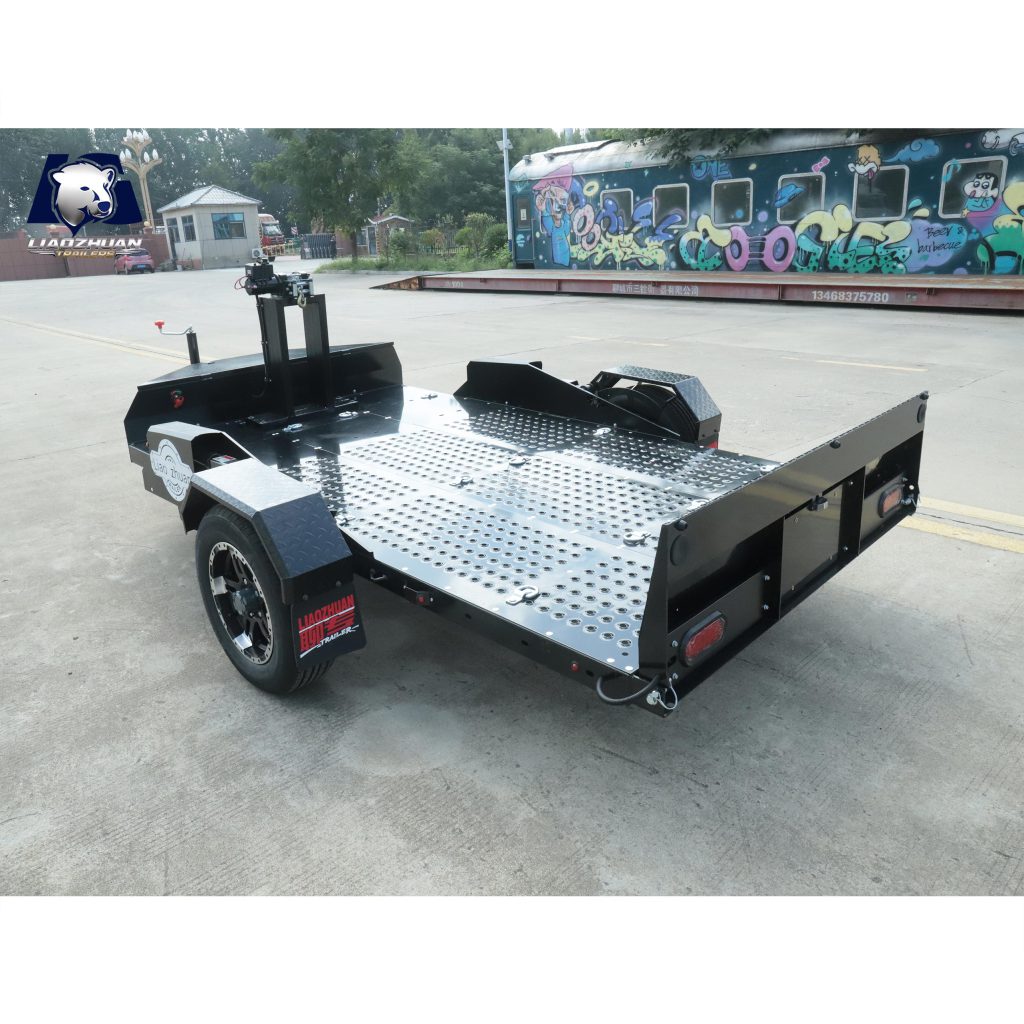

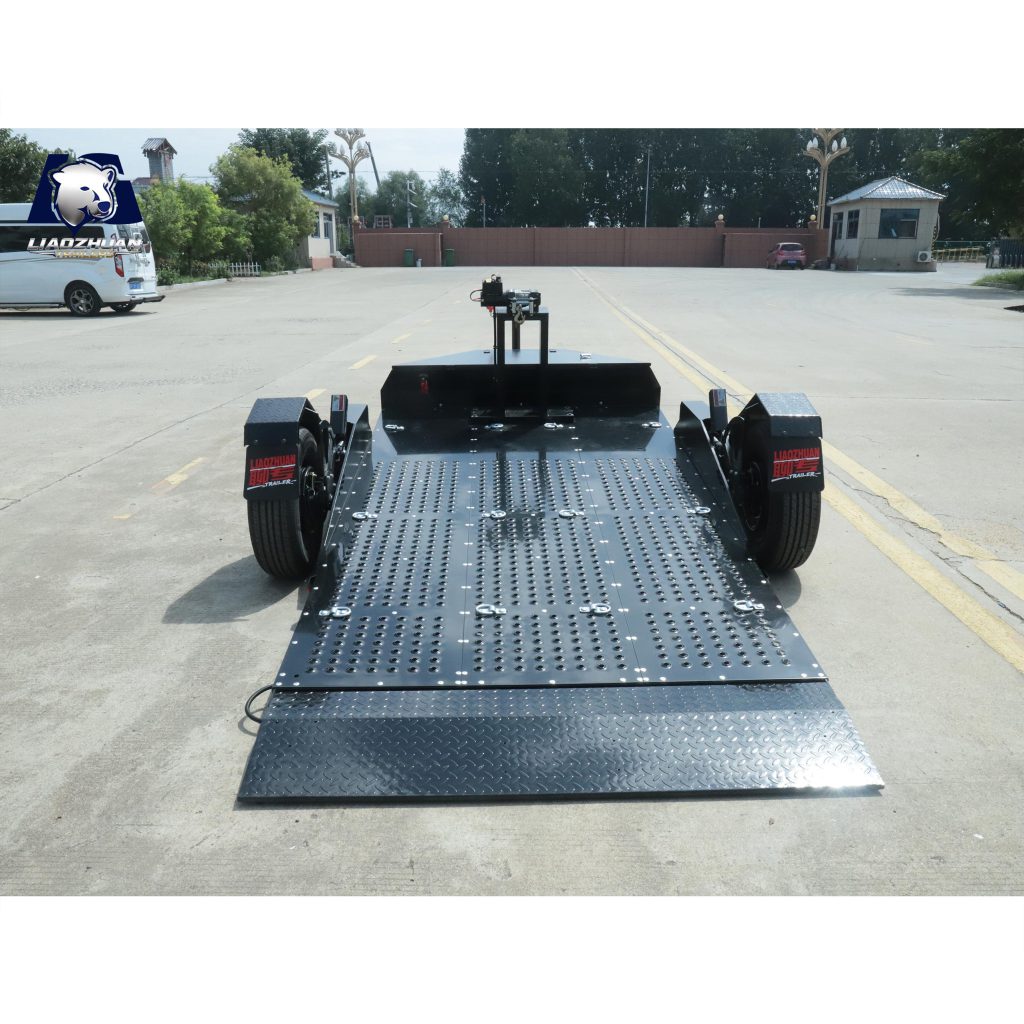

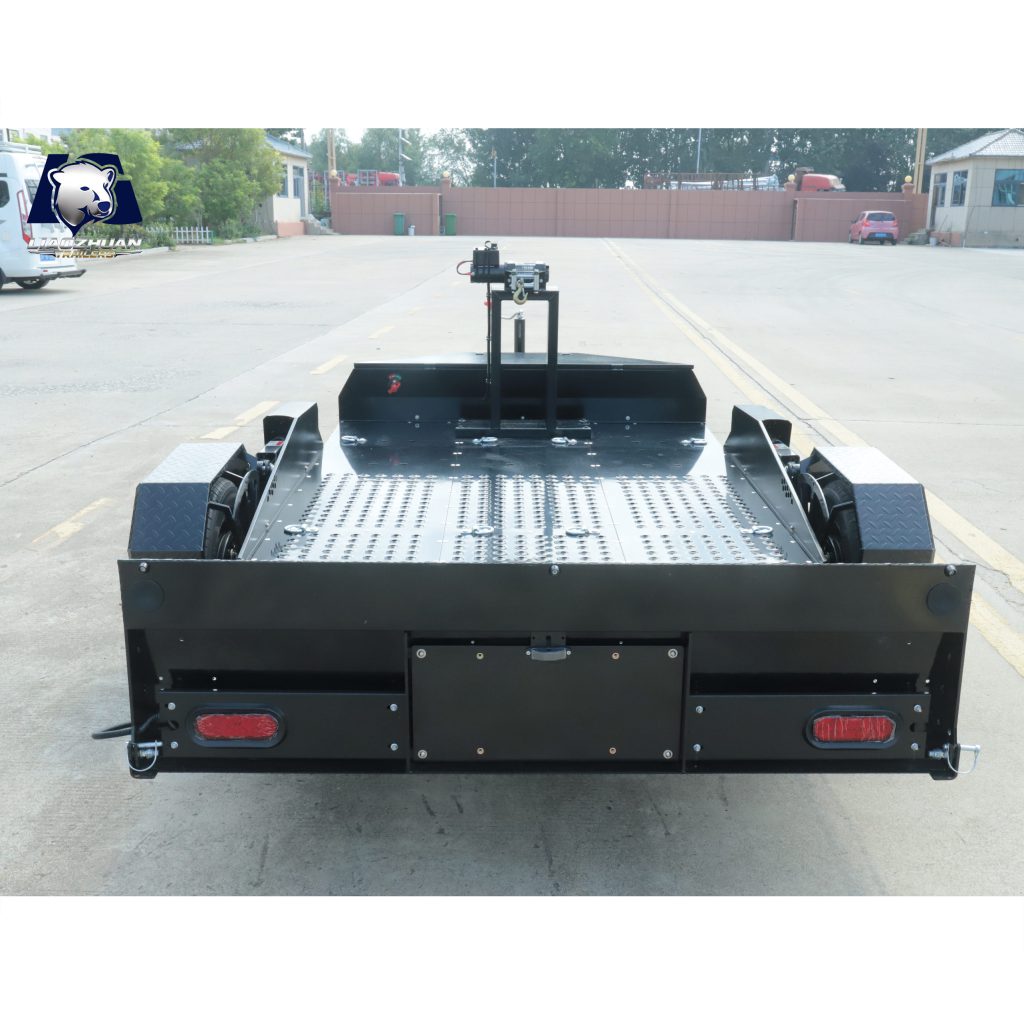

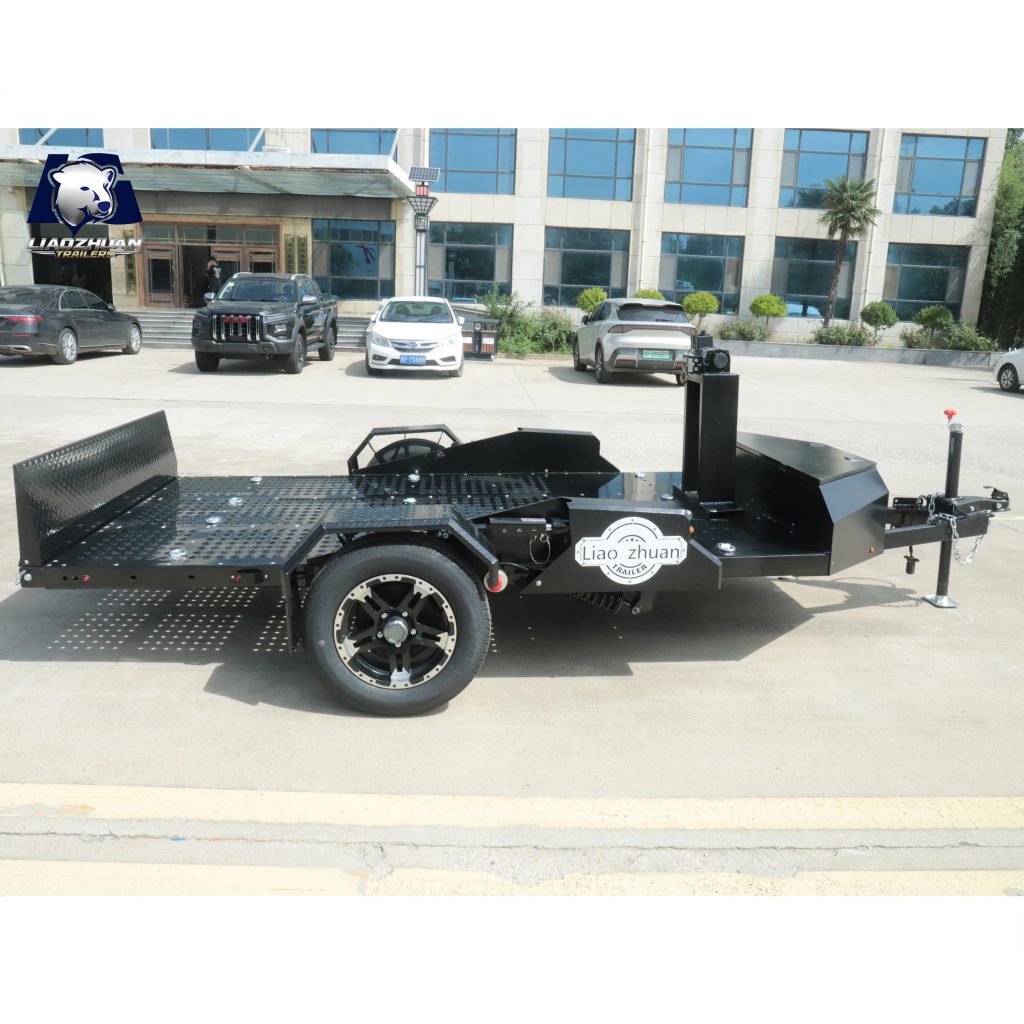

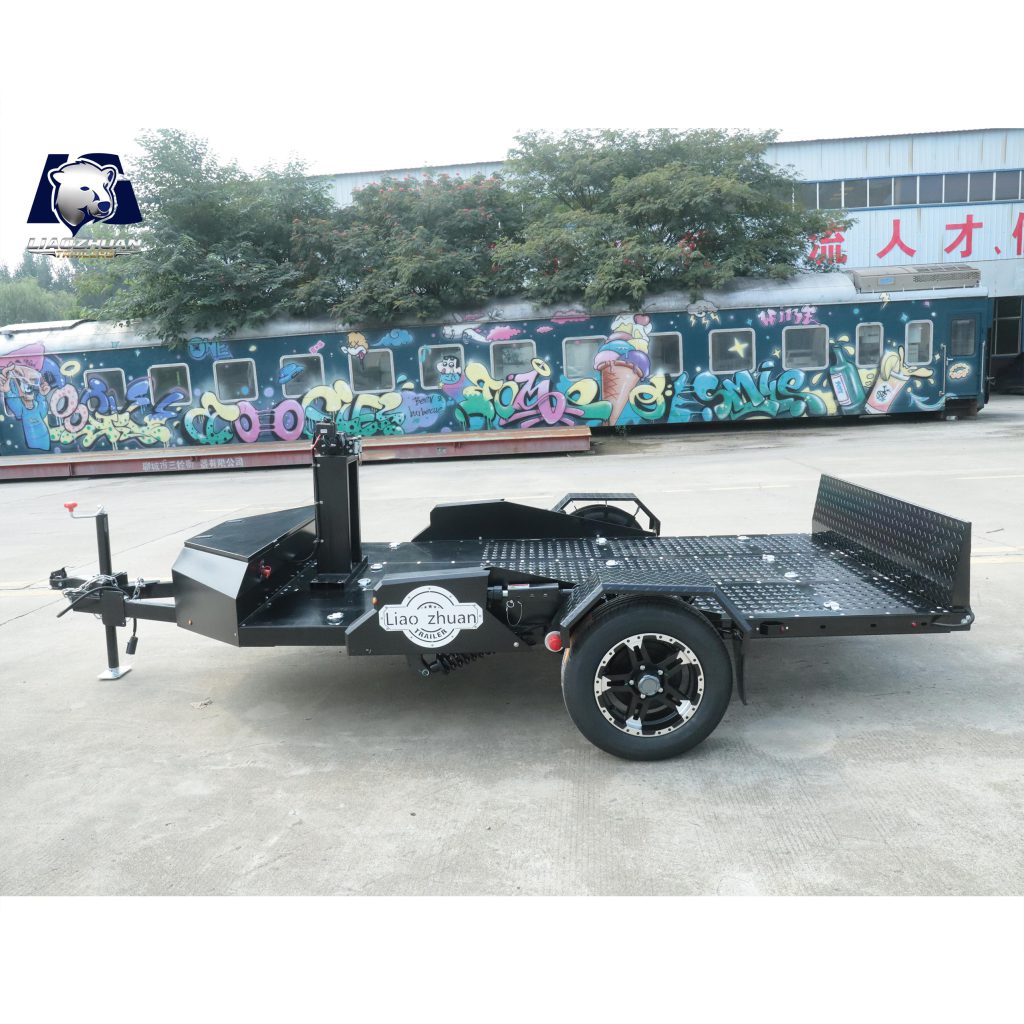

Single-axis Mobile Energy Storage Device Trailer 1500kg ATM
Request a quoteSpecifications
Technical specifications
| Trailer dimensions | 4160mm*2250mm*780mm |
|---|---|
| Drawbar | 80*40,1330mm long |
| Internal dimensions | 2800mm*1600mm |
| Surface treatment | Painting |
| Color | Black |
| Light | LED DOT light |
| ATM | 1500kg |
| Rated load capacity | 1200kg |
| Weight of the skin | 300kg |
| Fully welded | Yes |
| Patterned panel | 2.5 pattern |

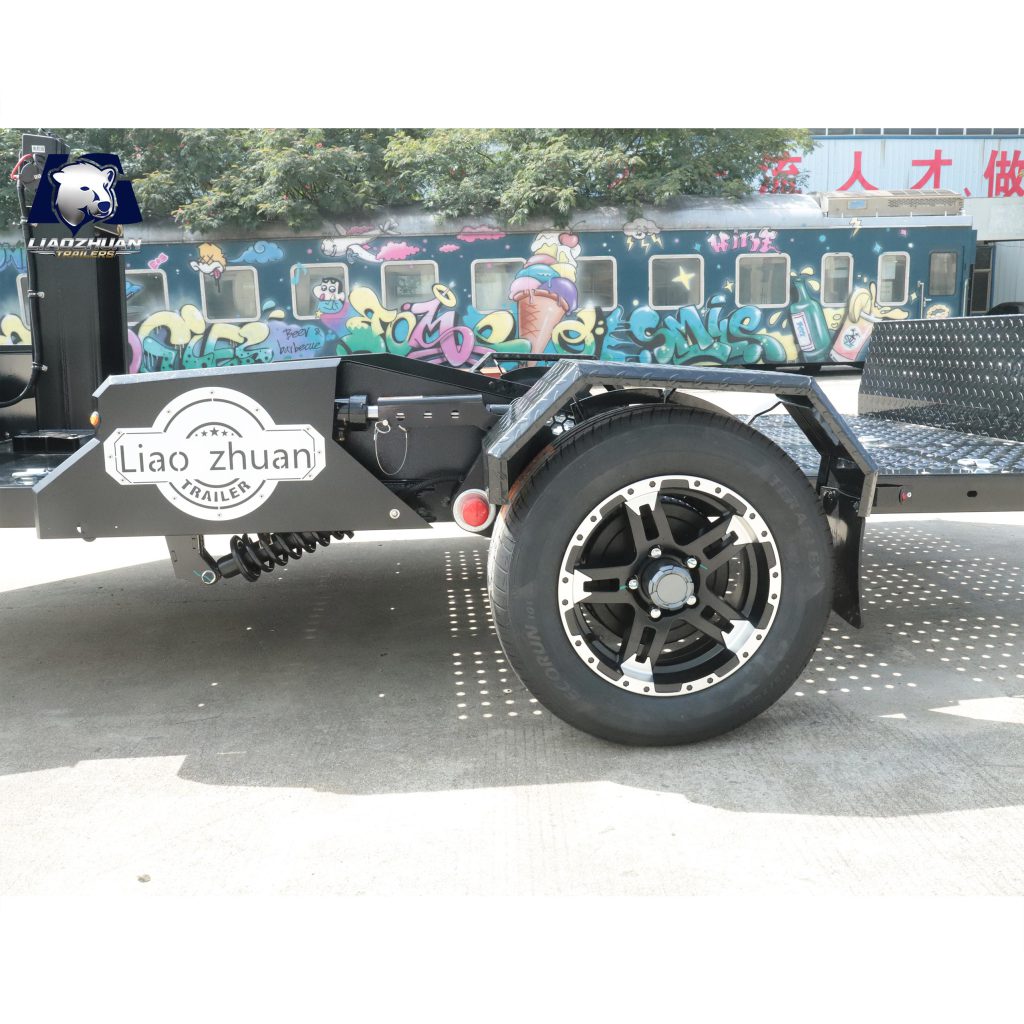

| Suspension | Independent suspension with coil springs |
| Tire | 185/70R14 |
| Brake | Electric brakes |
| Plug | American 7-pin round-head plug |
| Certification | DOT / NHTSA / FMVSS / WMI / VIN / MID |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
