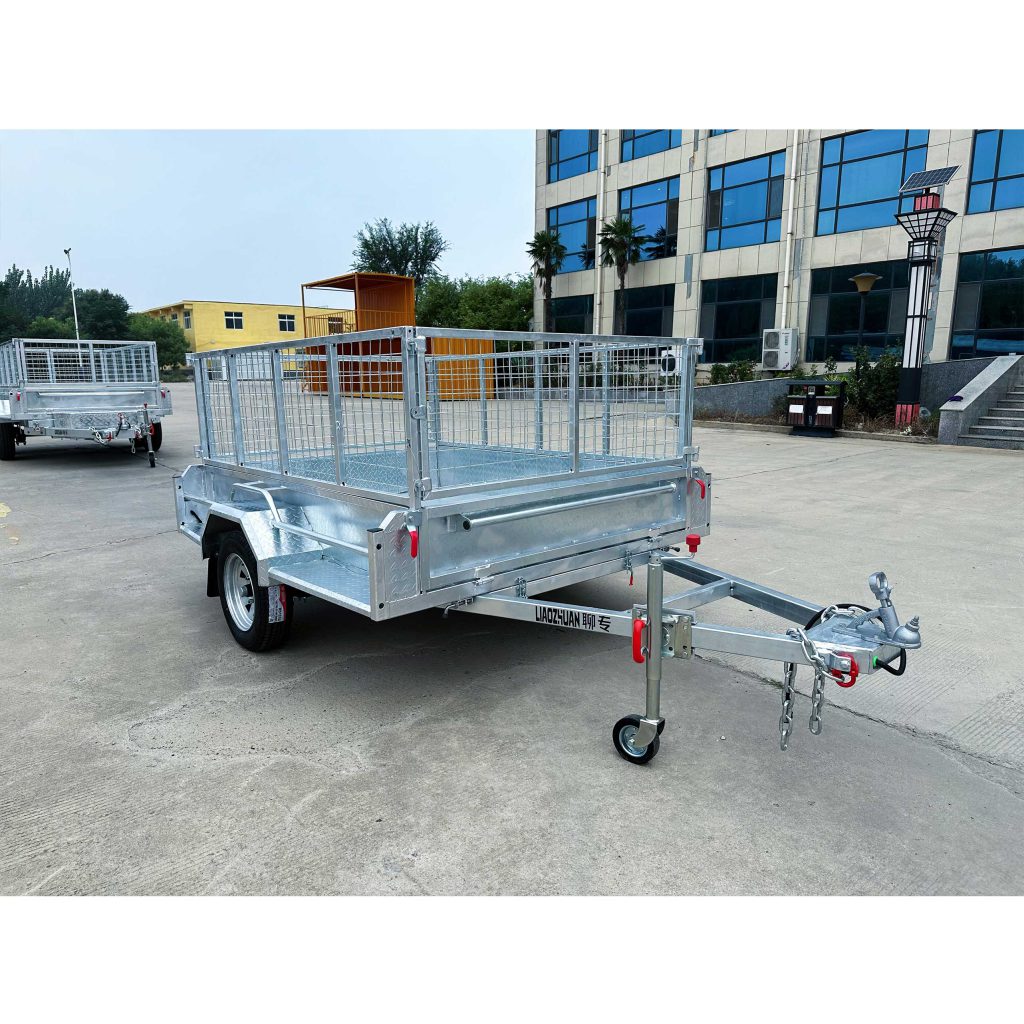

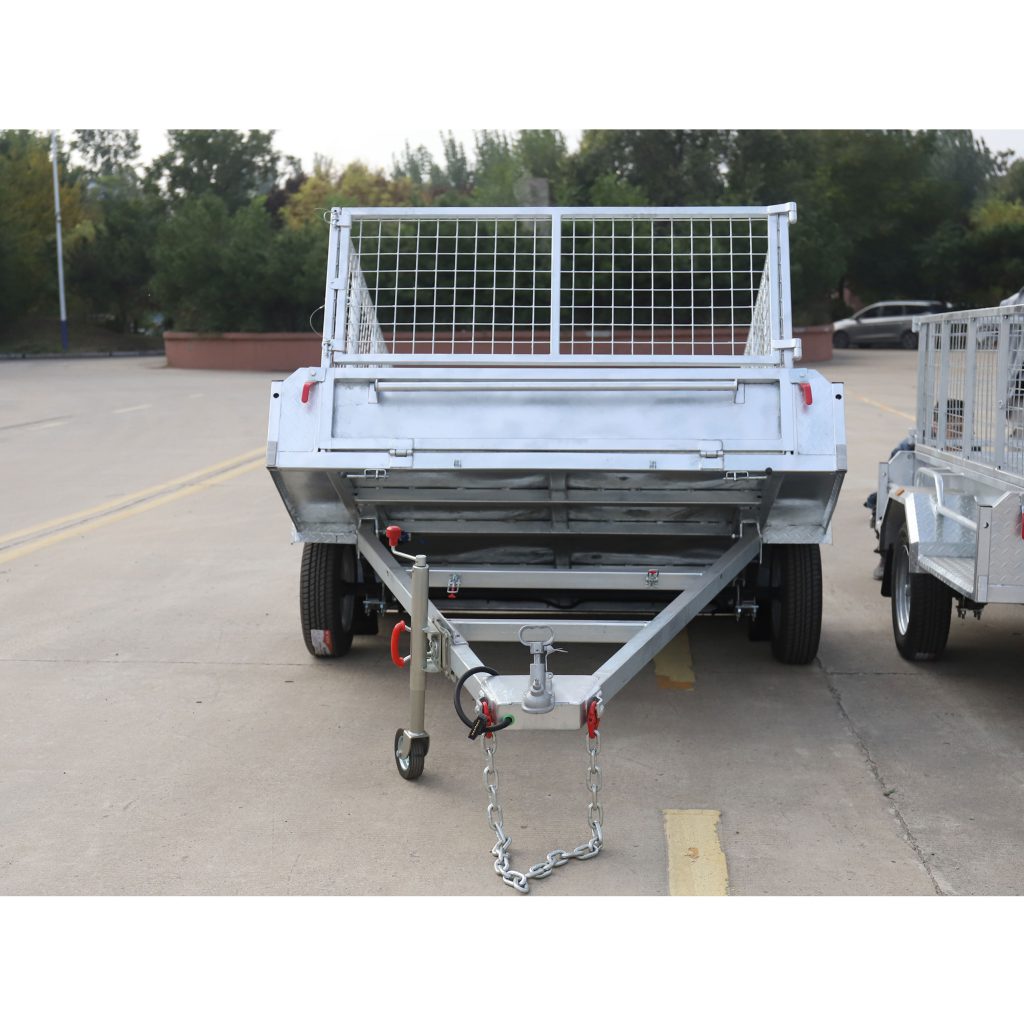

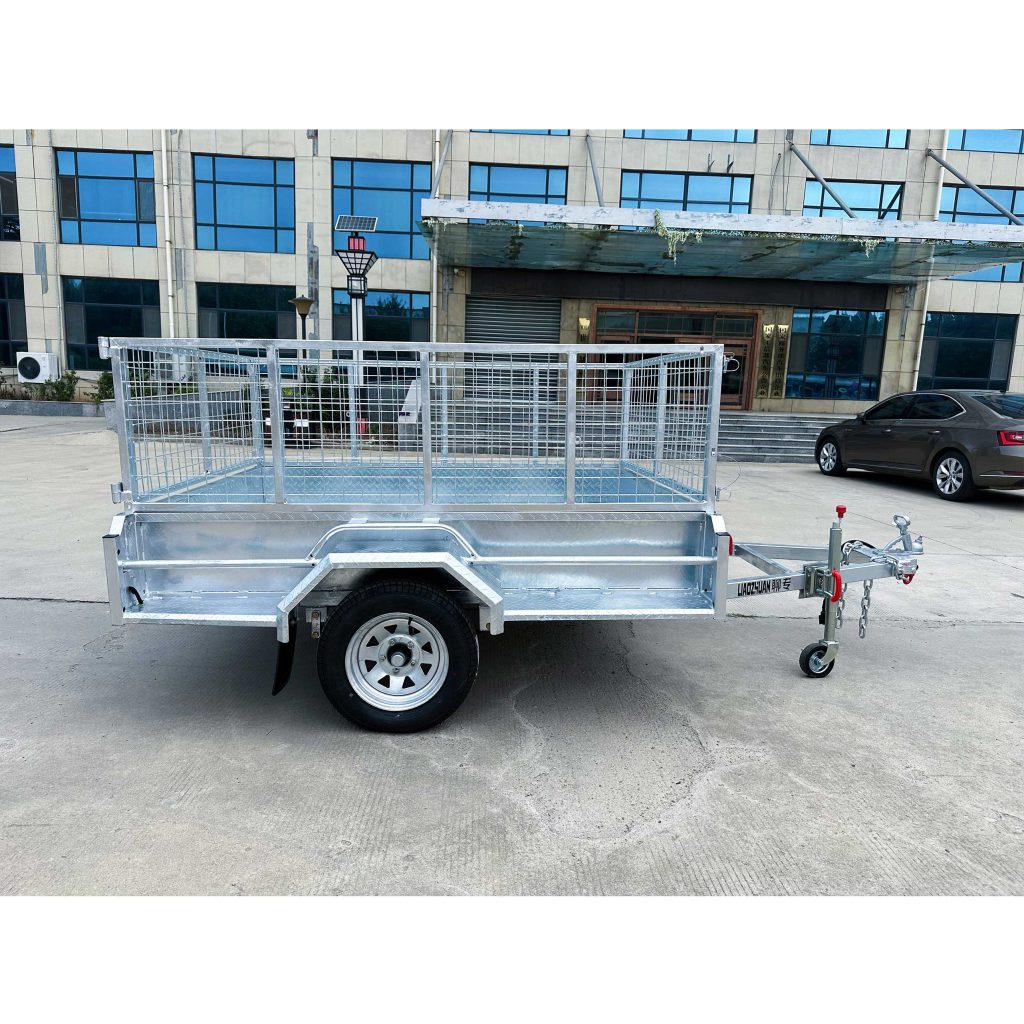

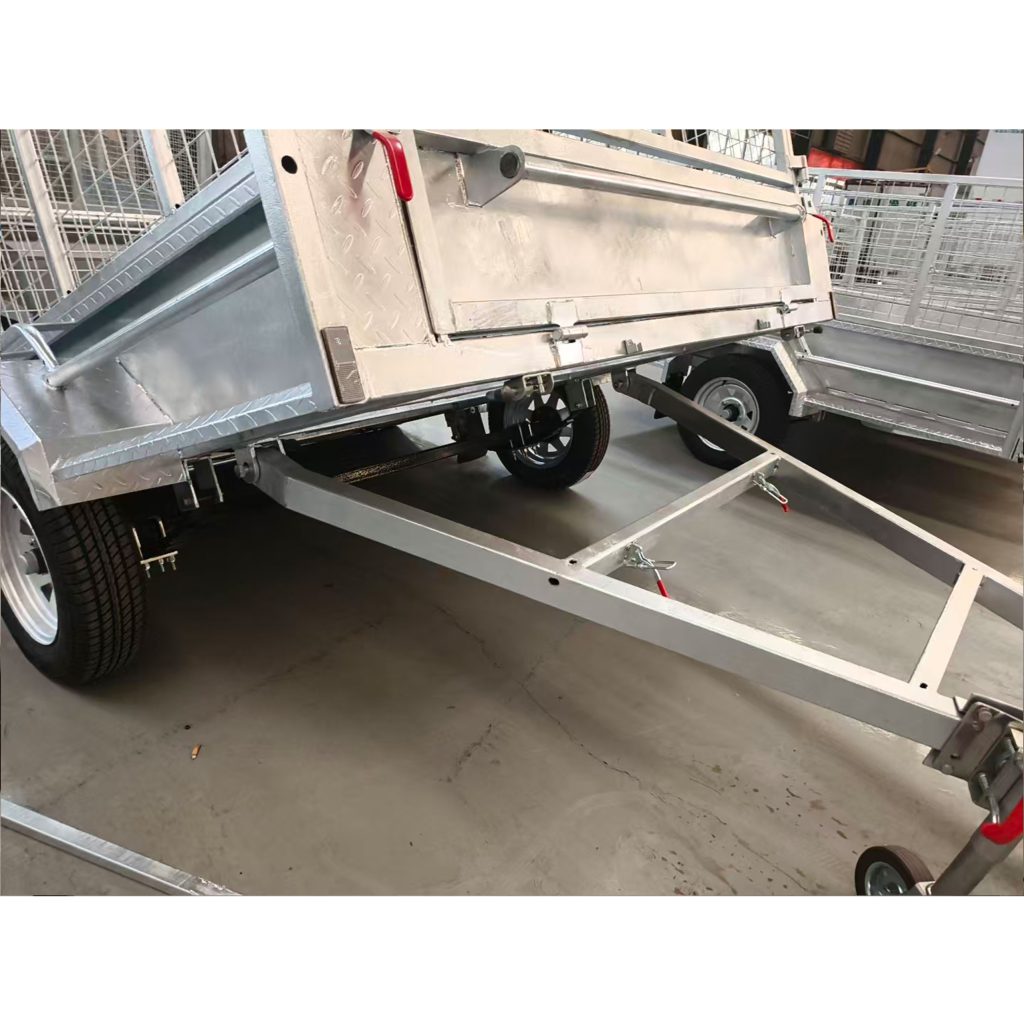

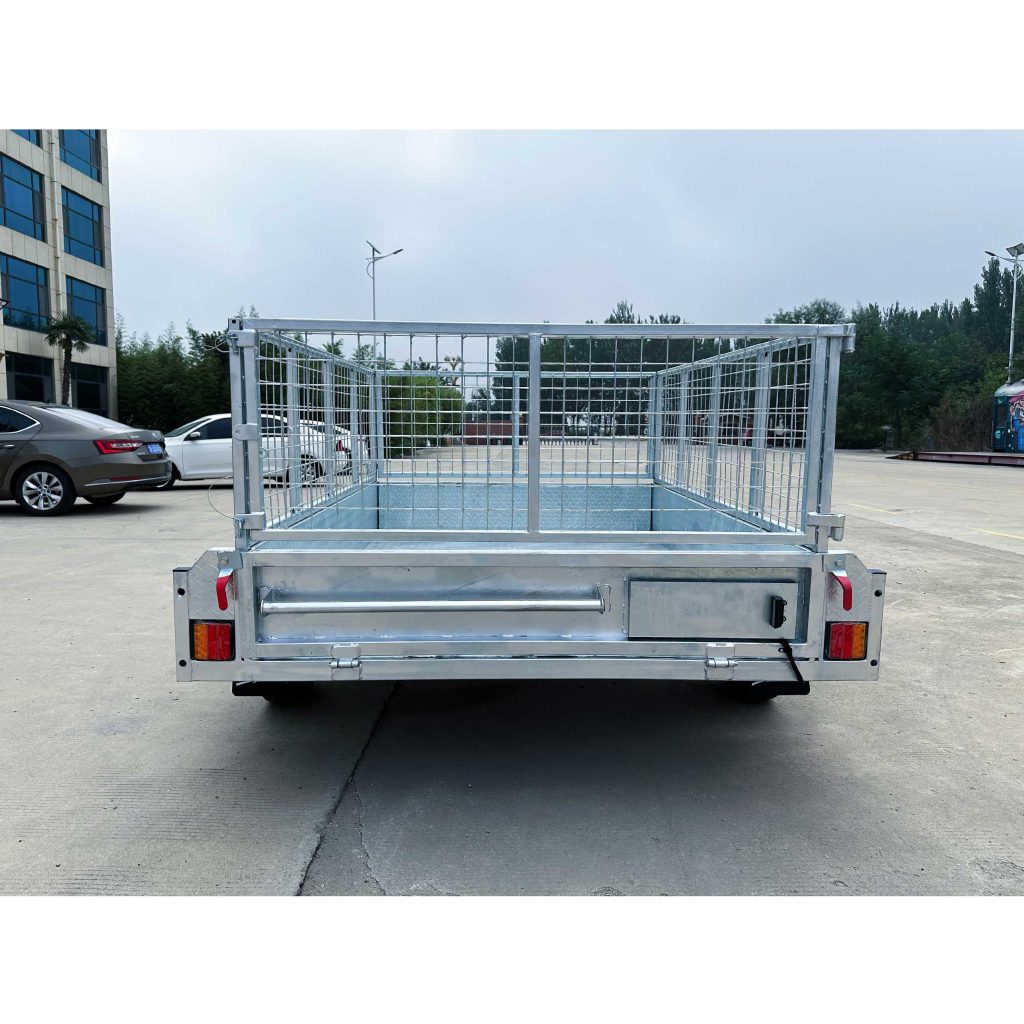

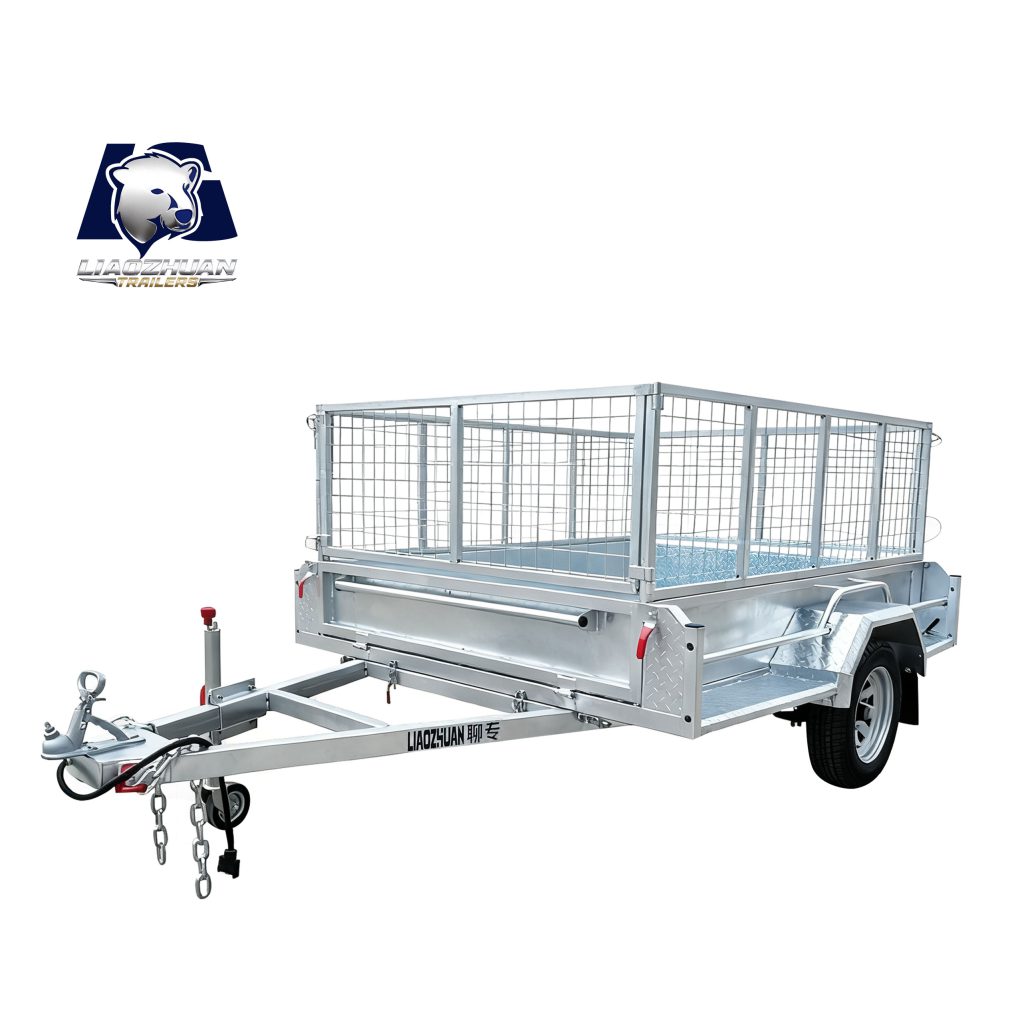

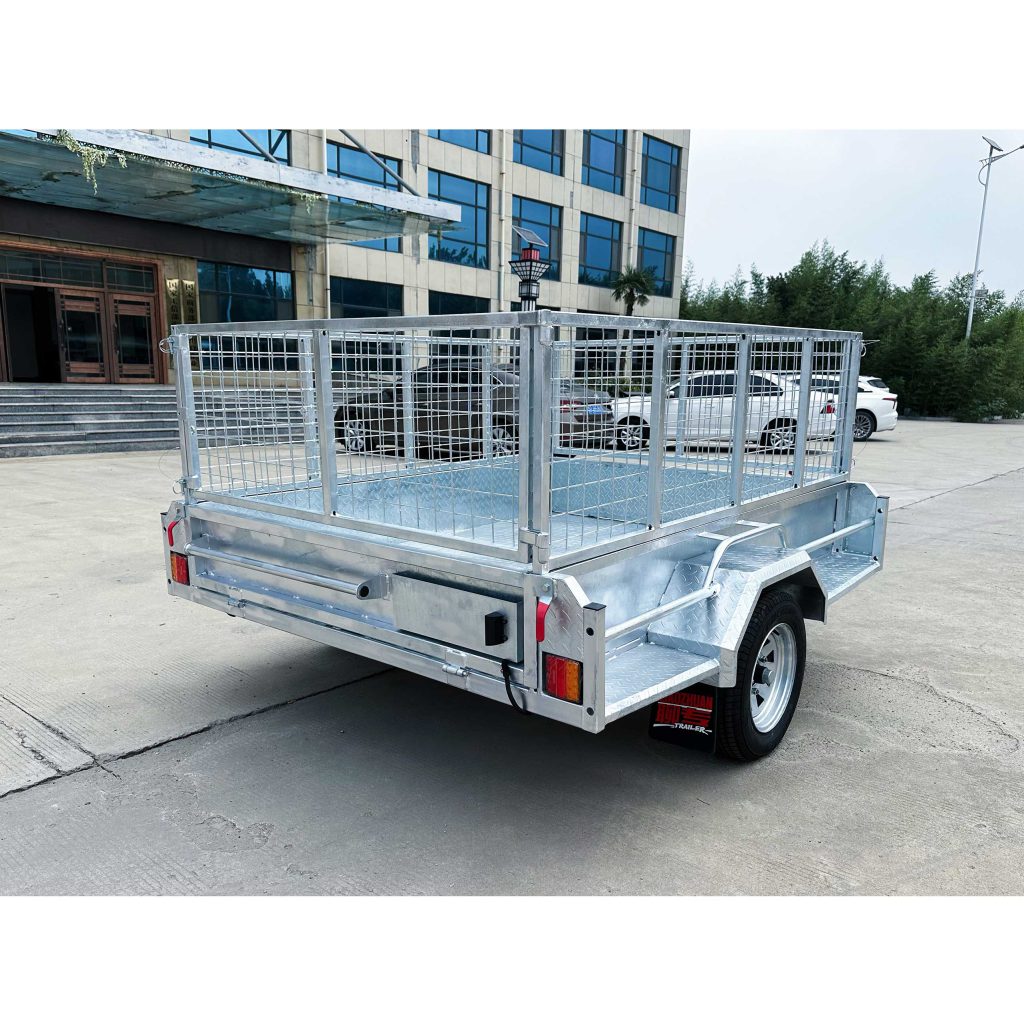

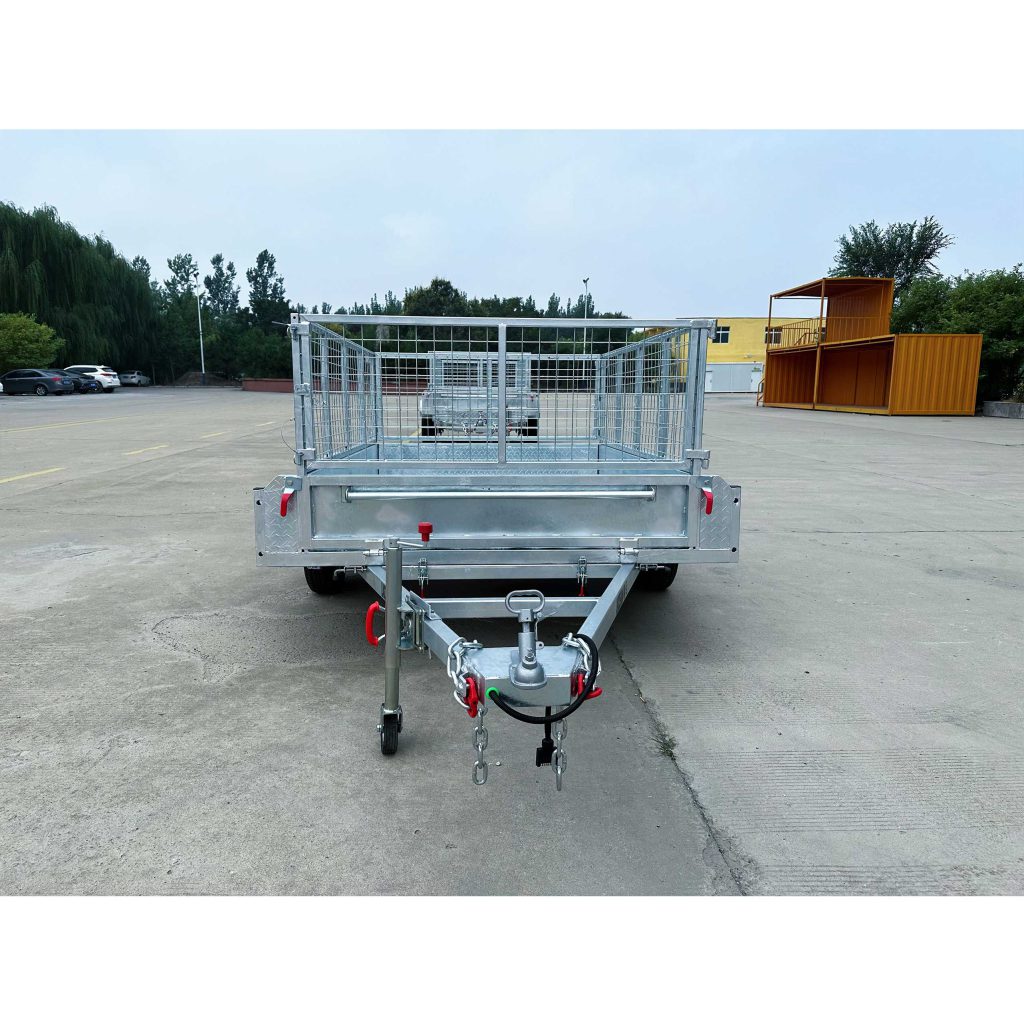

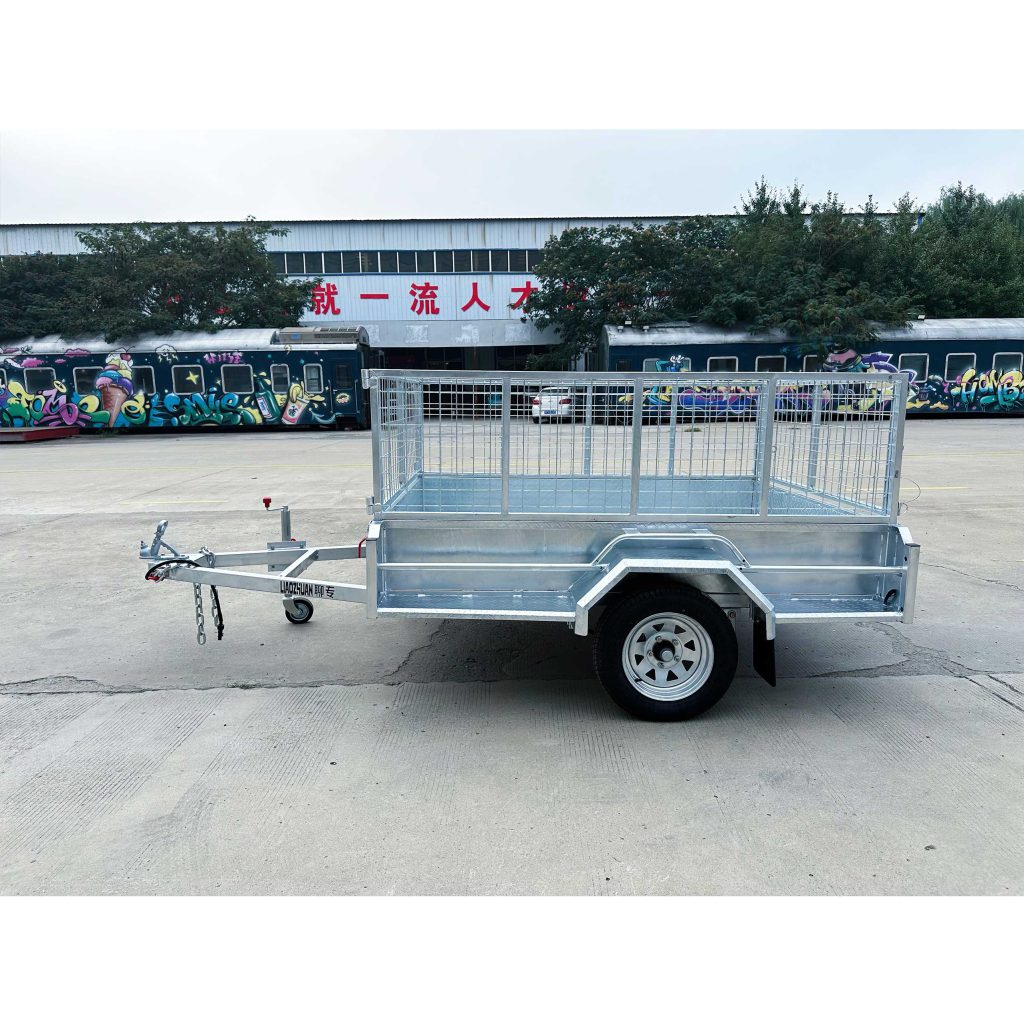

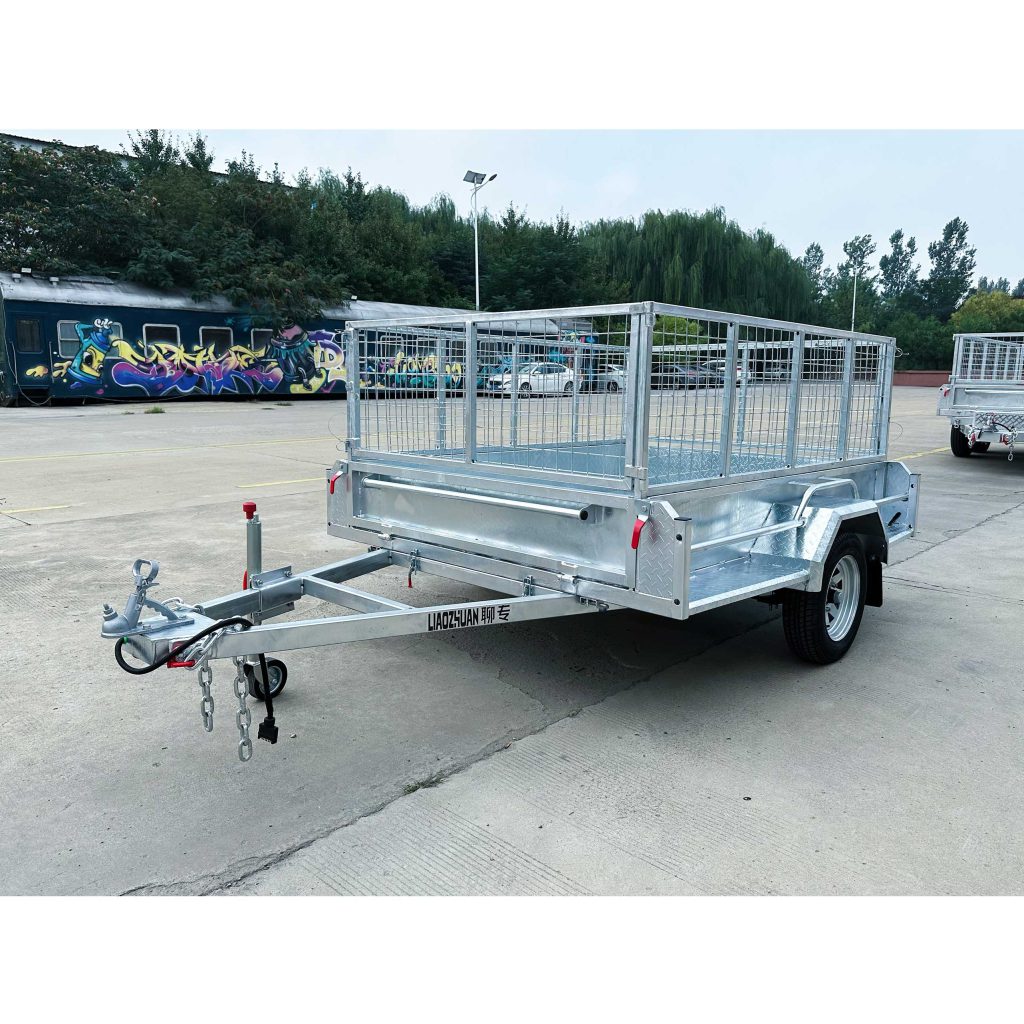

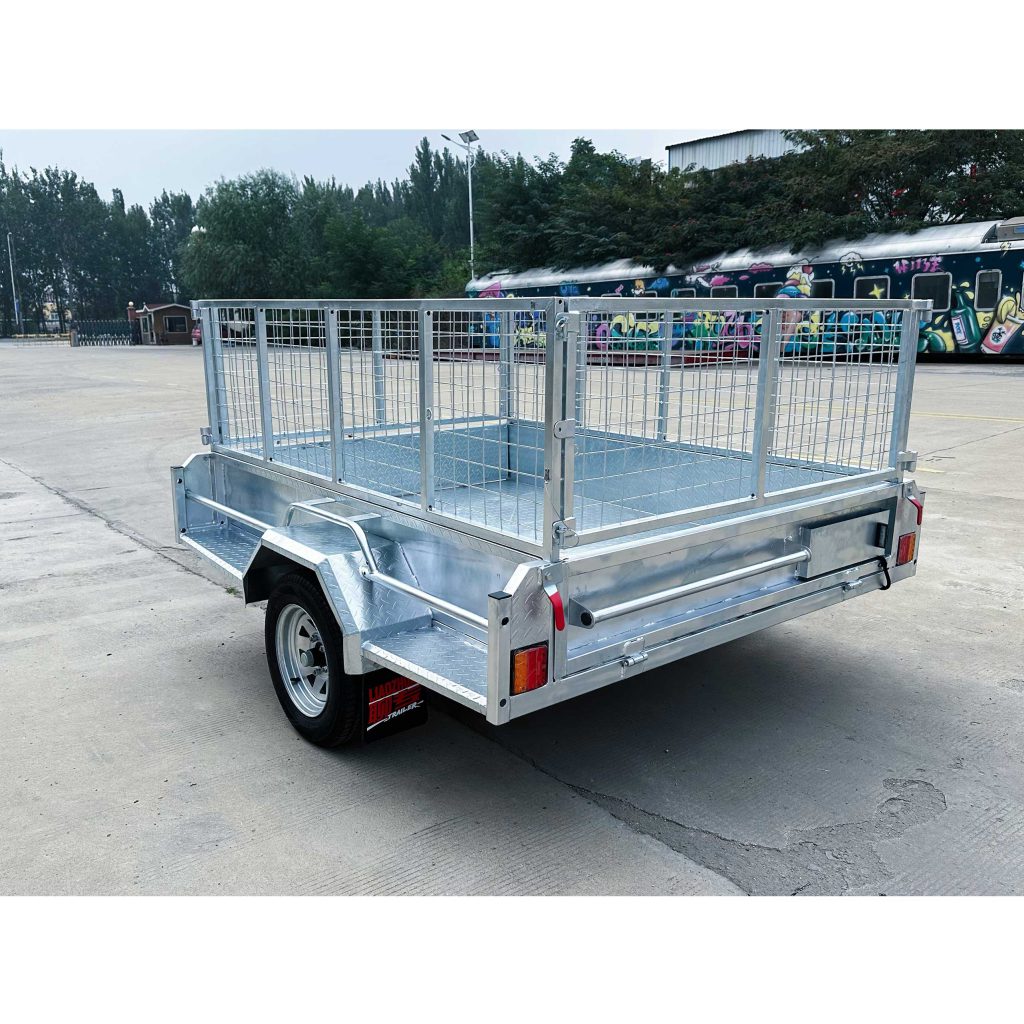

Single-axis cage 7 * 5 trailer ATM750kg
Request a quoteSpecifications
Technical specifications
| Trailer dimensions | 3530mm*2110mm*1330mm |
|---|---|
| Drawbar | 70*50*3mm |
| Internal dimensions | 2140mm*1530mm*300mm+600mm |
| Surface treatment | Hot-dip galvanizing |
| Color | Silver |
| Light | LED ADR light |
| Shaft | 45mm solid square steel |
| ATM | 750kg |
| Rated load capacity | 420kg |
| Weight of the skin | 330kg |
| Guide wheel | 6”Rotation |
| Pattern panel | 2.3 pattern |
| Side | 300mm 2.0mm fold |
| Cage | 600mm30*30mm |
| Spring | 4 pieces |
| Beam | 50*50*3 |
| Tire | 165/70R13C |
| Braking | No brakes |
| Optional toolbox | Aluminum |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
