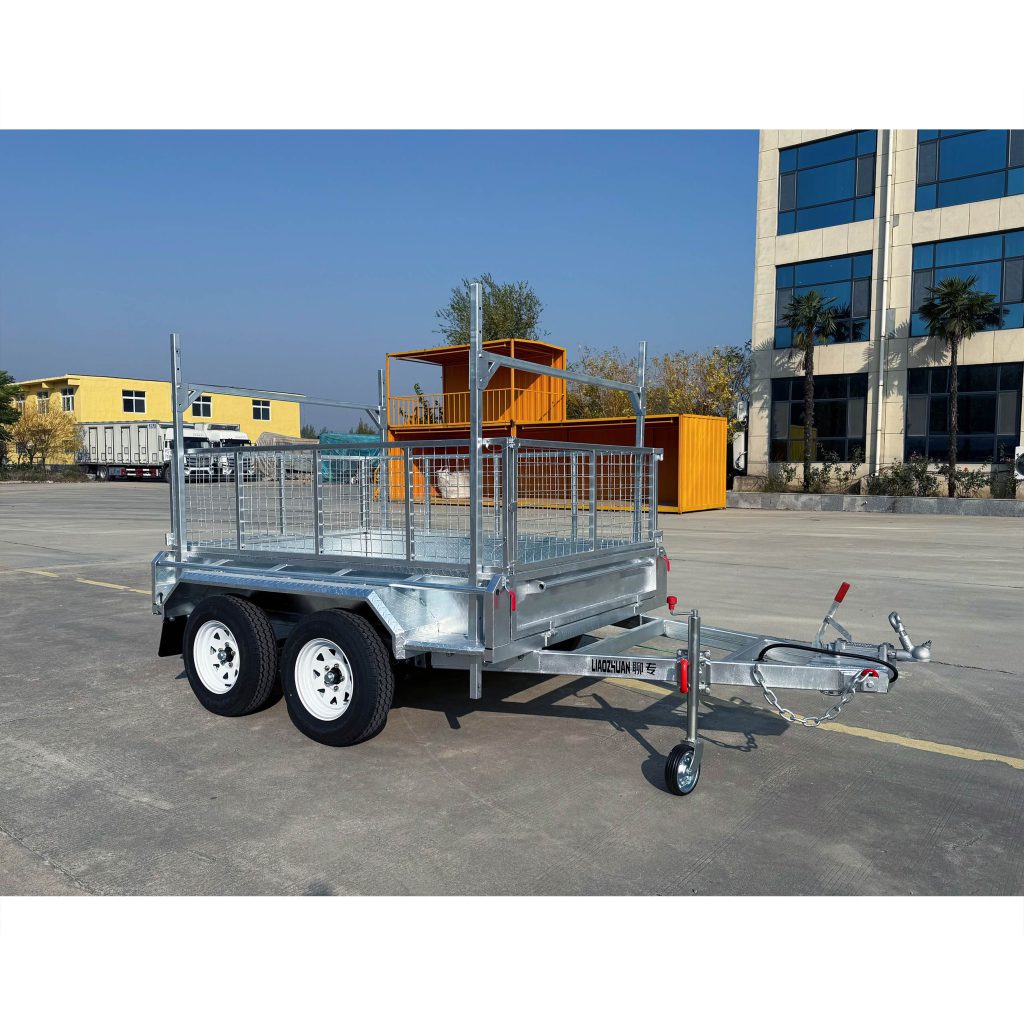

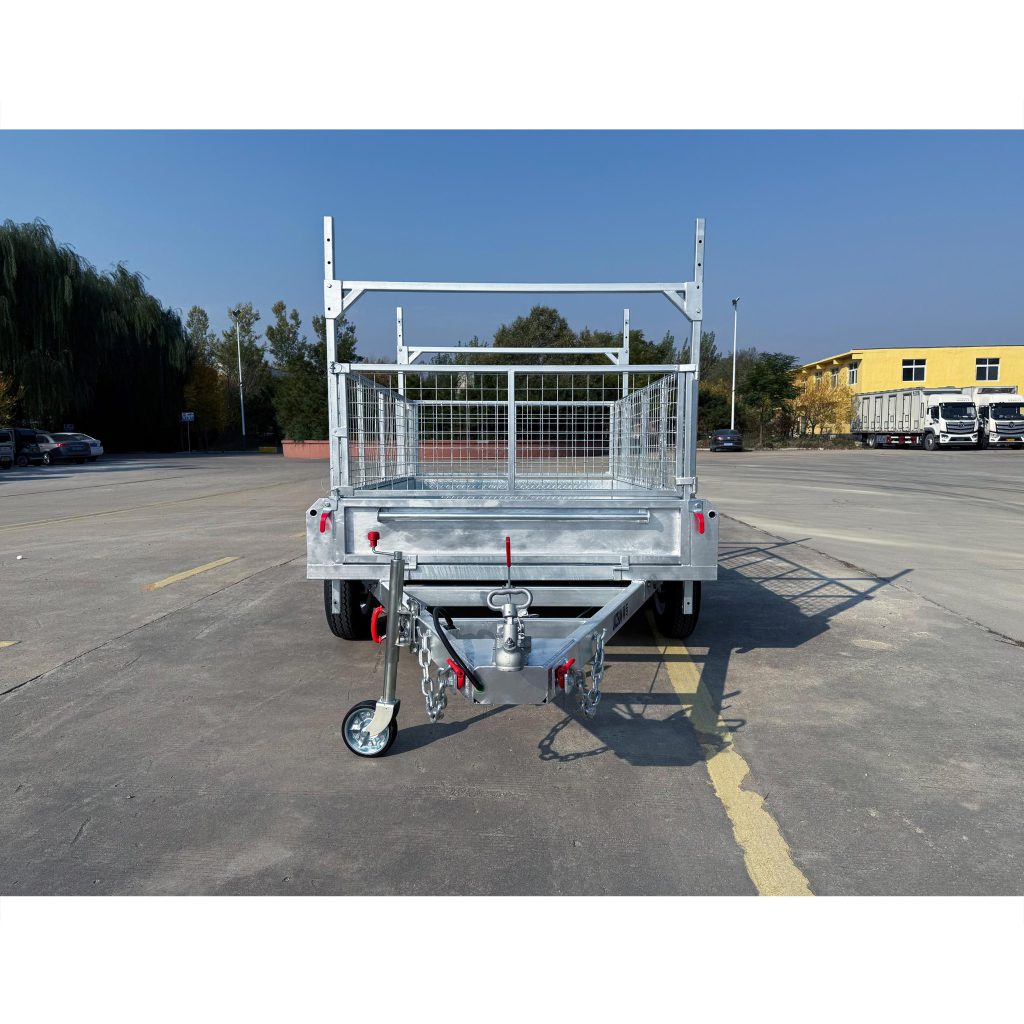

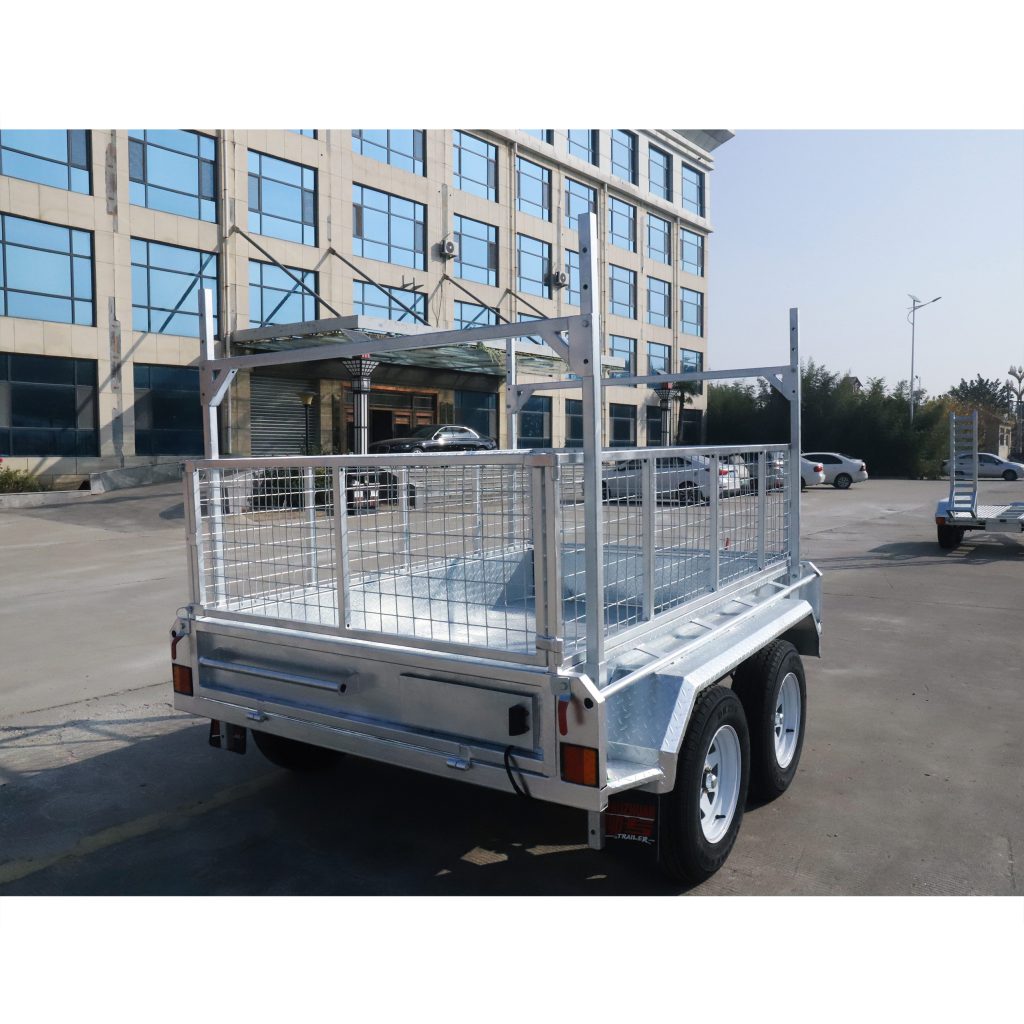

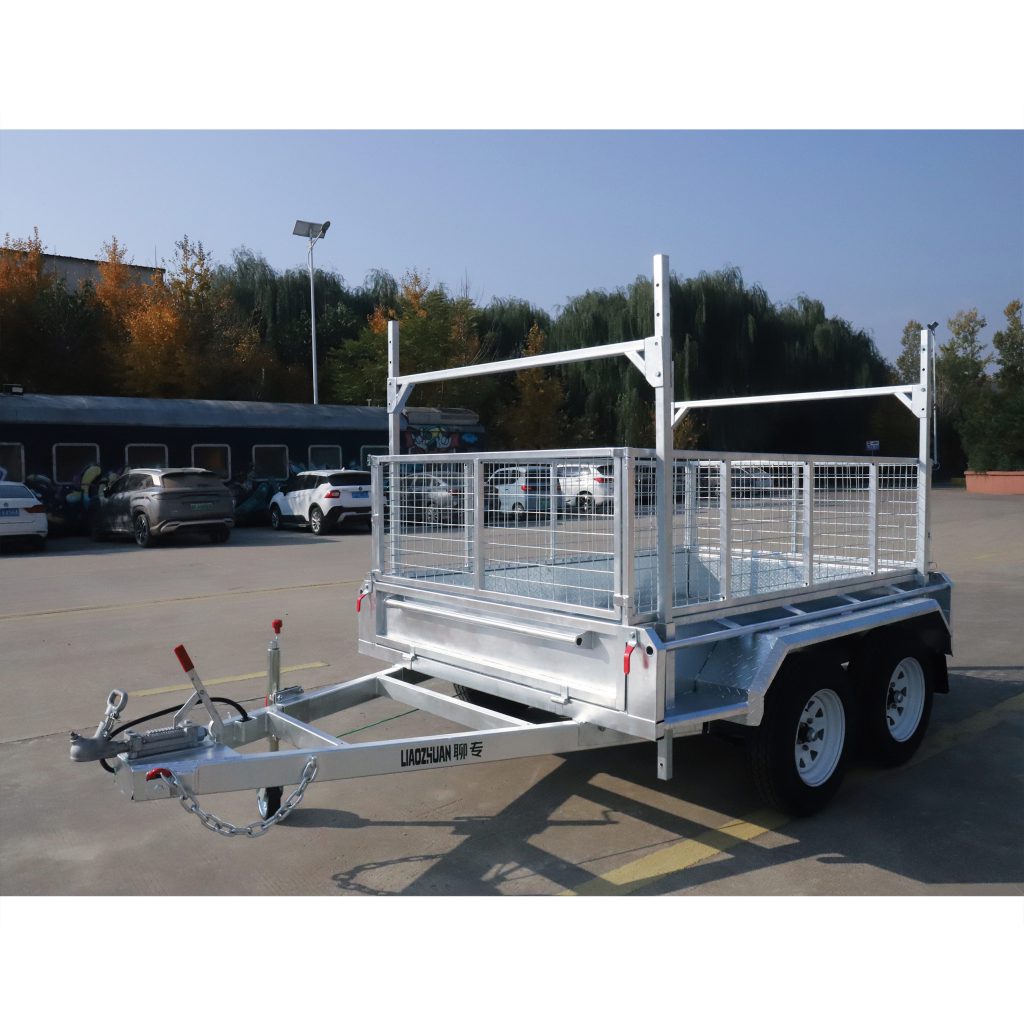

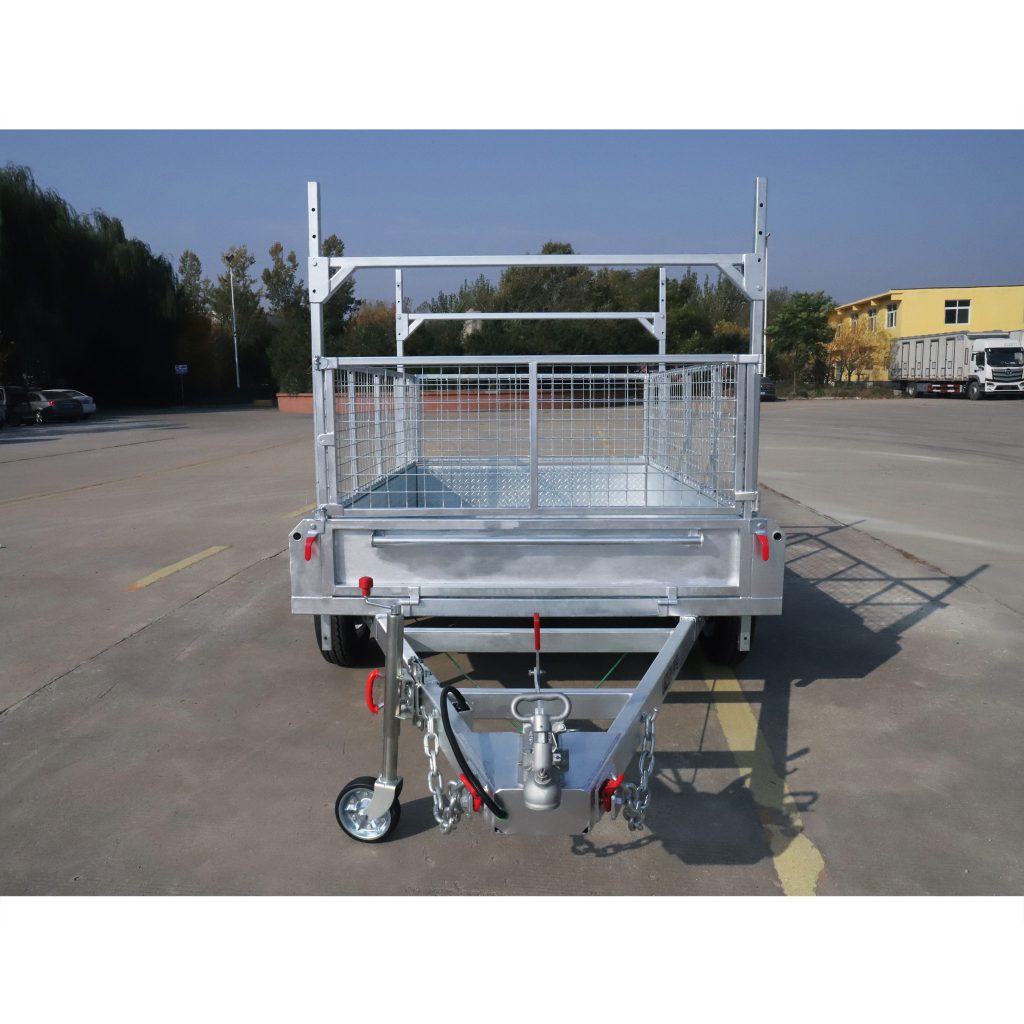

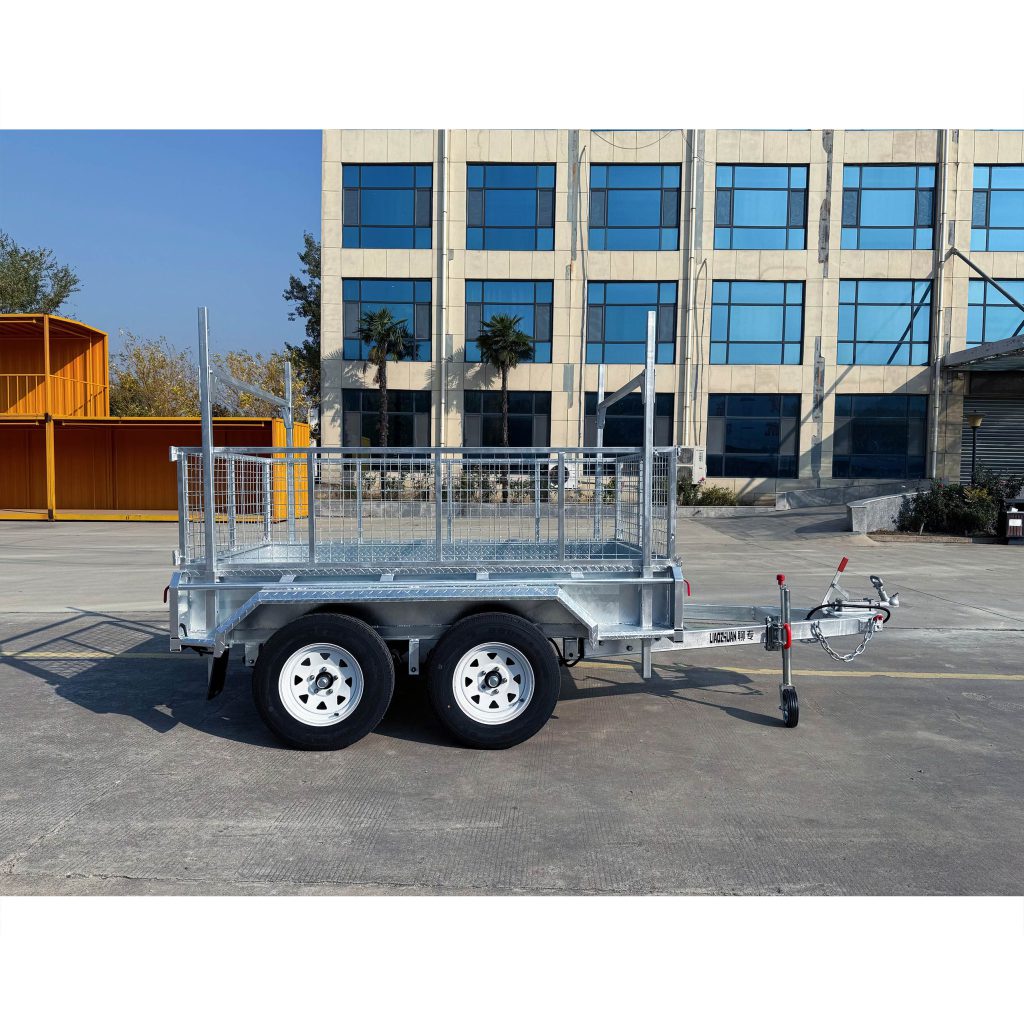

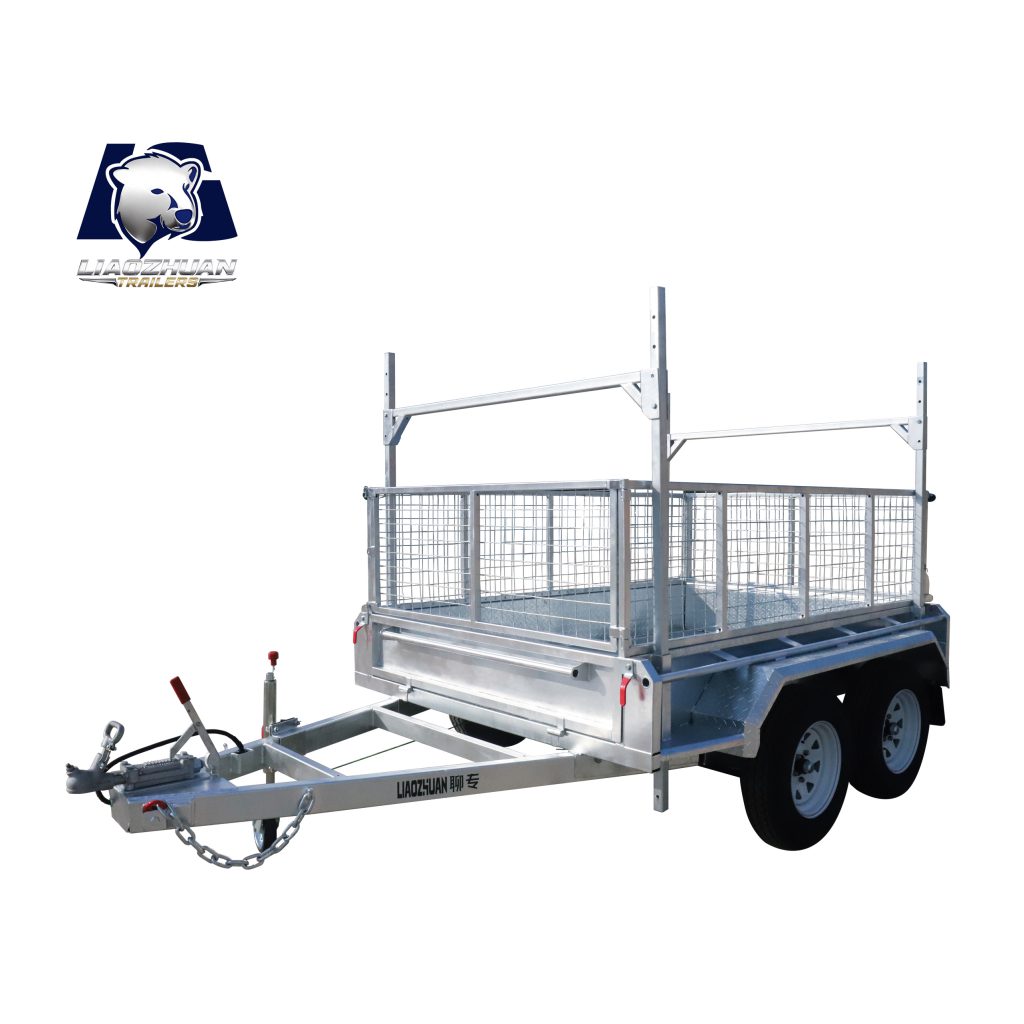

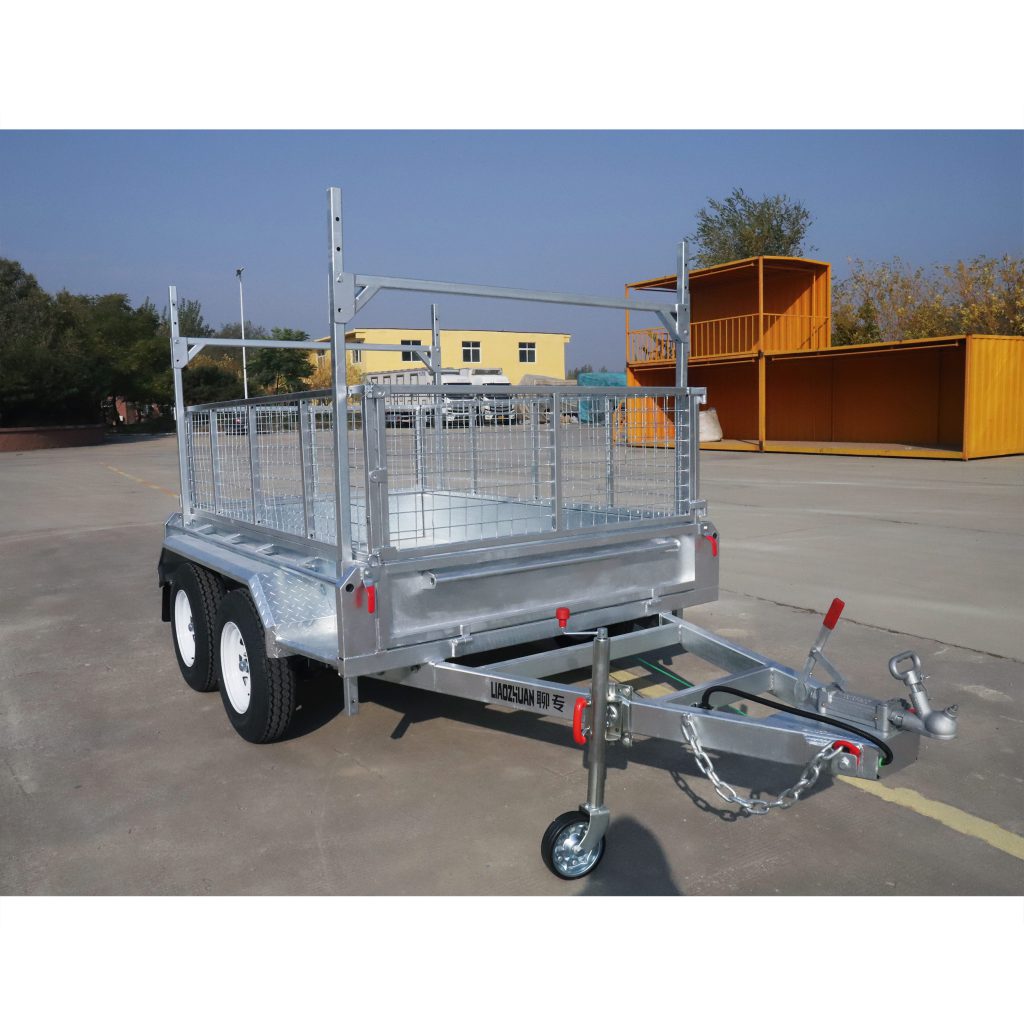

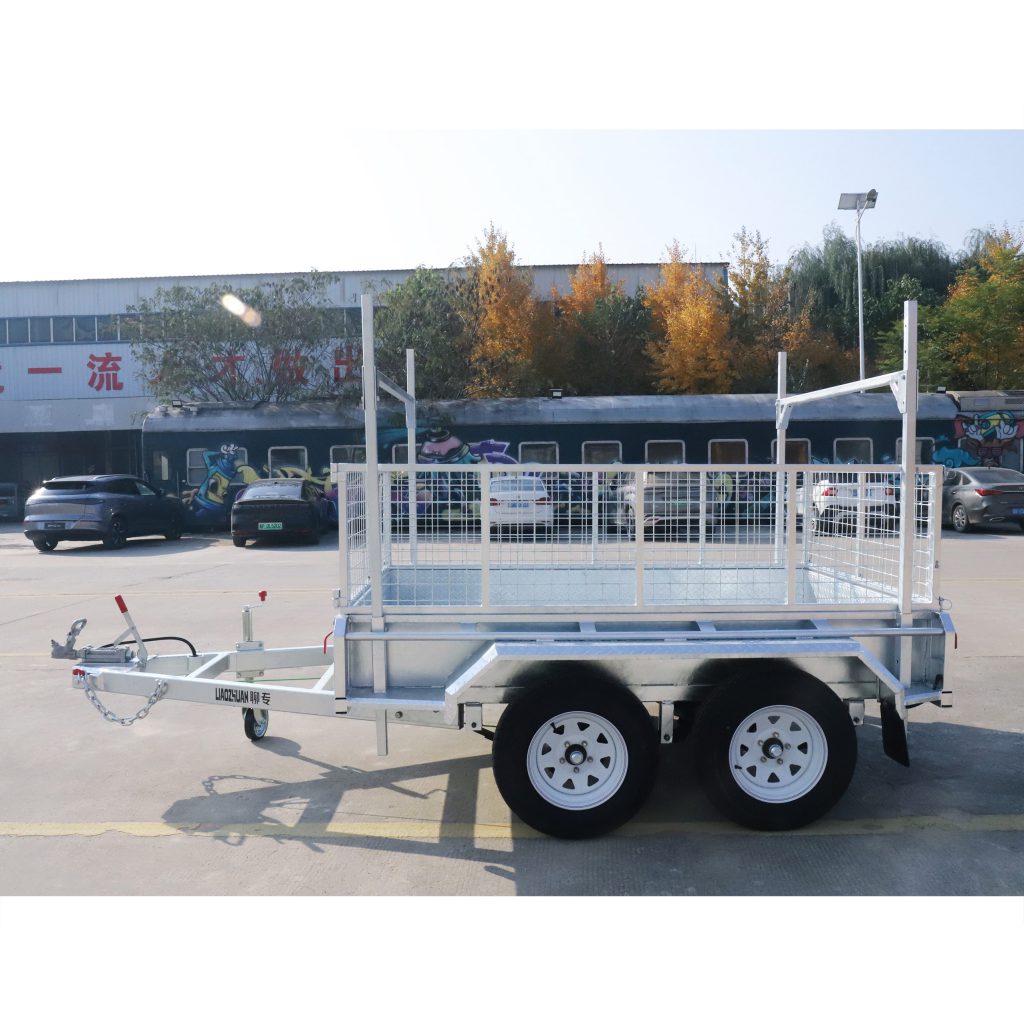

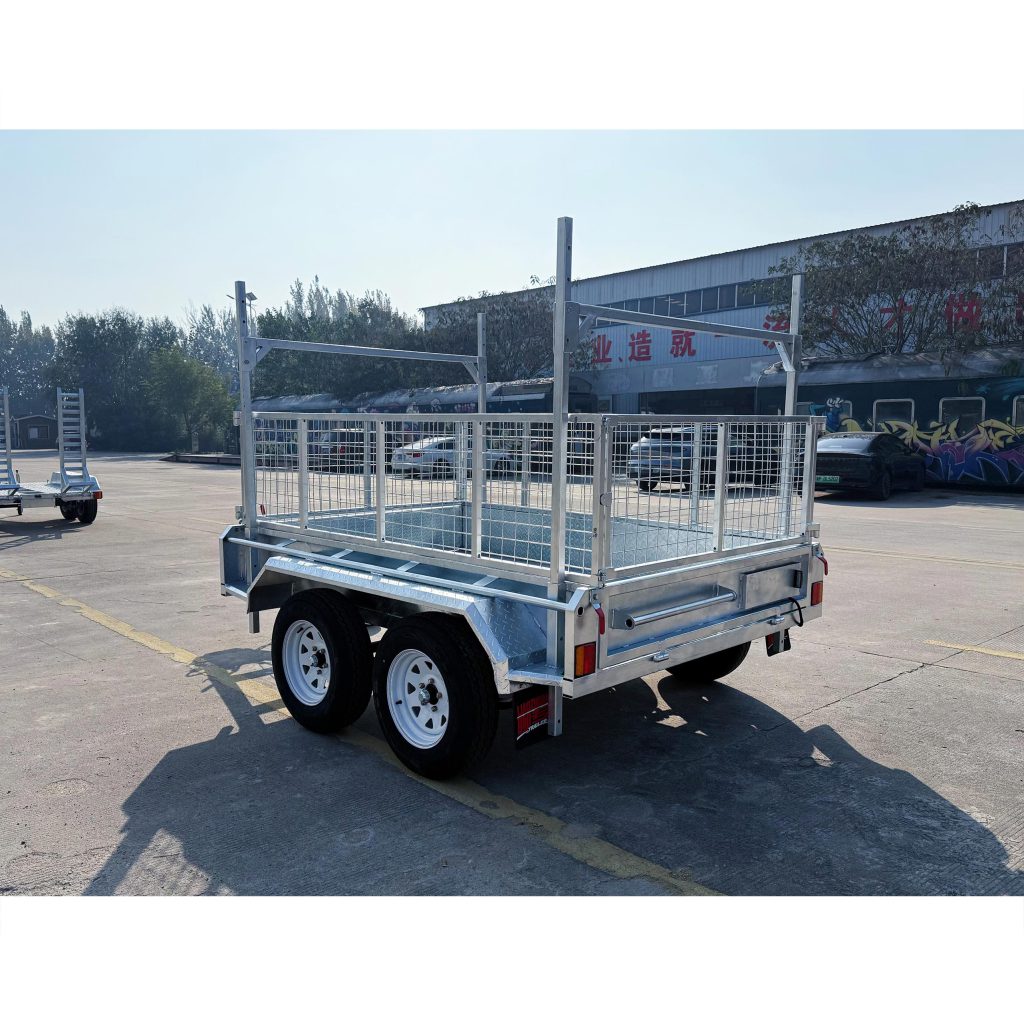

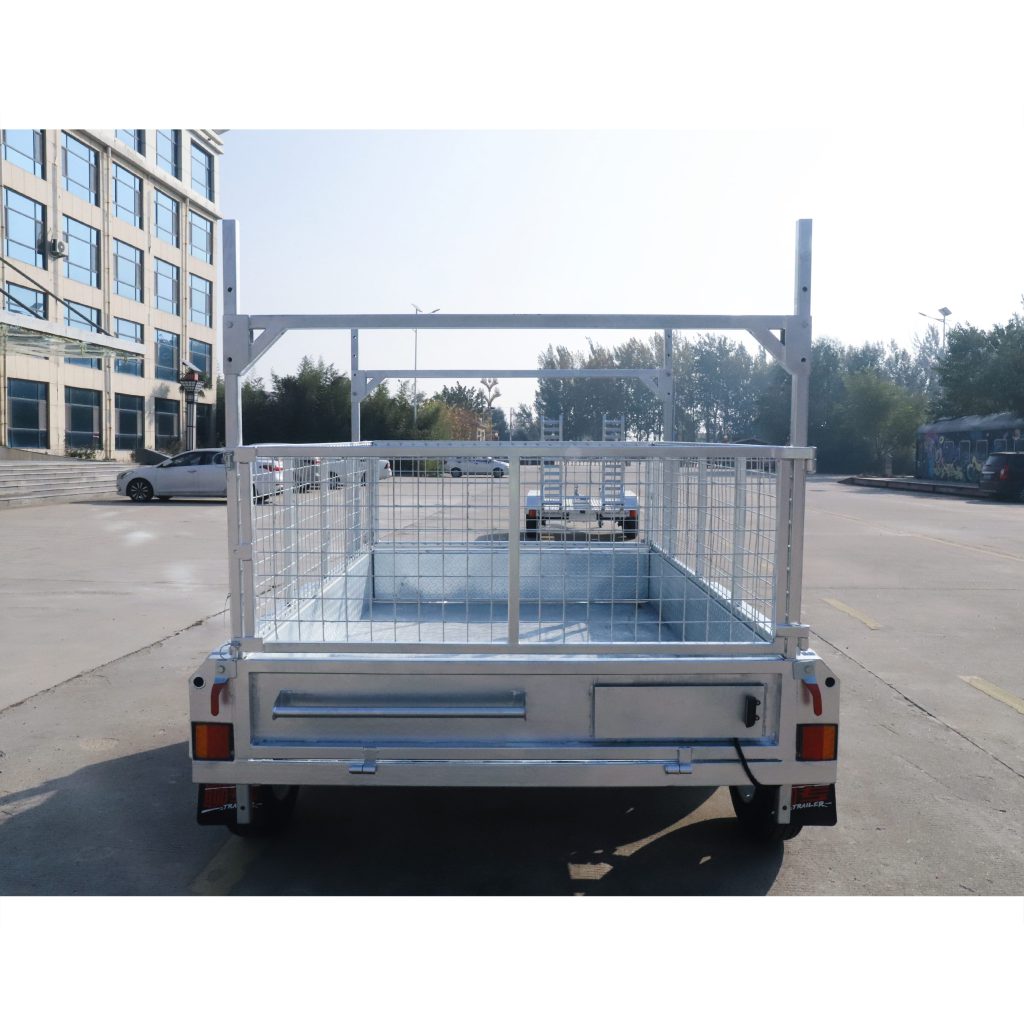

8×5 Tandem Axle Hot-Dip Galvanised Box Trailer 2000kg ATM H rack
Request a quoteSpecifications
Technical specifications
| Trailer dimensions | 4600*2700*800mm |
|---|---|
| Drawbar | 100*50*3.75 ，1500 long |
| Internal dimensions | 2365*1520*300mm+600mm |
| H rack | 2160*1730mm (Height adjustable) |
| Surface treatment | Hot-dip galvanizing |
| Fully Welded Body & Chassis | yse |
| Removable front and rear drop-down doors | yes |
| Color | Silver |
| Light | LED ADR light |
| Axis | 45 square steel bars |
| ATM | 2000kg |
| Rated load capacity | 1400kg |
| Weight of the skin | 680kg |
| Guide wheel | 8 inch |
| Patterned panel | 2.3Pattern |
| Spring | 6 pieces |
| Beam | 50*50*3 |
| Tire | 185R14LT |
| Swing wheel | 8 inches, operable |
| Brake | Collision brake |
| Plug | 7 Pin, Flat/ Small Round/ Big Round |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
