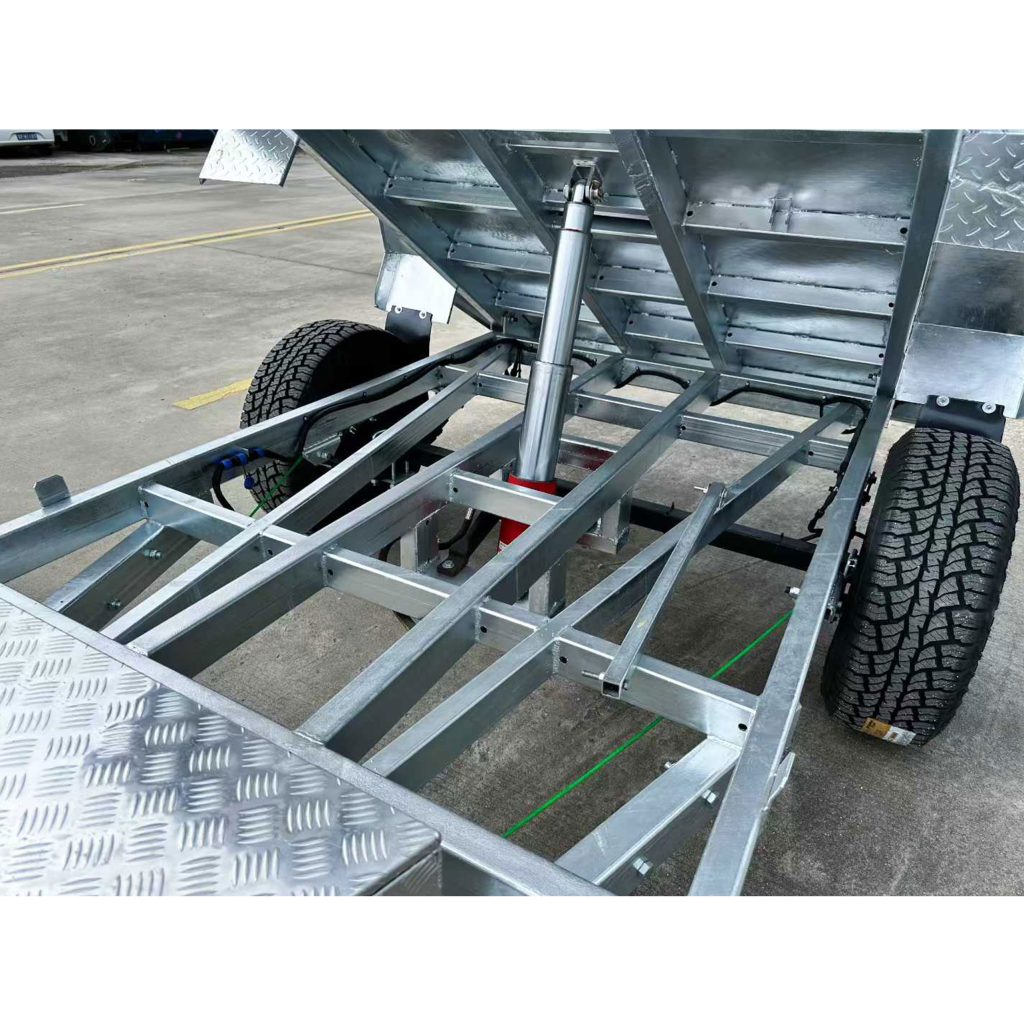

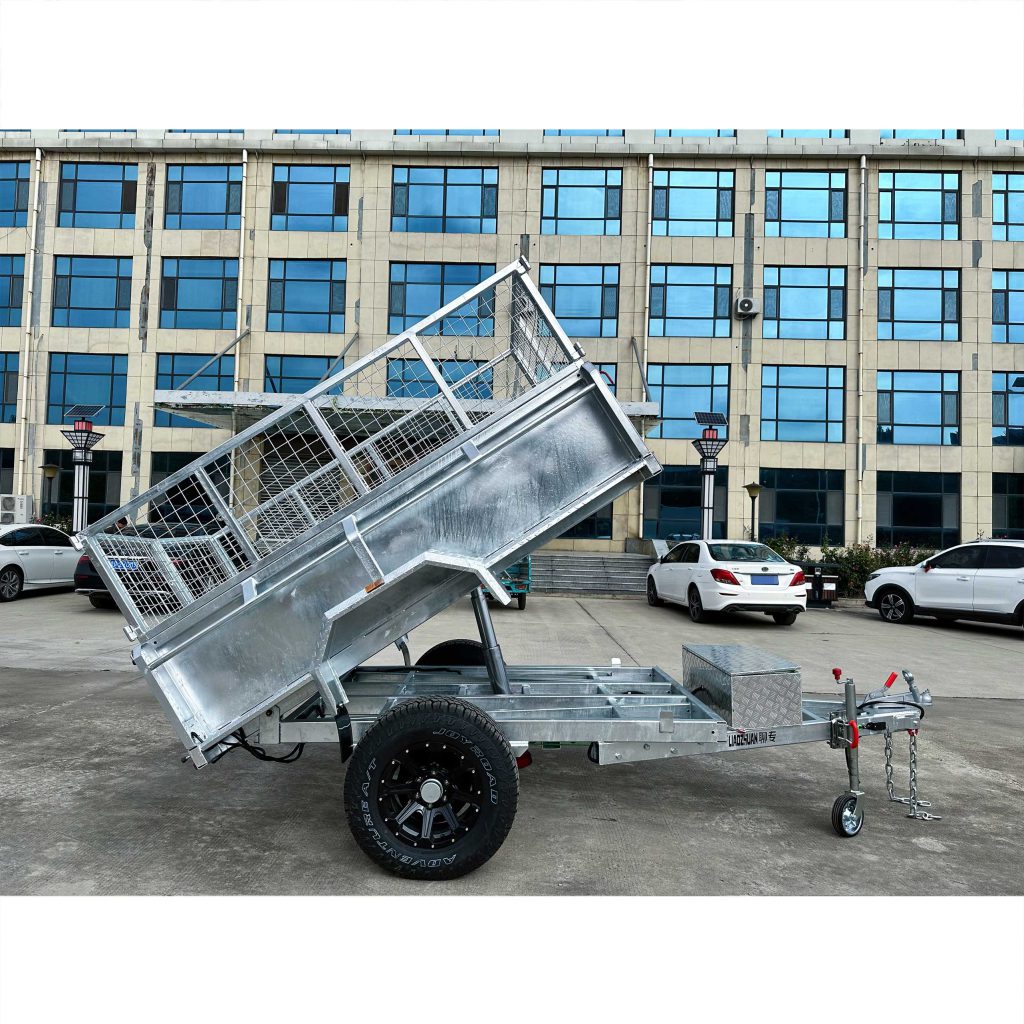

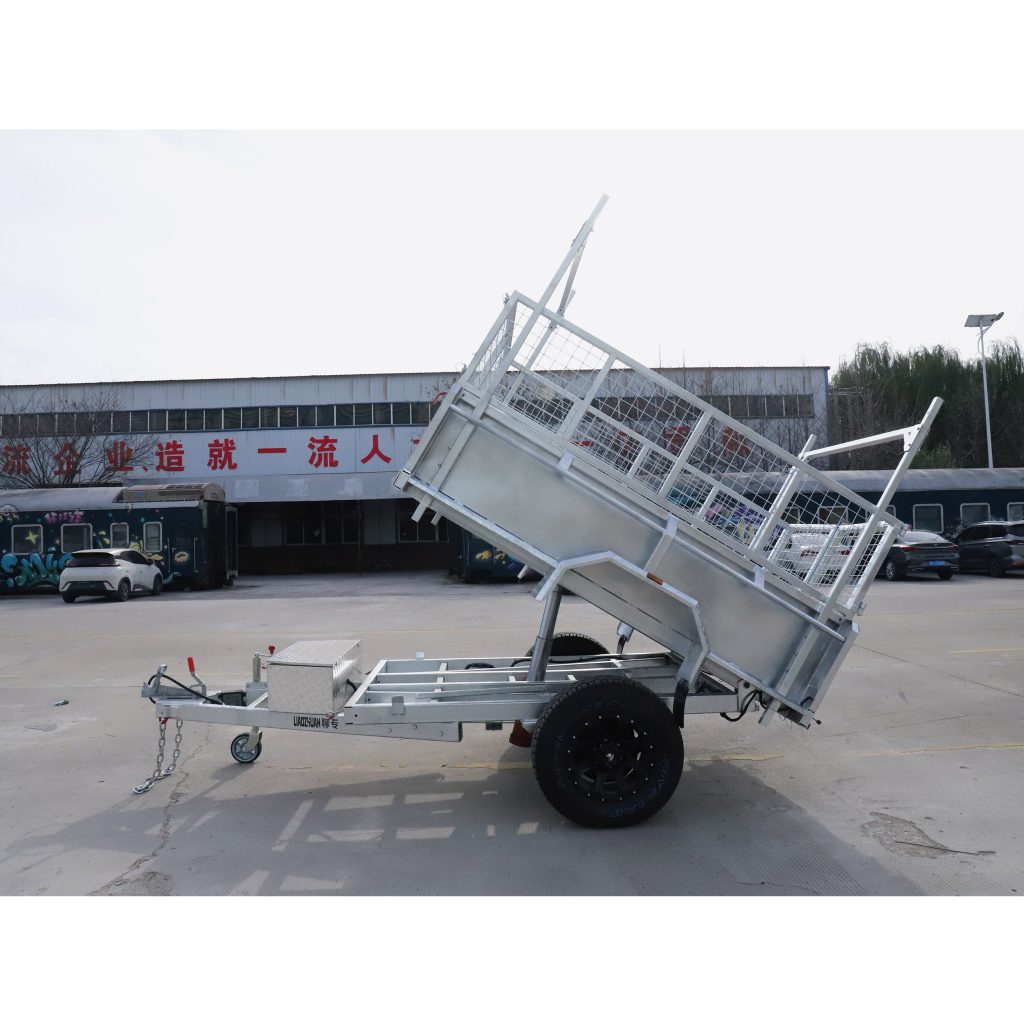

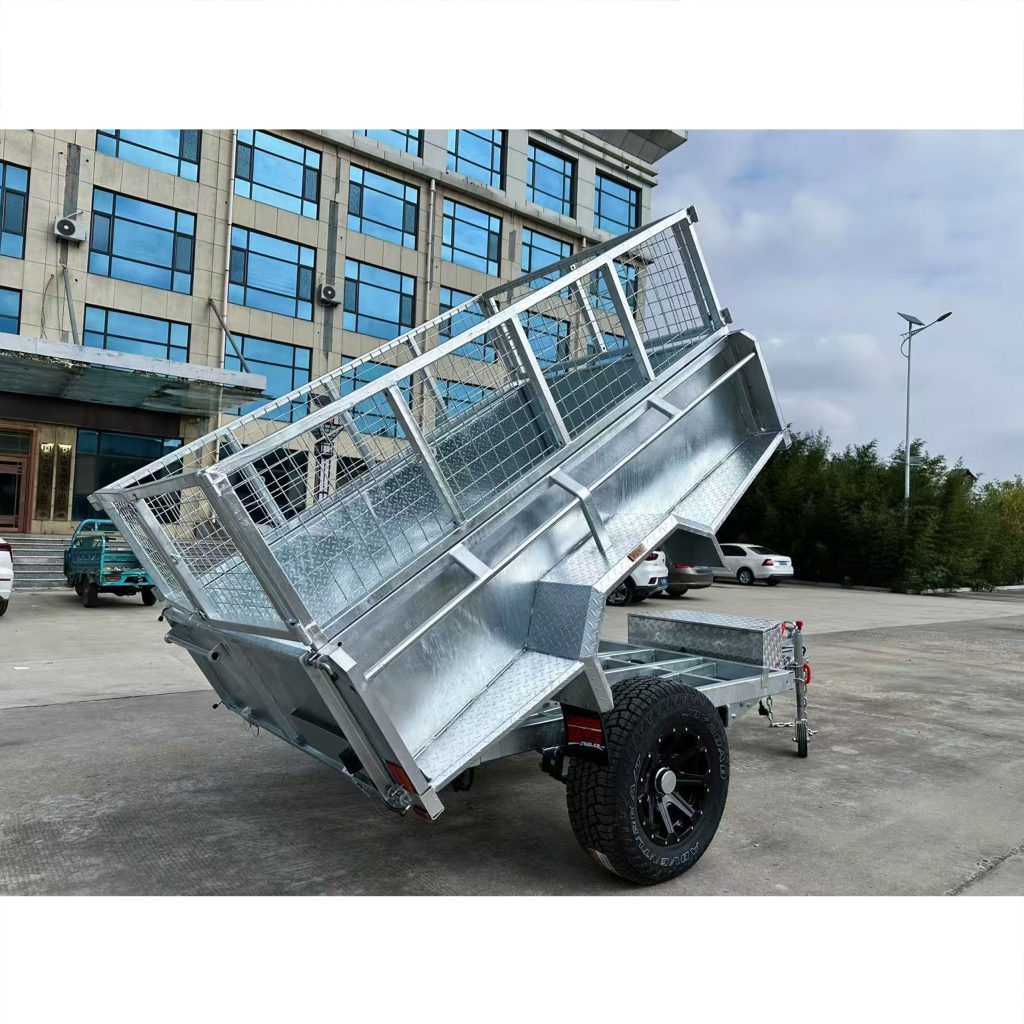

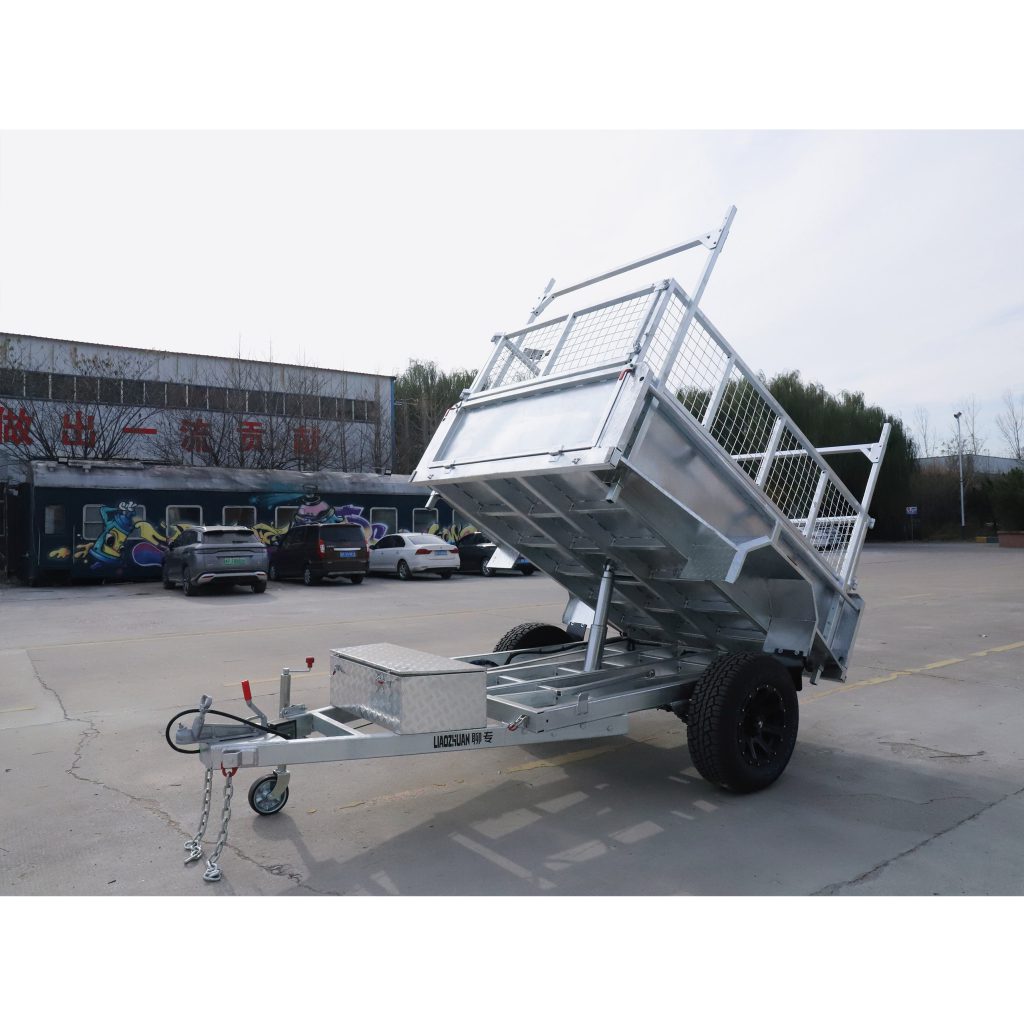

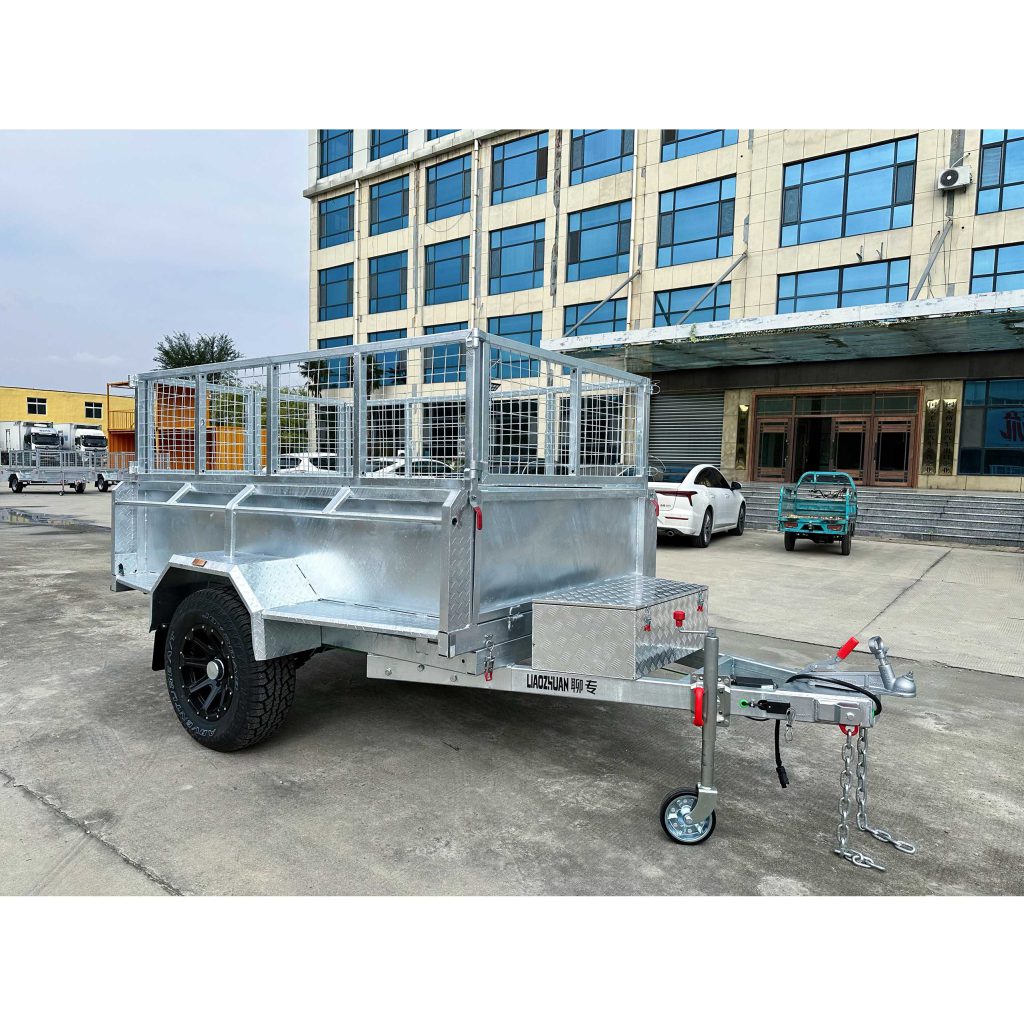

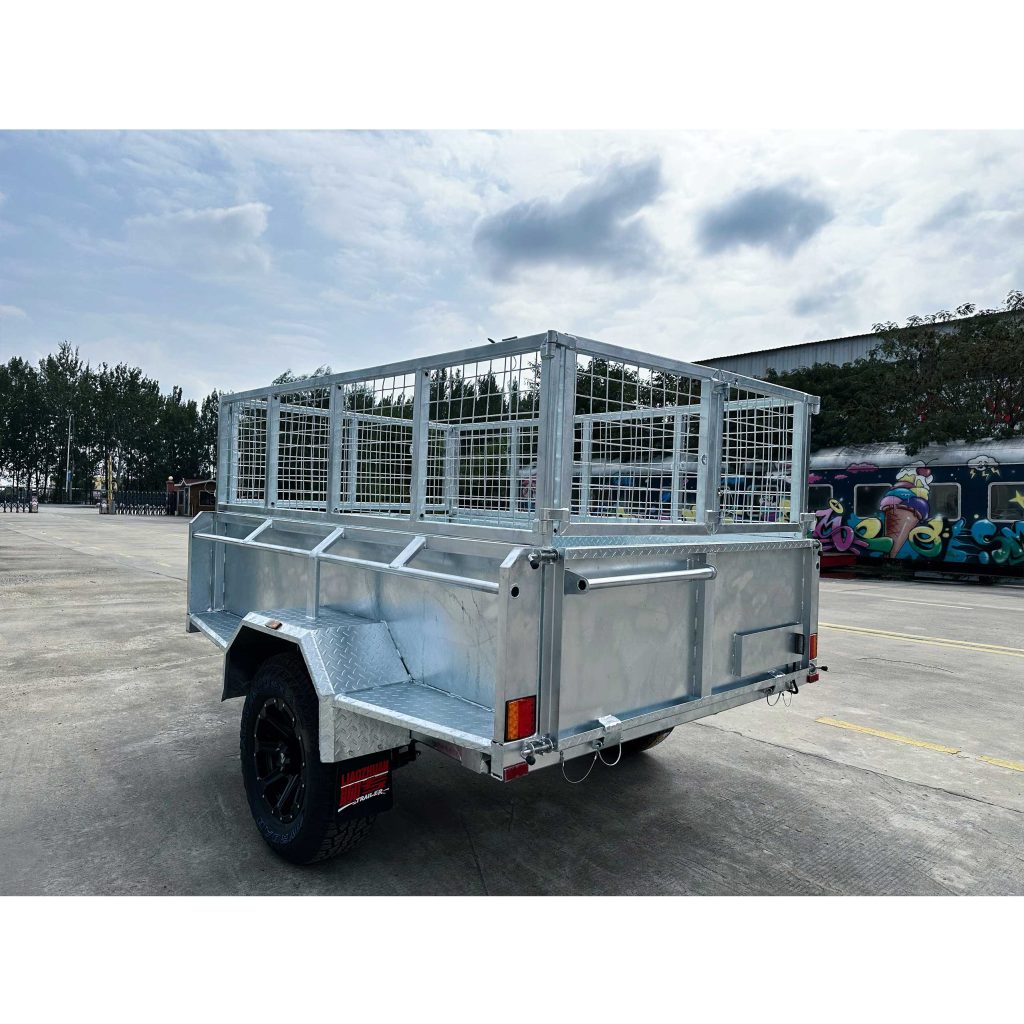

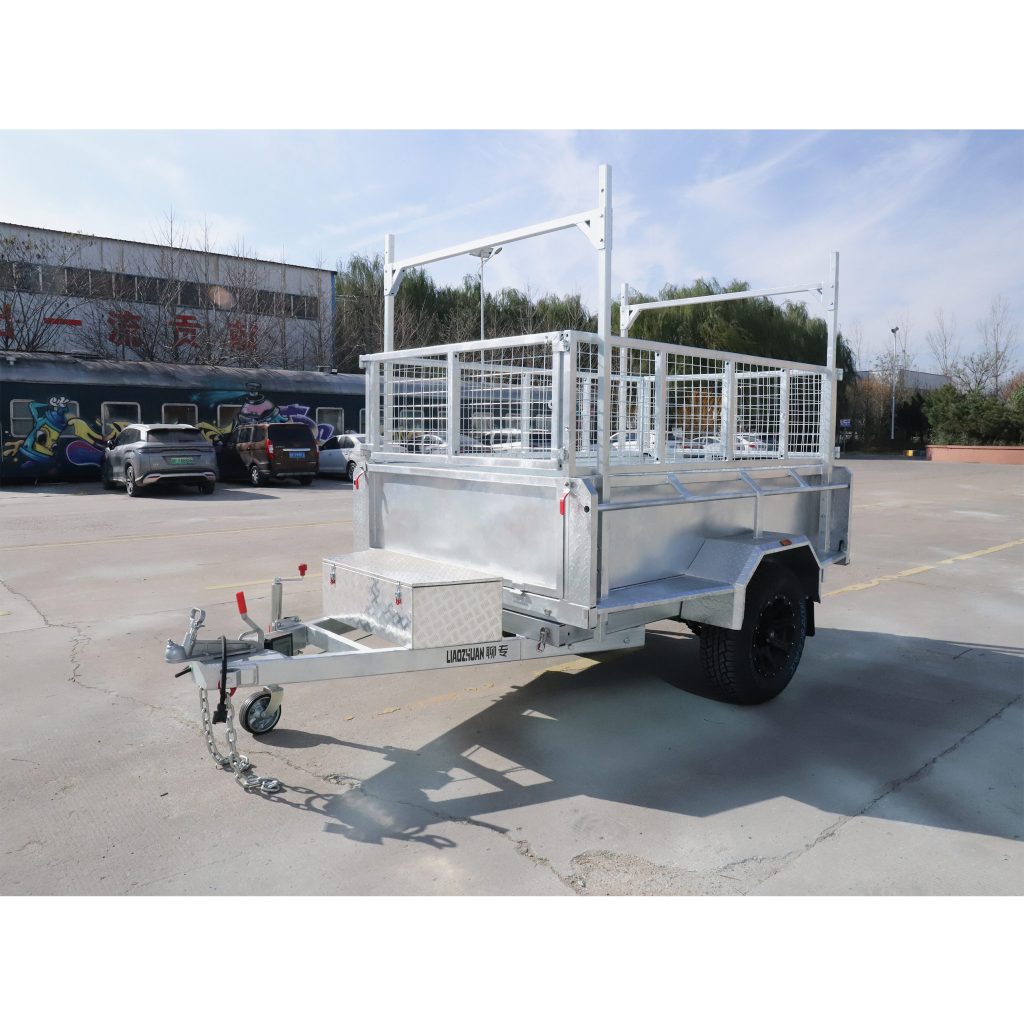

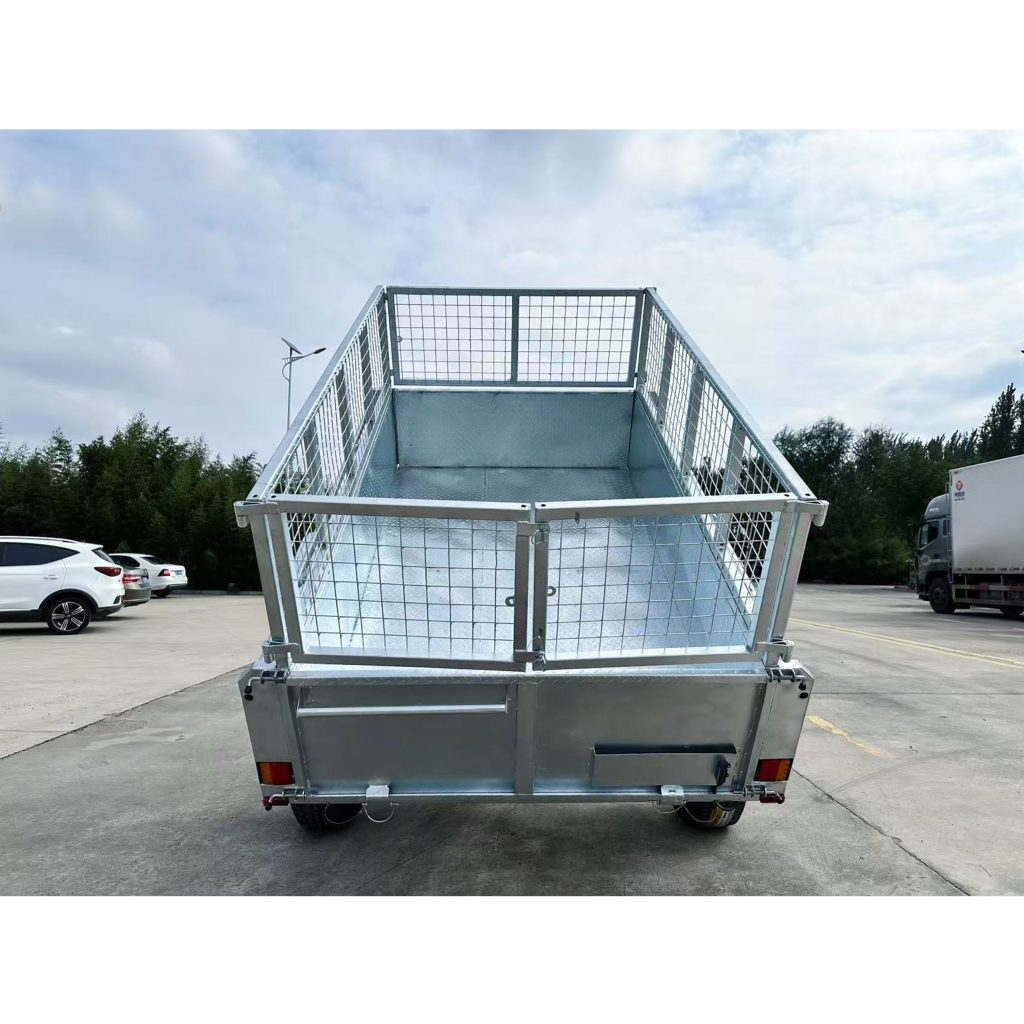

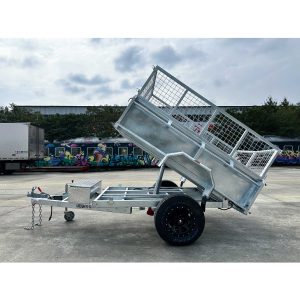

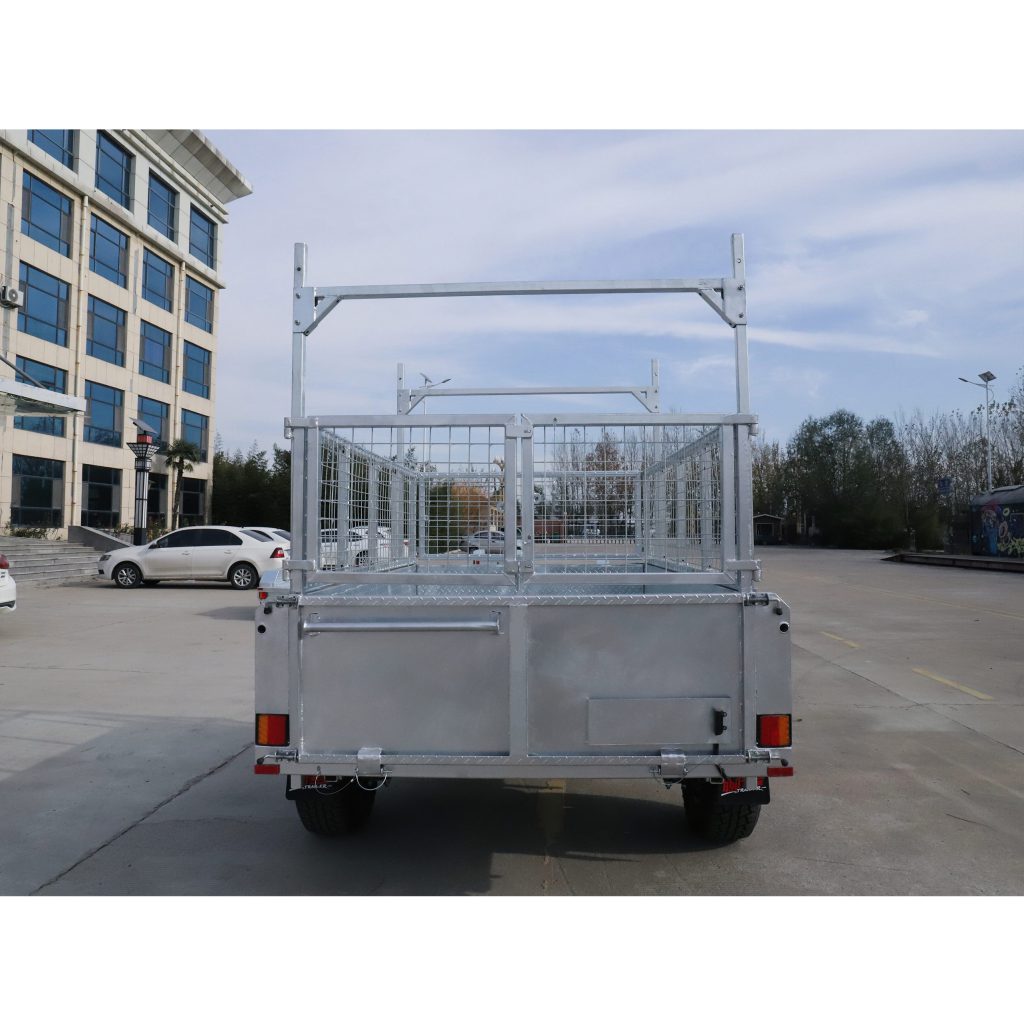

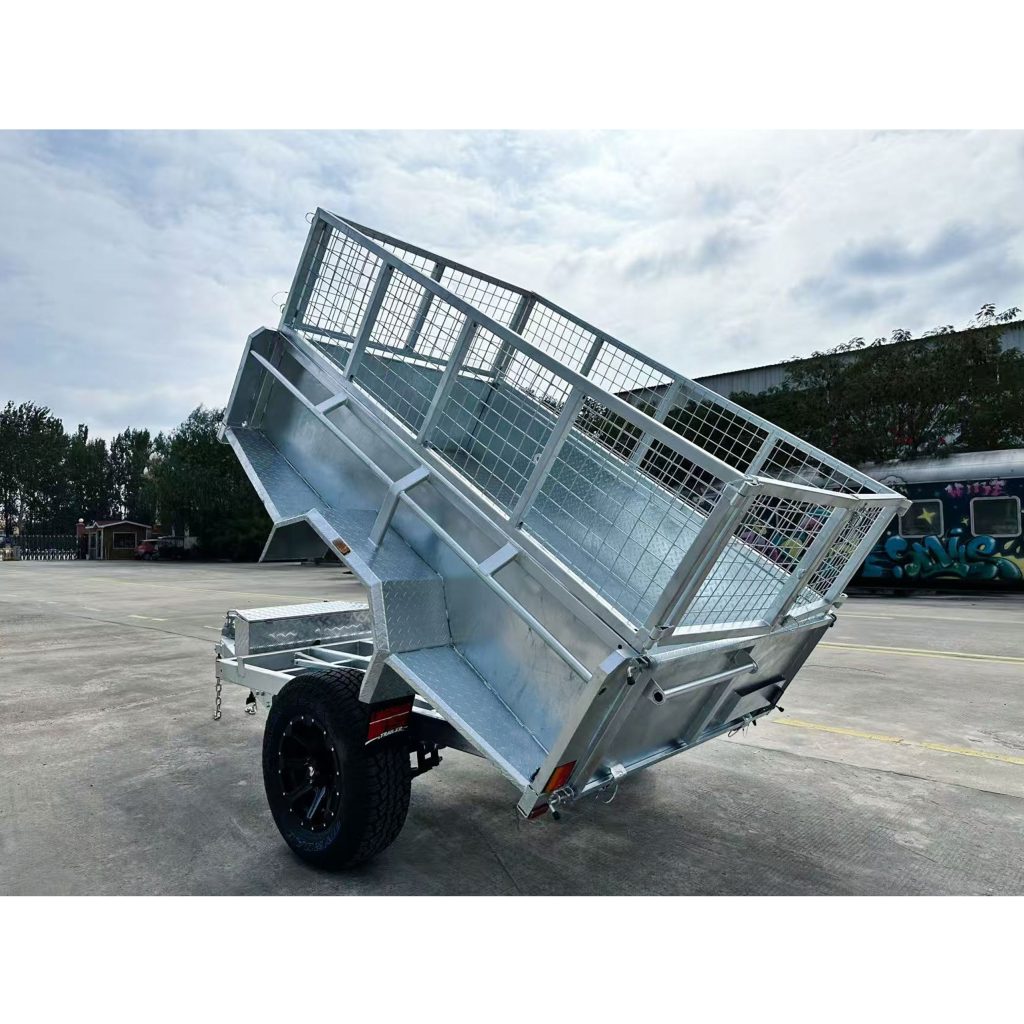

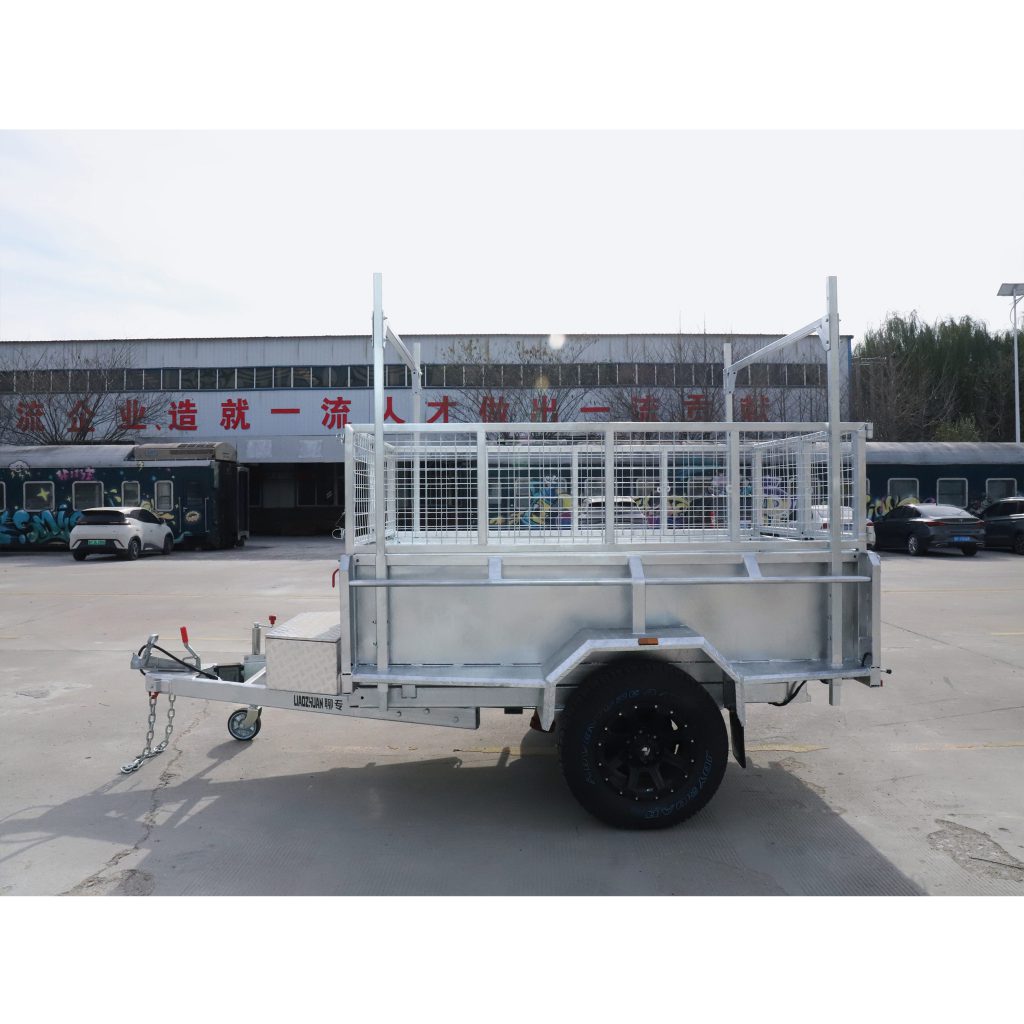

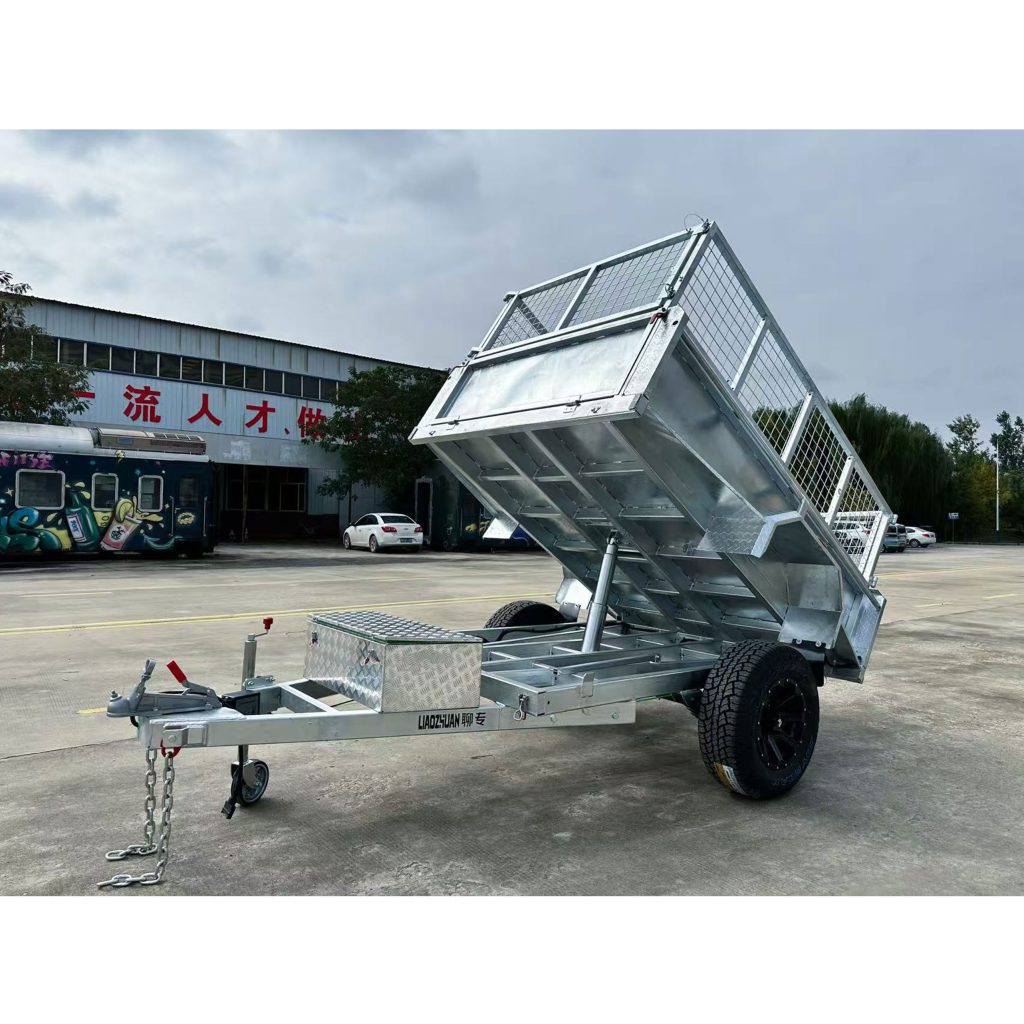

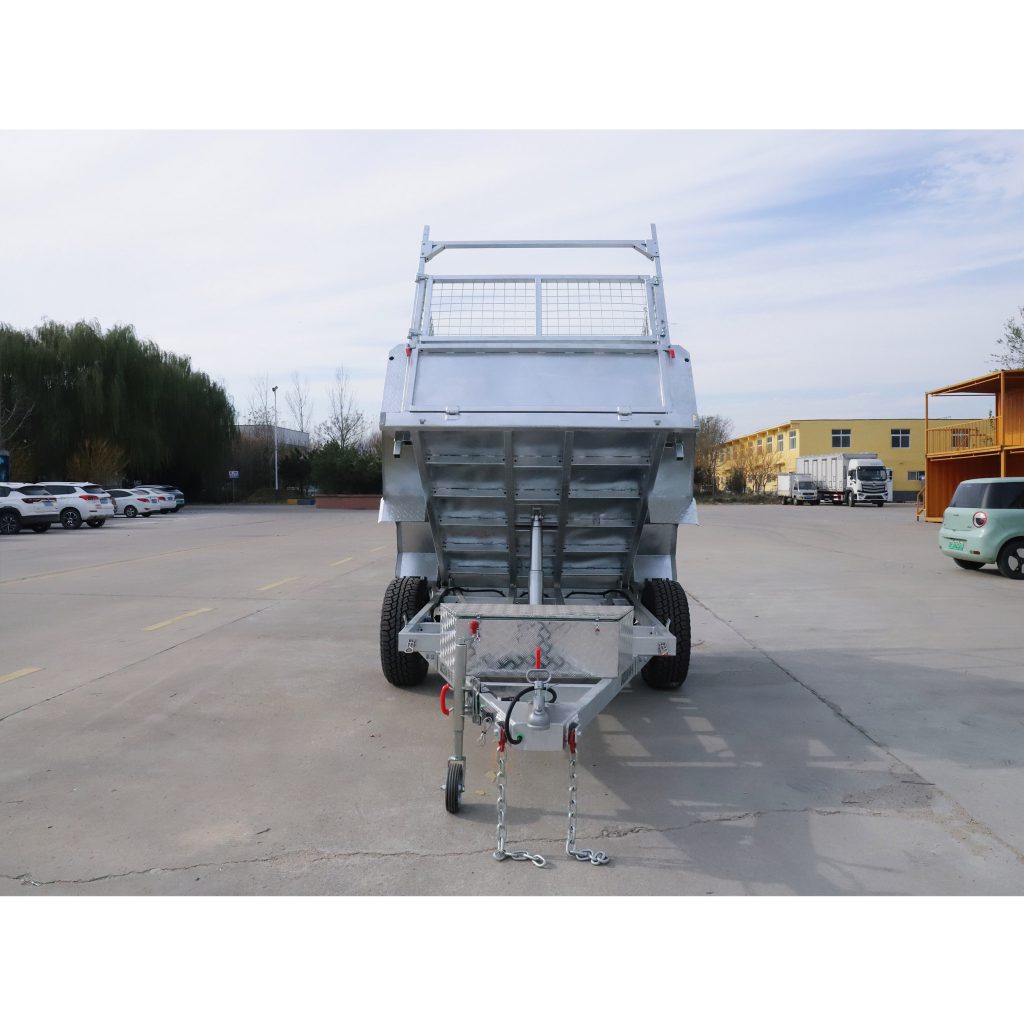

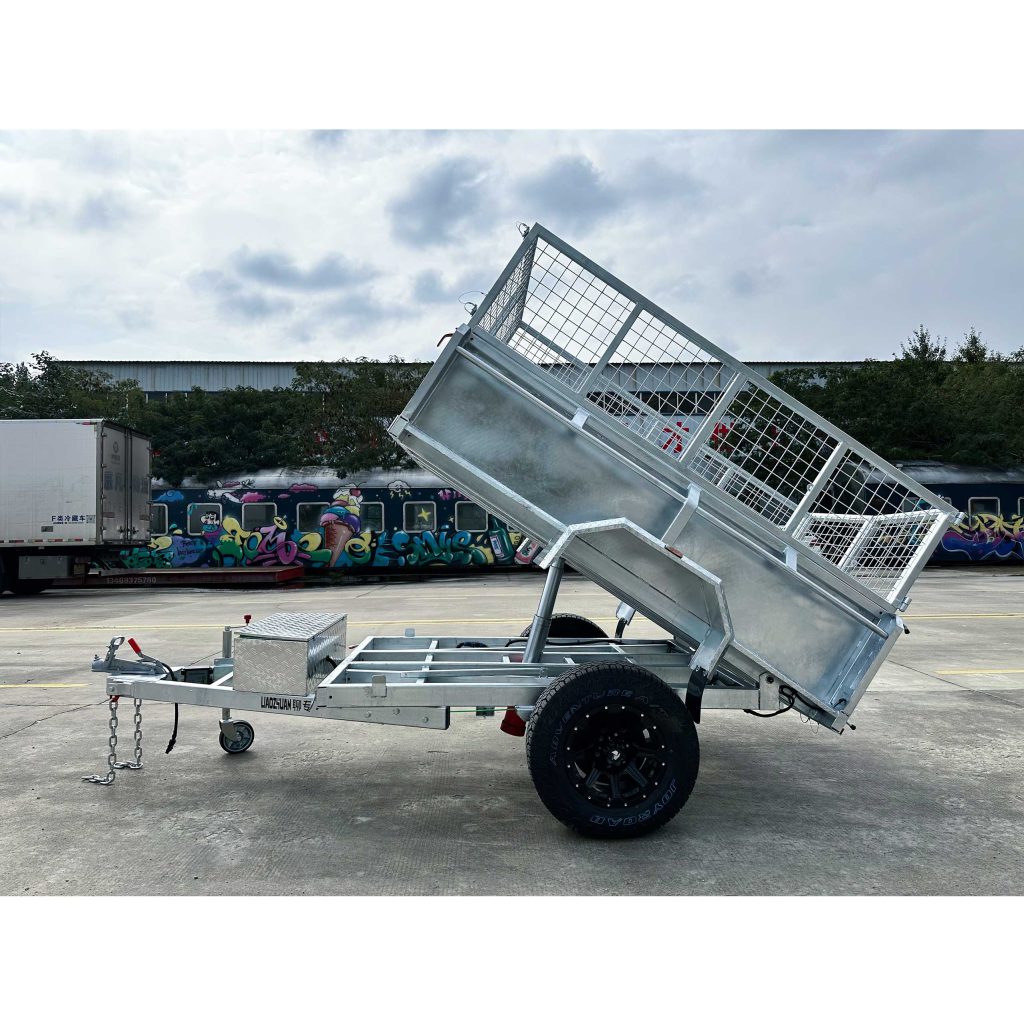

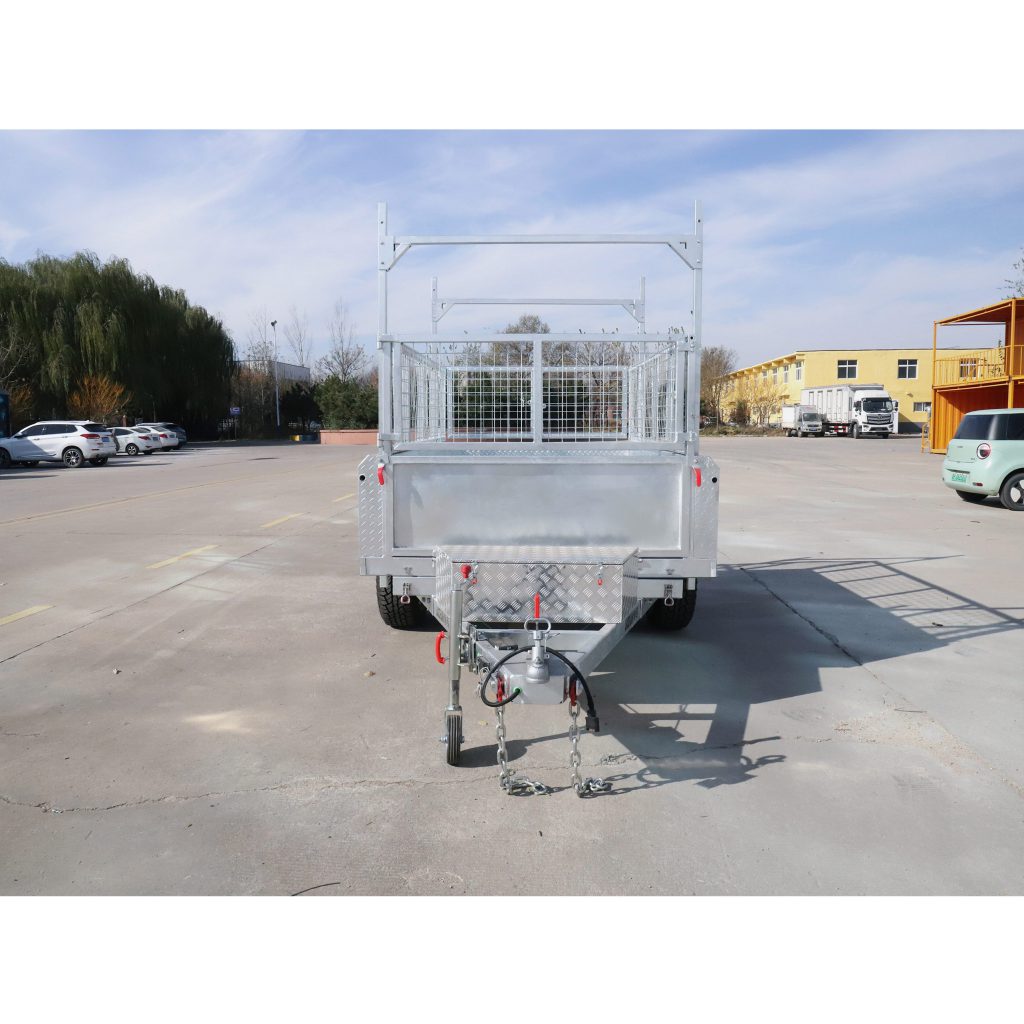

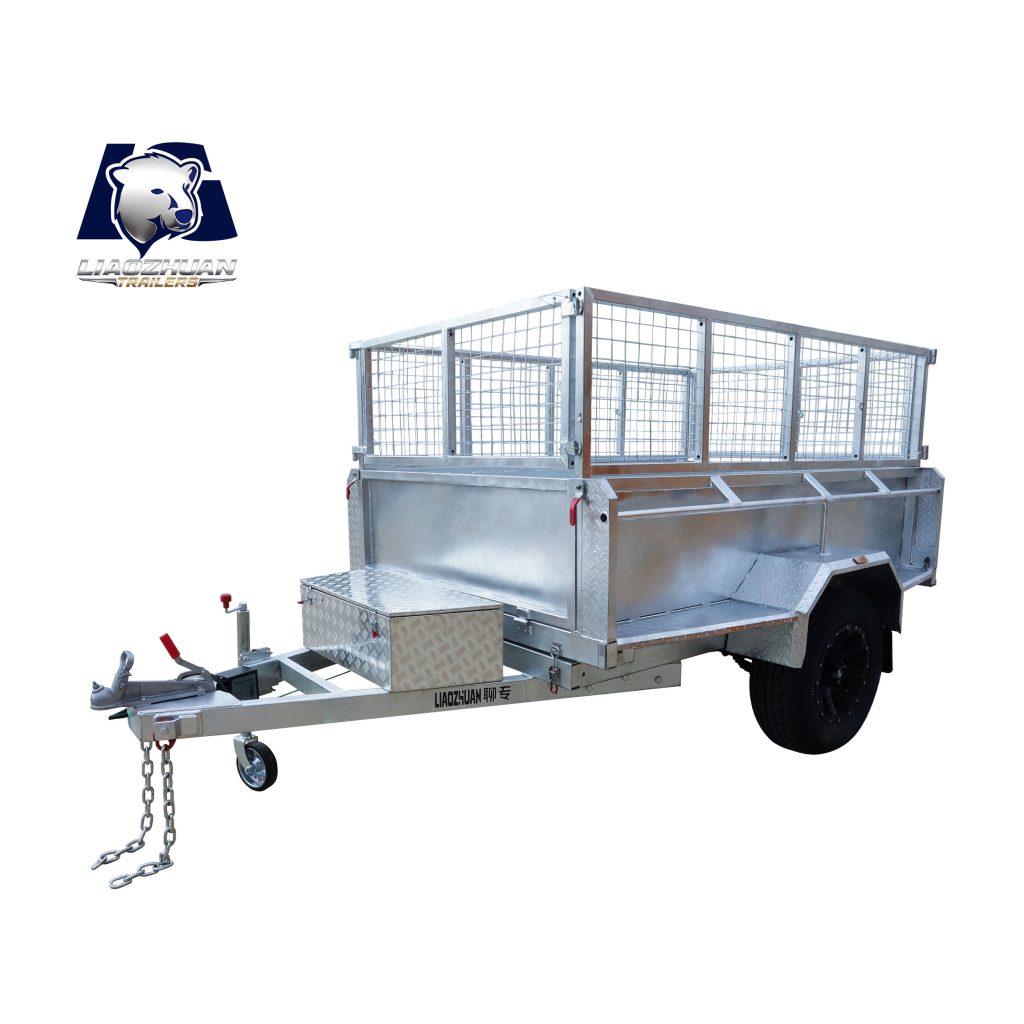

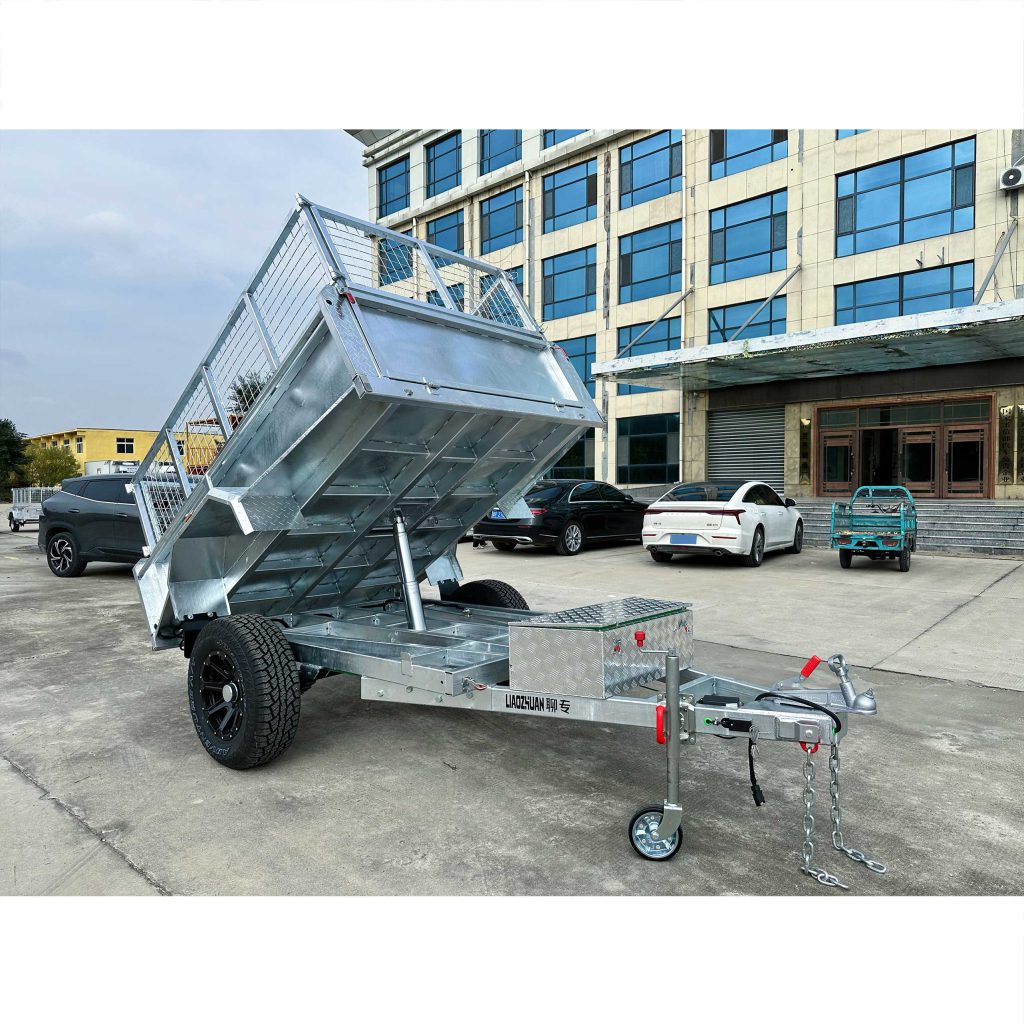

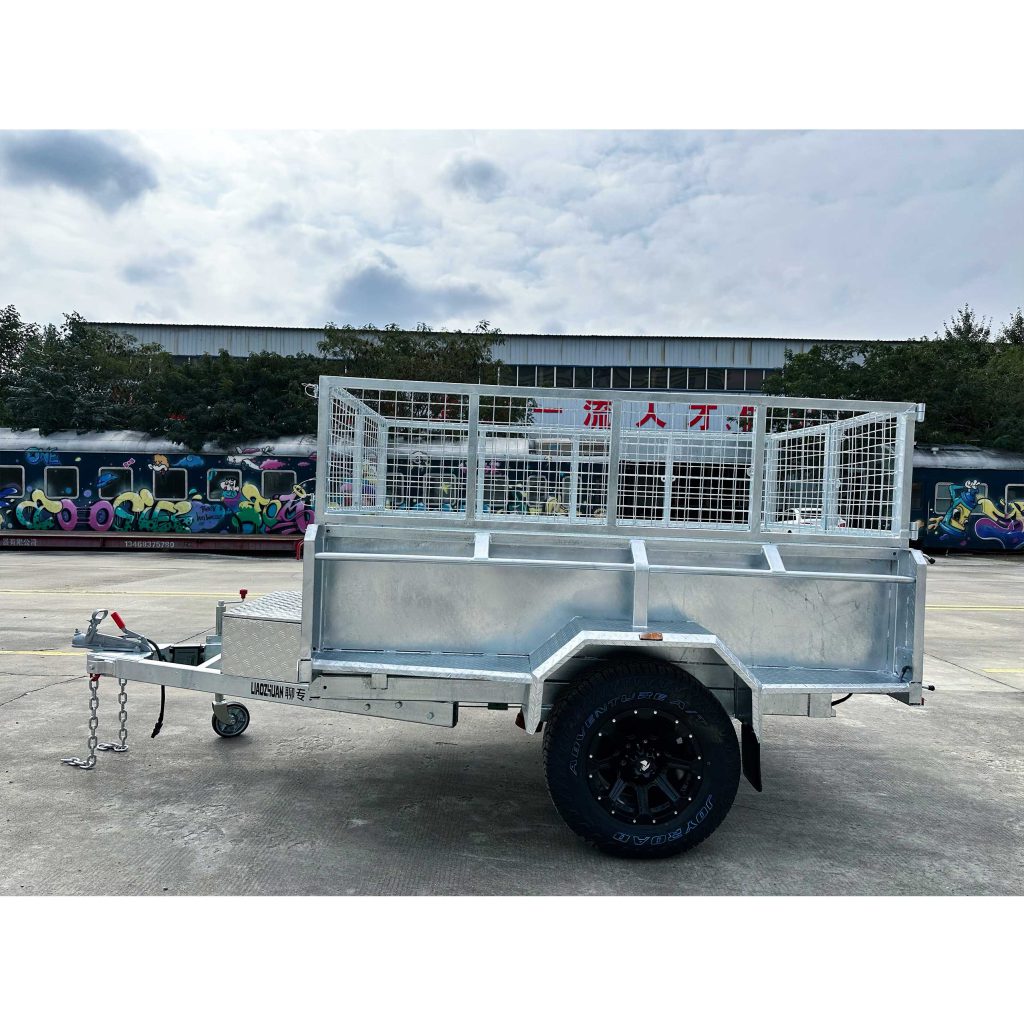

8×5 Hydraulic Single-axis Tipper Galvanised Box Trailer 2000kg ATM (Electric Brake)
Request a quoteSpecifications
Technical specifications
| Trailer dimensions | 3900mm*2170mm*1820mm |
|---|---|
| Drawbar | 100*50*3.75 ，1500 long |
| Internal dimensions | 2420mm*1530mm*520mm+600mm |
| H-frame applicable dimensions | 2070*1600mm |
| Surface treatment | Hot-dip galvanizing |
| Fully Welded Body & Chassis | yes |
| Removable front and rear drop-down doors | yes |
| Color | Silver |
| Light | LED ADR light |
| Axis | 60 square steel bars |
| ATM | 2000kg |
| Rated load capacity | 1020kg |
| Weight of the skin | 980kg |
| Guide wheel | 8 inch |
| Patterned panel | 2.3Pattern |
| Inclined fuselage | yes |
| Border | 2.3Pattern |
| Cage | 40*40 square tube 63*60*4 grid |
| Spring | 9 pieces |
| Beam | 80*40*2.5 |
| Tire | 245 off-road tires |
| Swing wheel | 8 inches, operable |
| Brake | 12-inch dual electric brakes |
| Optional toolbox | Aluminum |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
