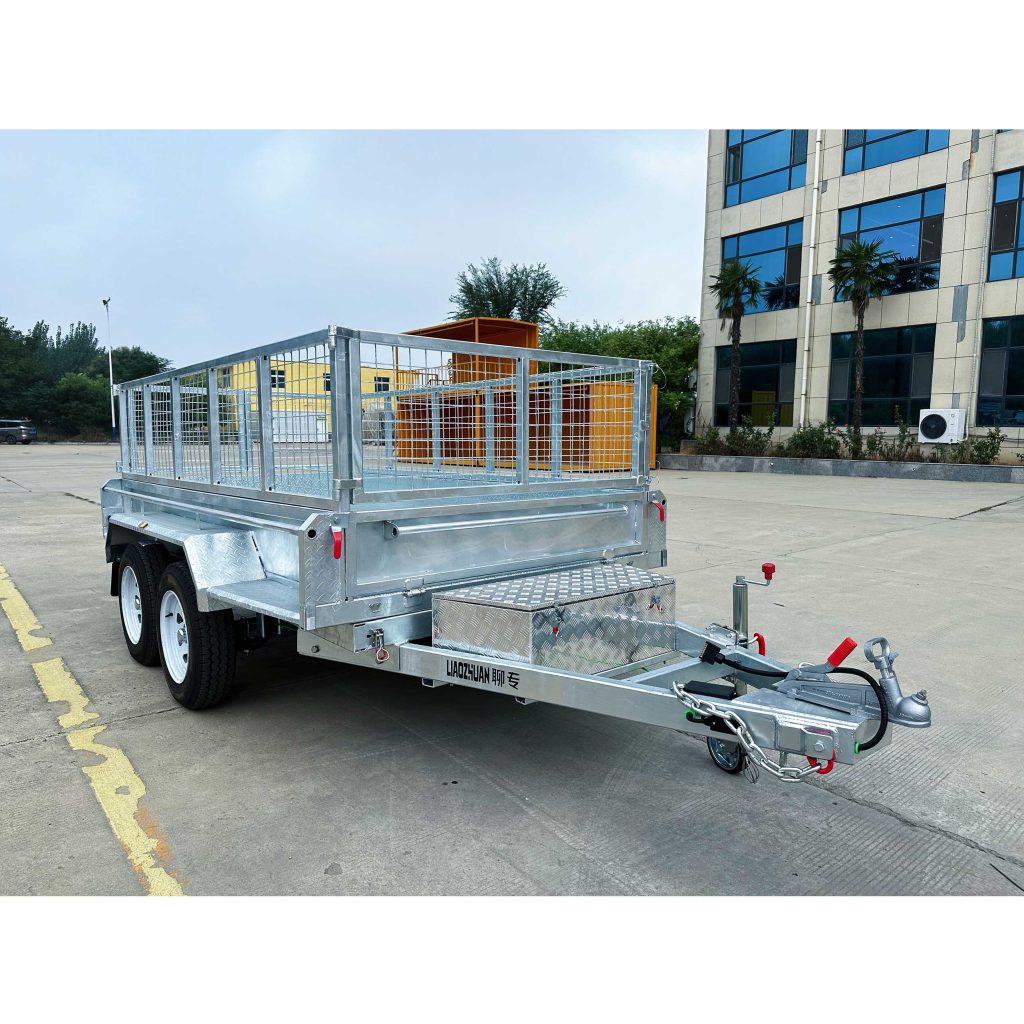

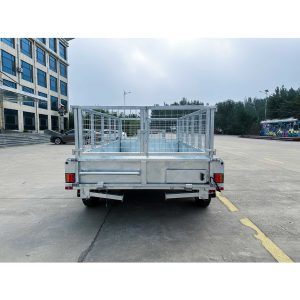

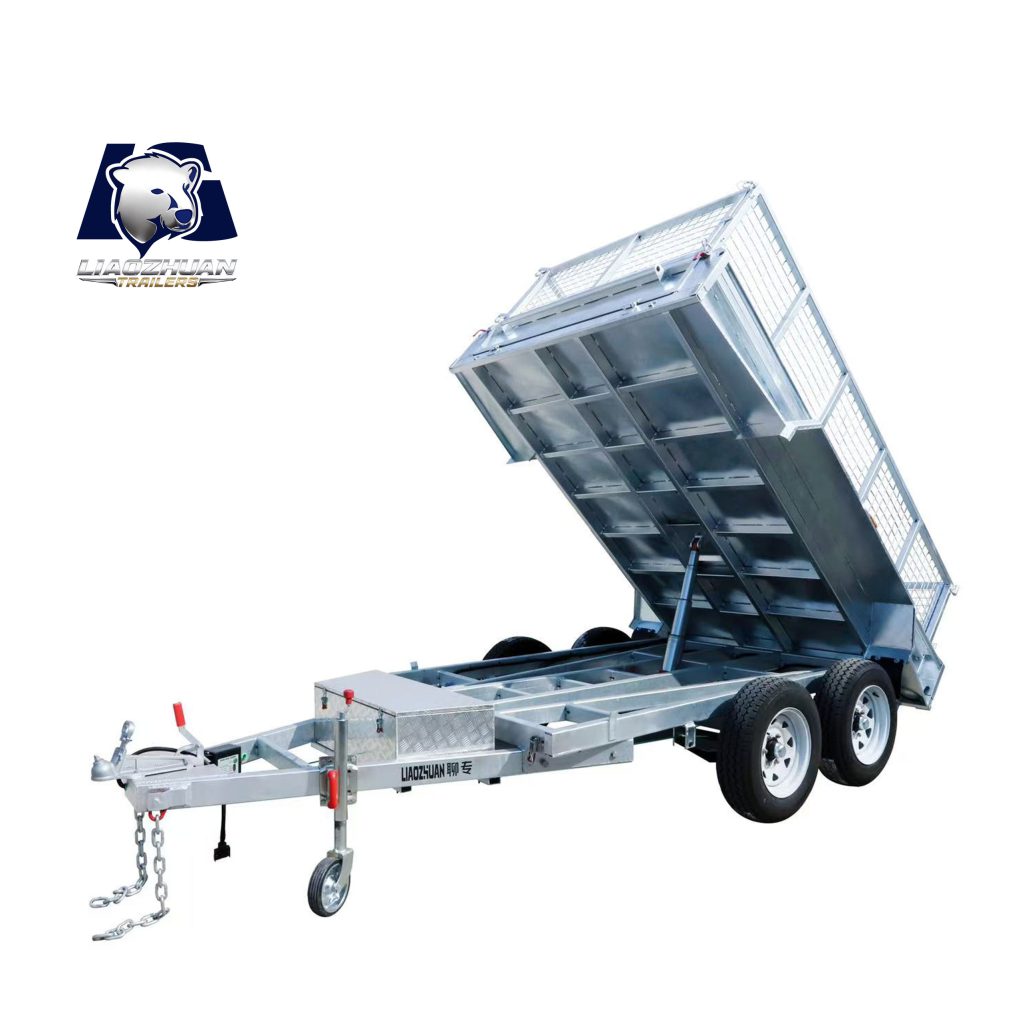

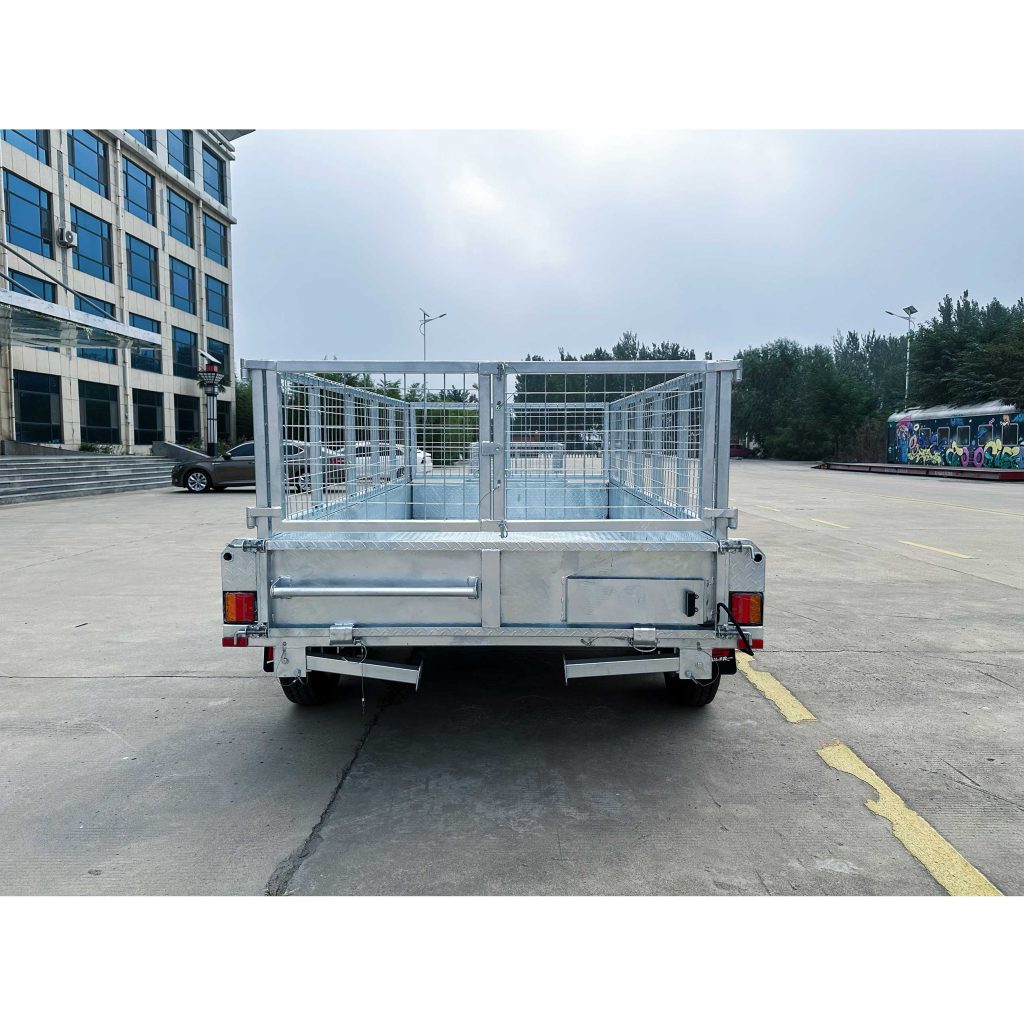

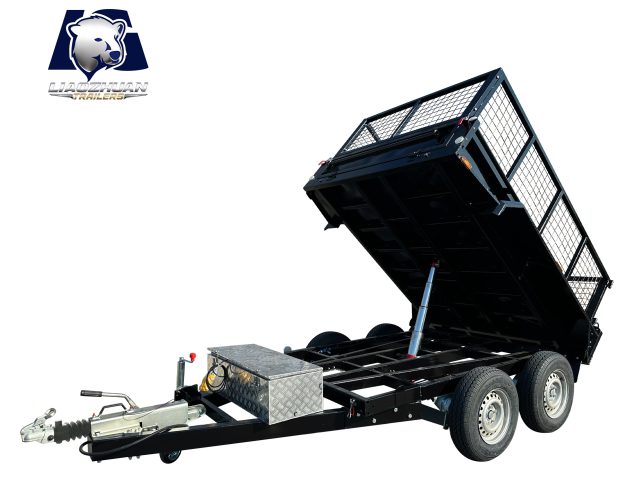

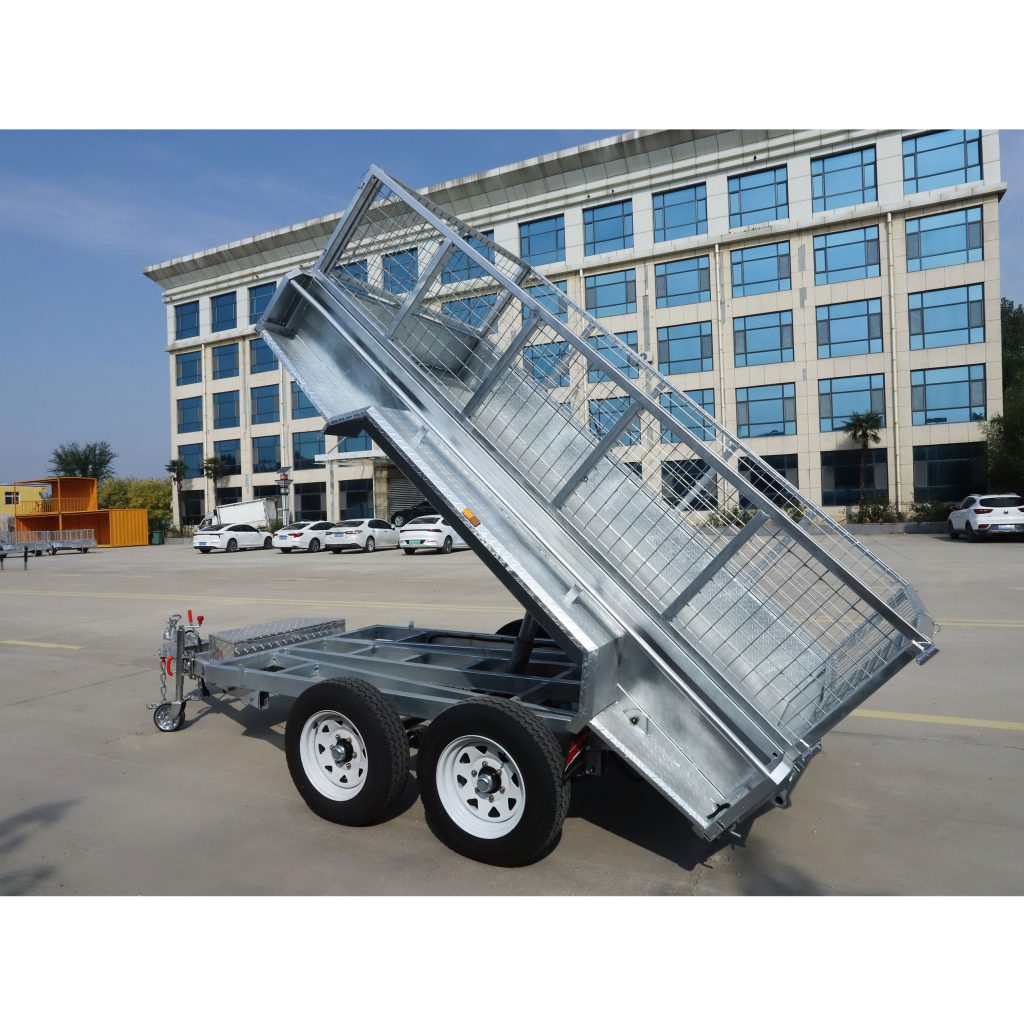

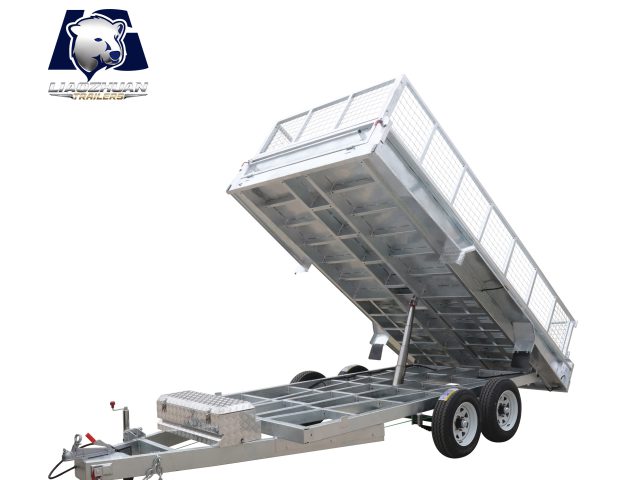

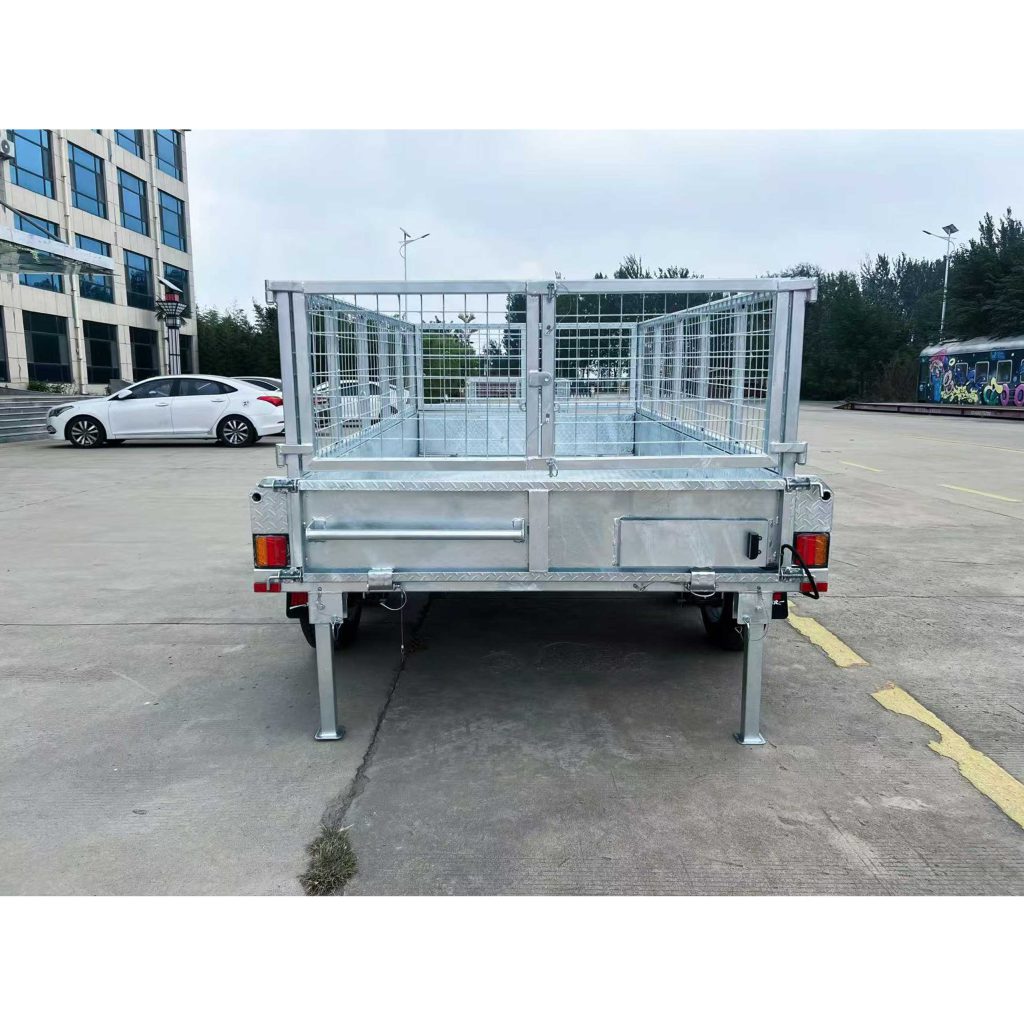

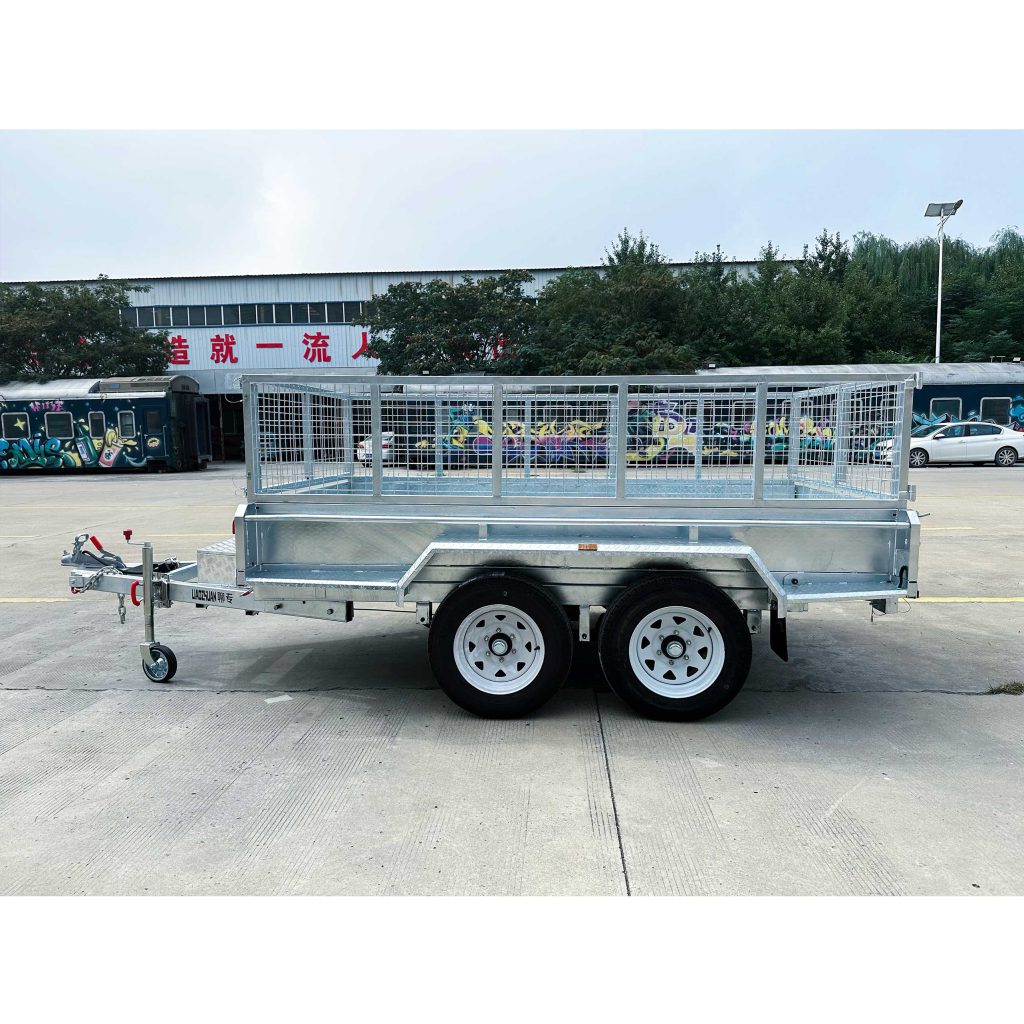

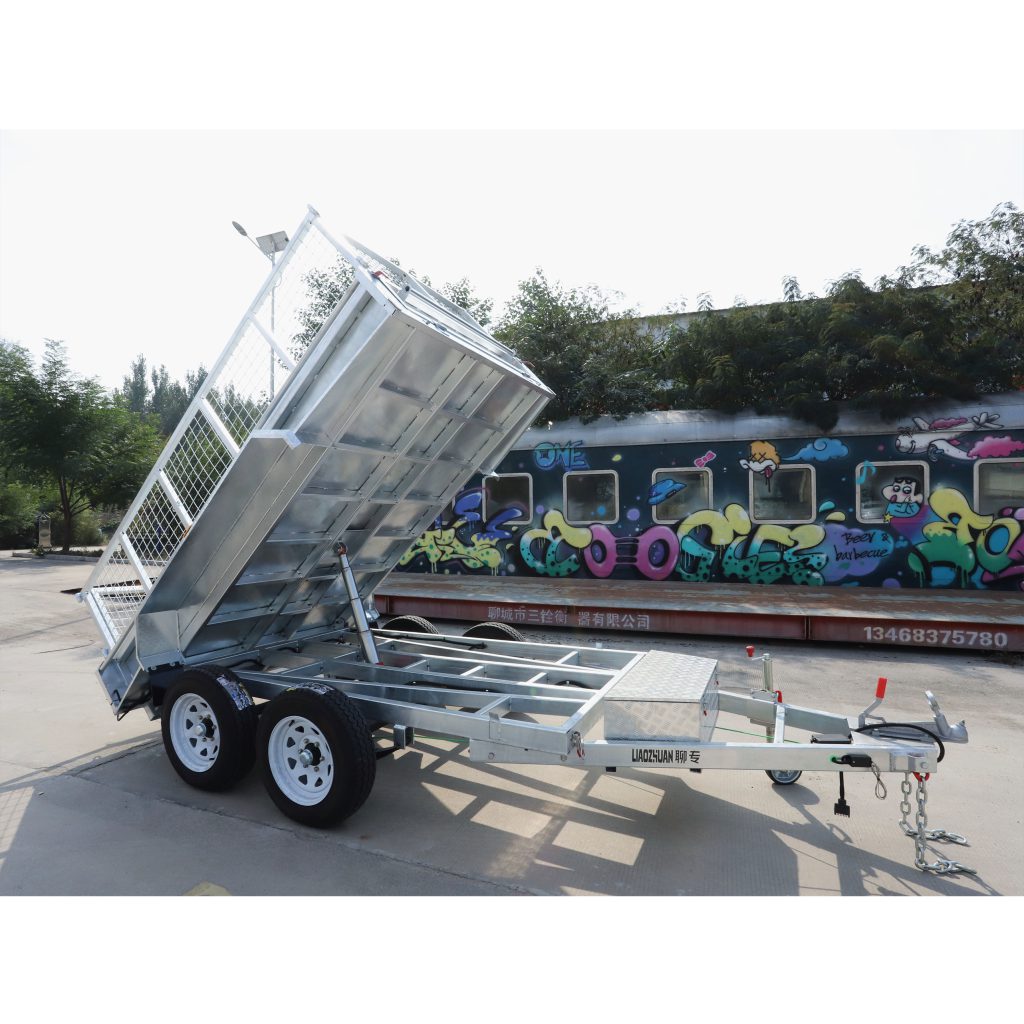

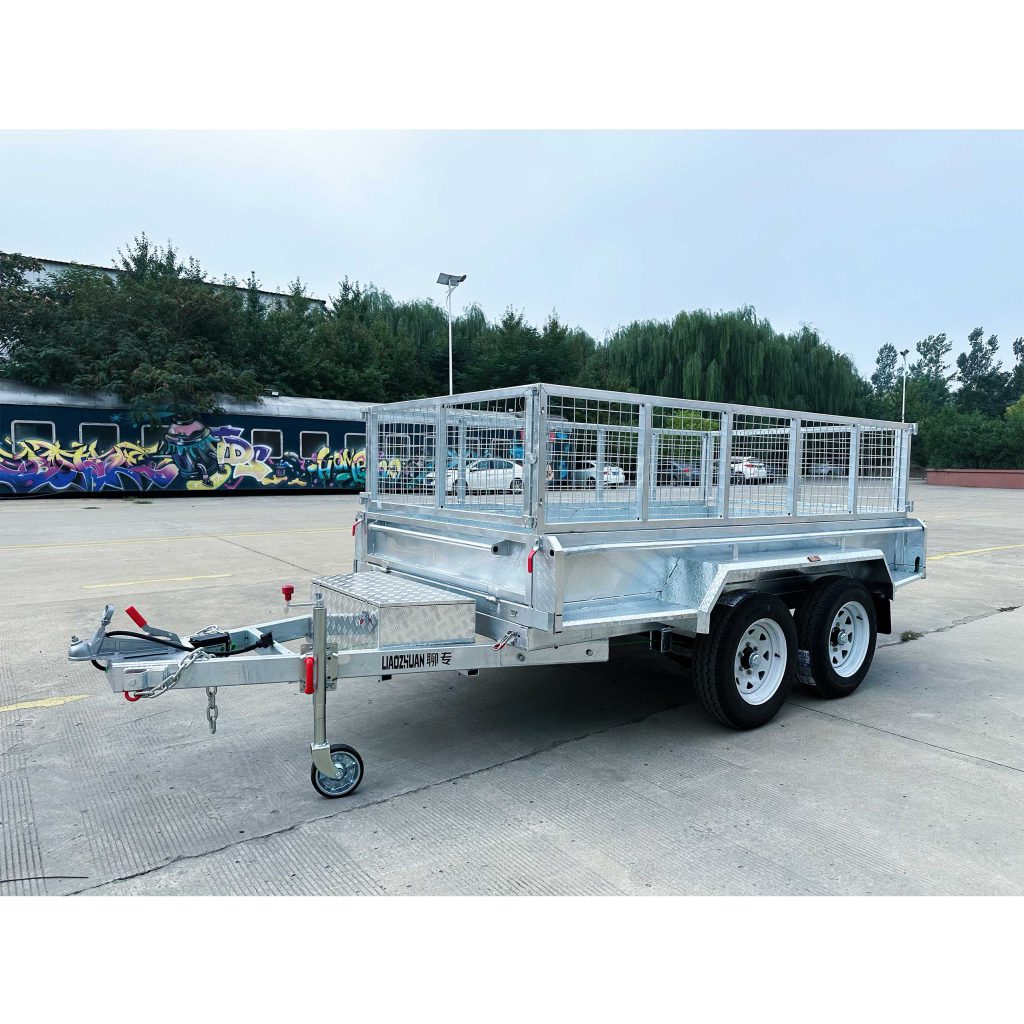

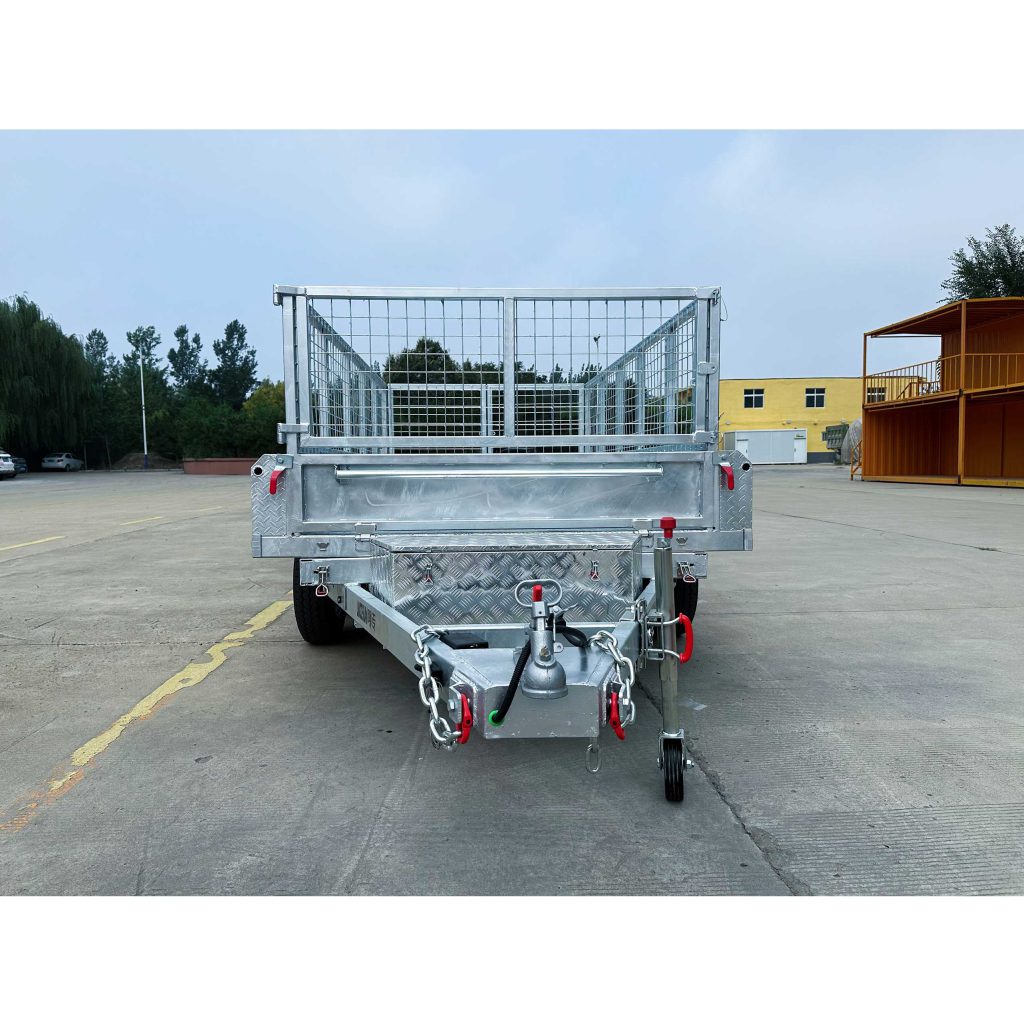

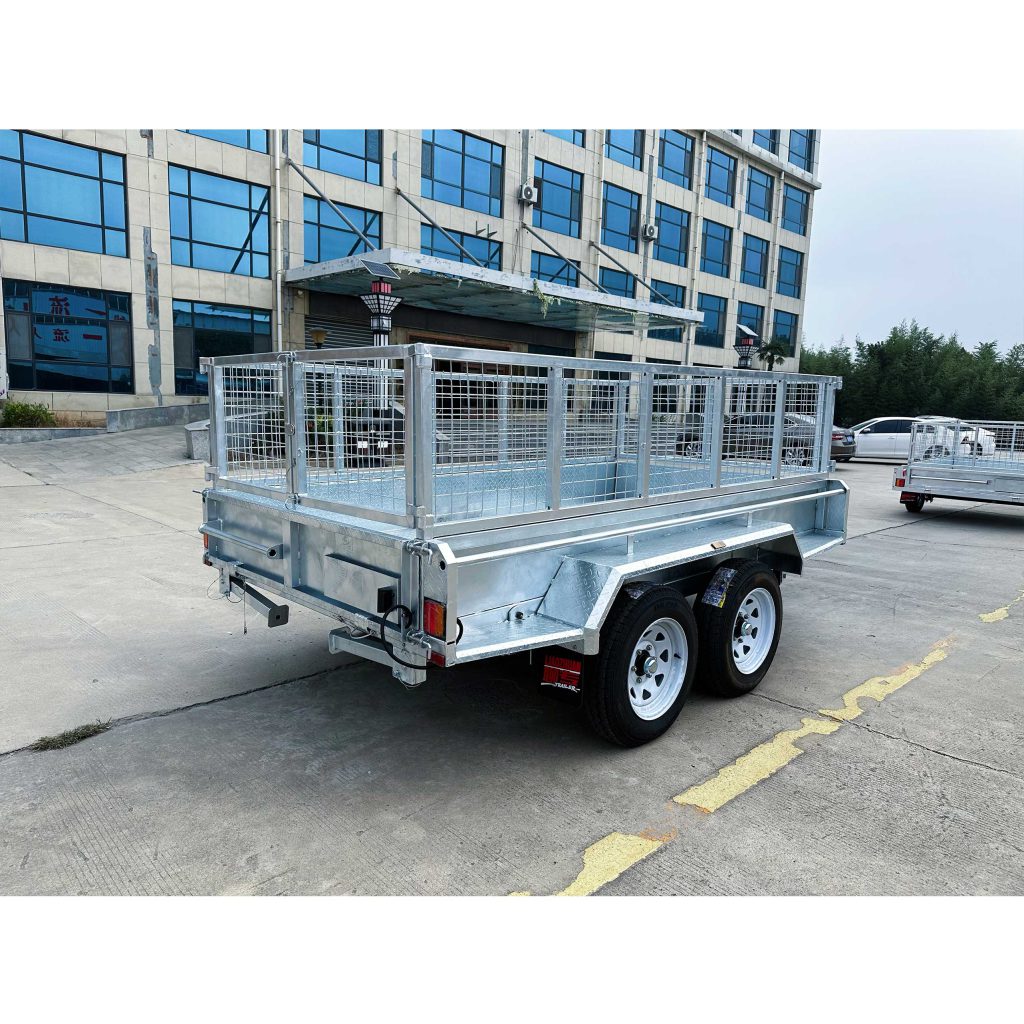

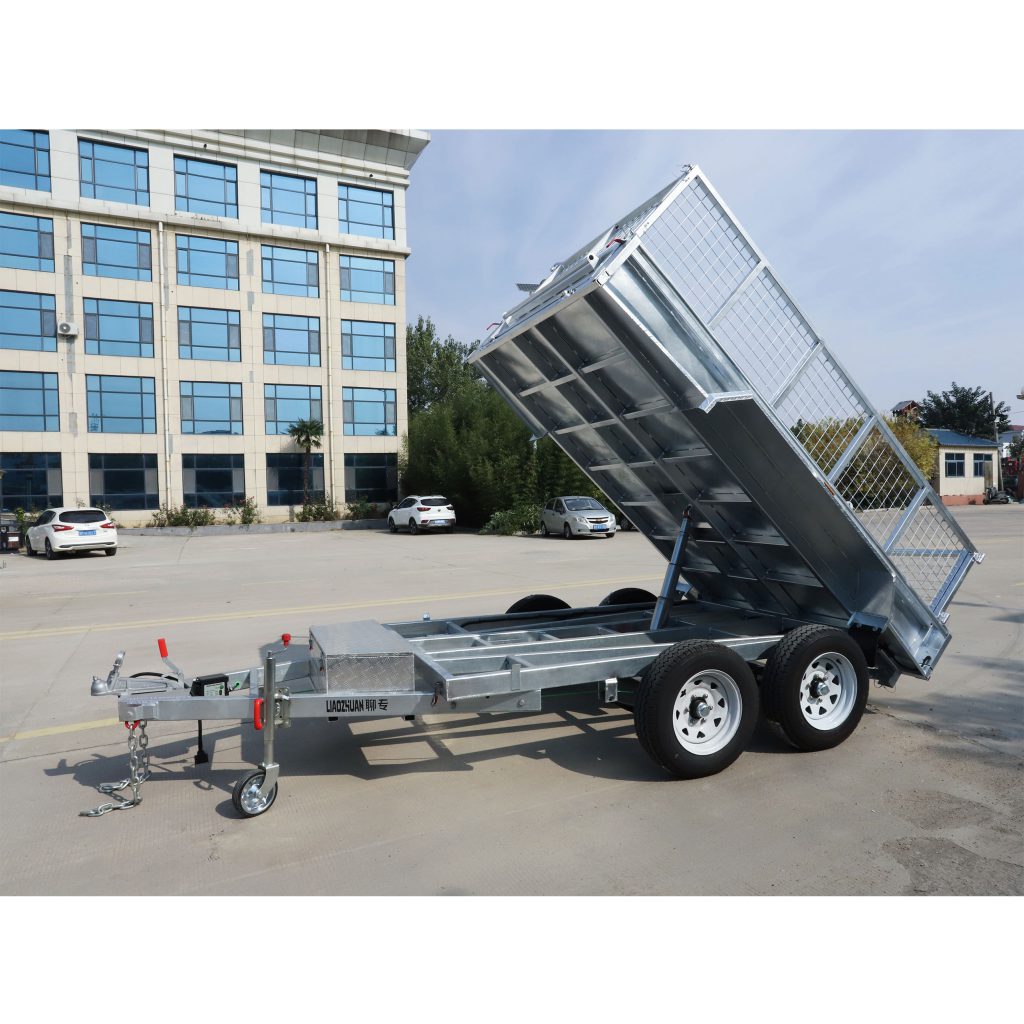

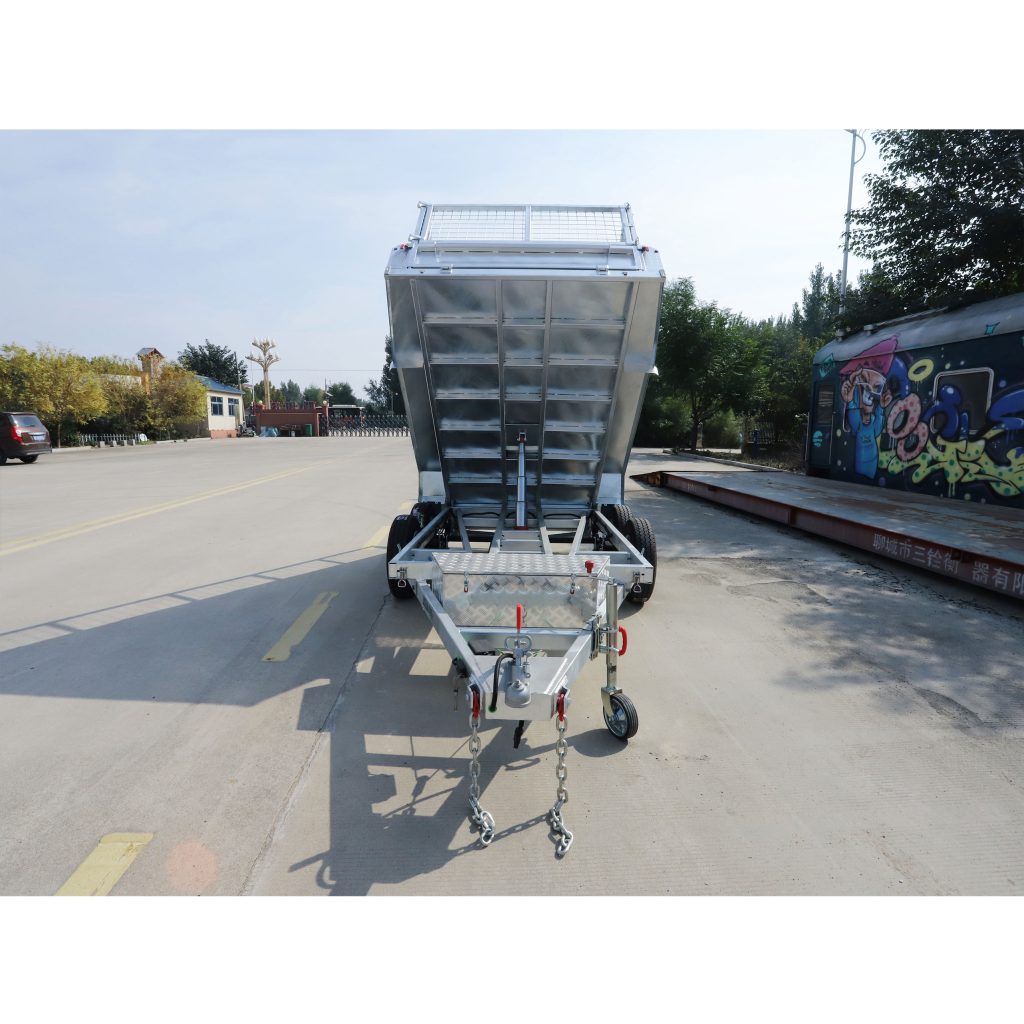

10×5 Hydraulic Tipper Galvanised Box Trailer 3000kg ATM (Electric Brake)
Request a quoteSpecifications
Technical specifications
| Internal dimensions | 3040mm*1530mm*300mm+600mm |
|---|---|
| Drawbar | 100*50*3.75 ，1500 long |
| Surface treatment | Hot-dip galvanizing |
| Fully Welded Body & Chassis | yes |
| Removable front and rear drop-down doors | yes |
| Color | Silver |
| Light | LED ADR light |
| Axis | 50 square steel bars |
| ATM | 3000kg |
| Rated load capacity | 1870kg |
| Weight of the skin | 1130kg |
| Guide wheel | 8 inch |
| Patterned panel | 2.3Pattern |
| Inclined fuselage | yes |
| Border | 2.3Pattern |
| Cage | 40*40 square tube 63*60*4 grid |
| Spring | 8 pieces |
| Beam | 80*40*2.5 |
| Tire | 185R15LT |
| Swing wheel | 8 inches, operable |
| Brake | 10-inch dual electric brakes |
| Plug | 7 Pin, Flat |
| Optional toolbox | Aluminum |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
