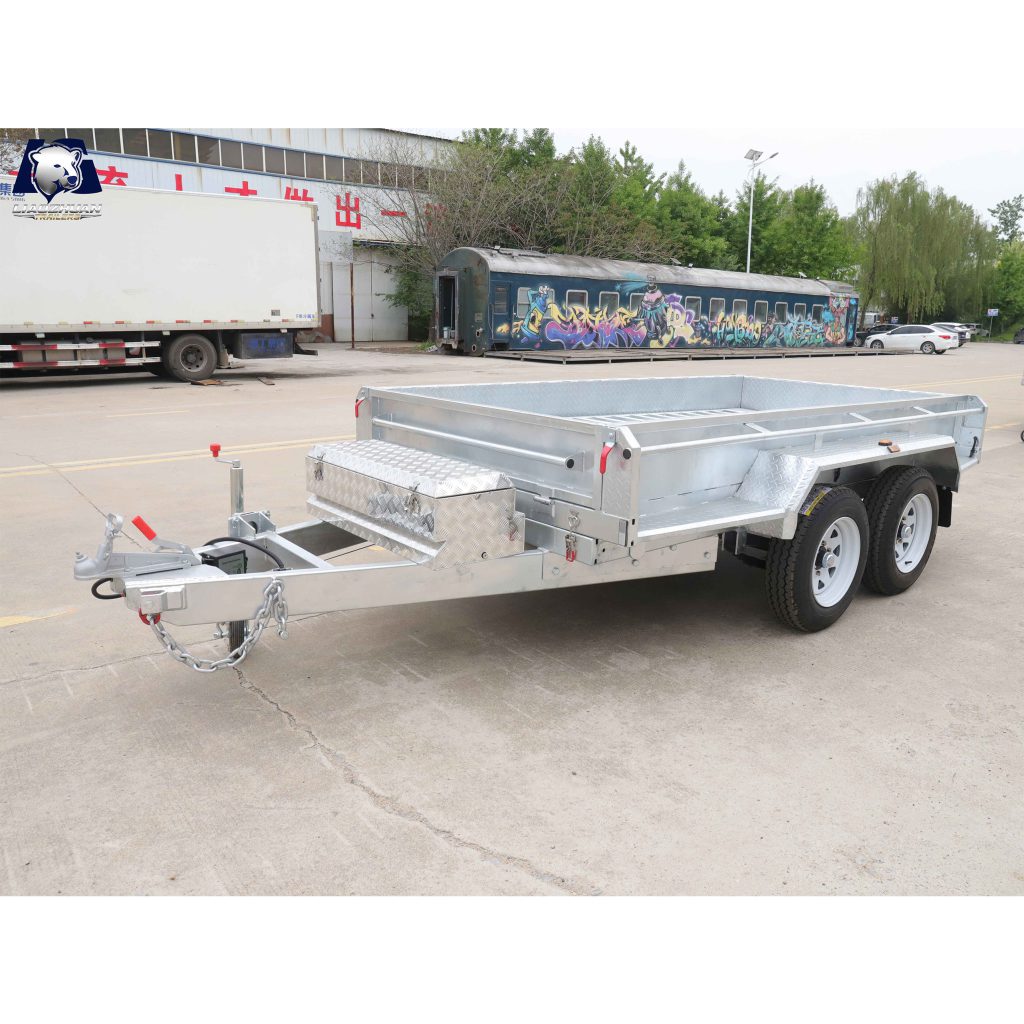

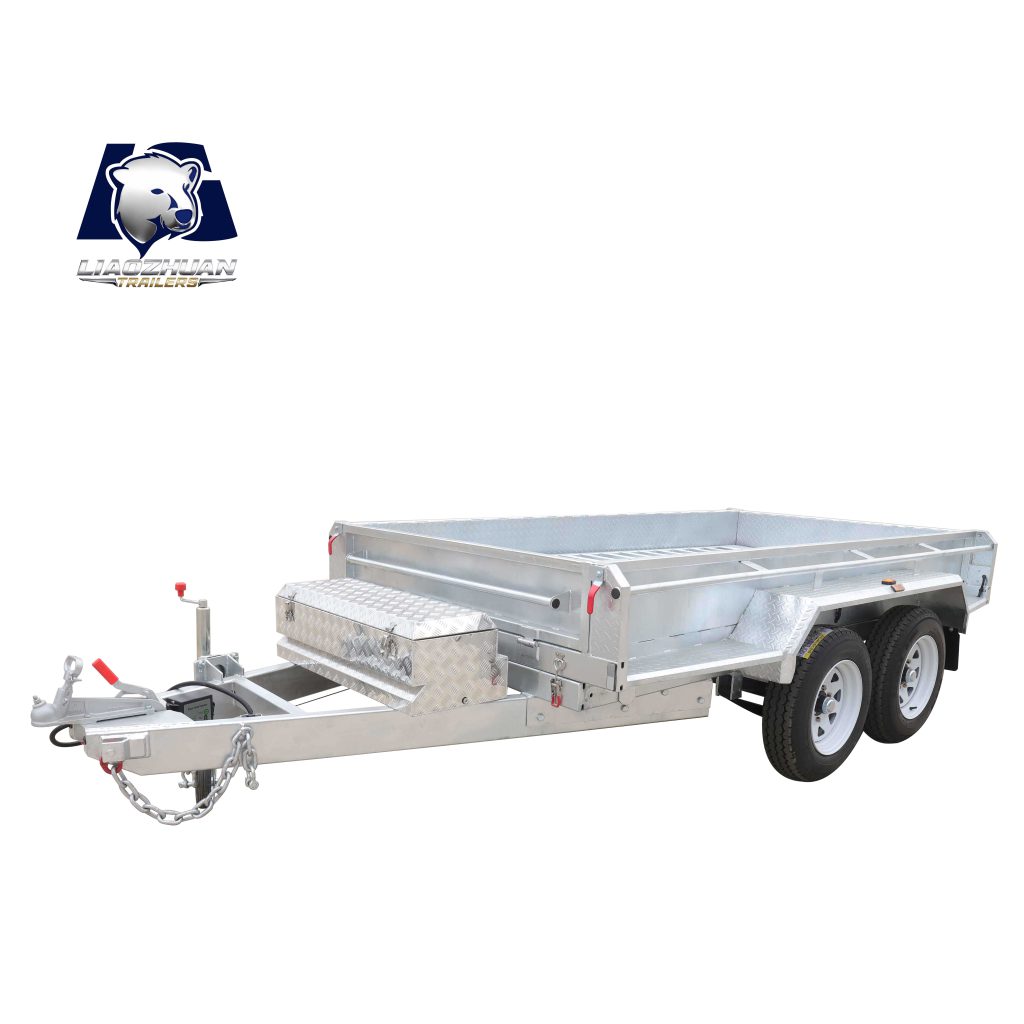

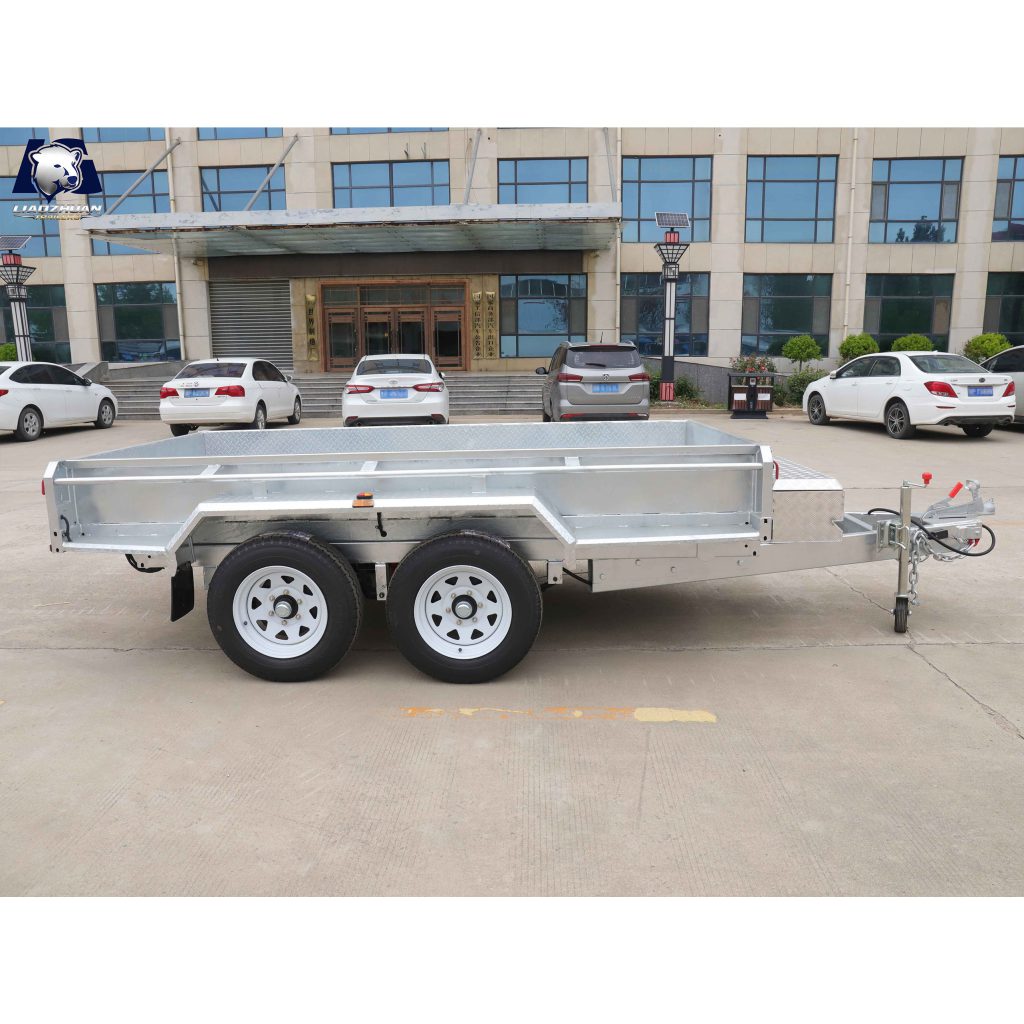

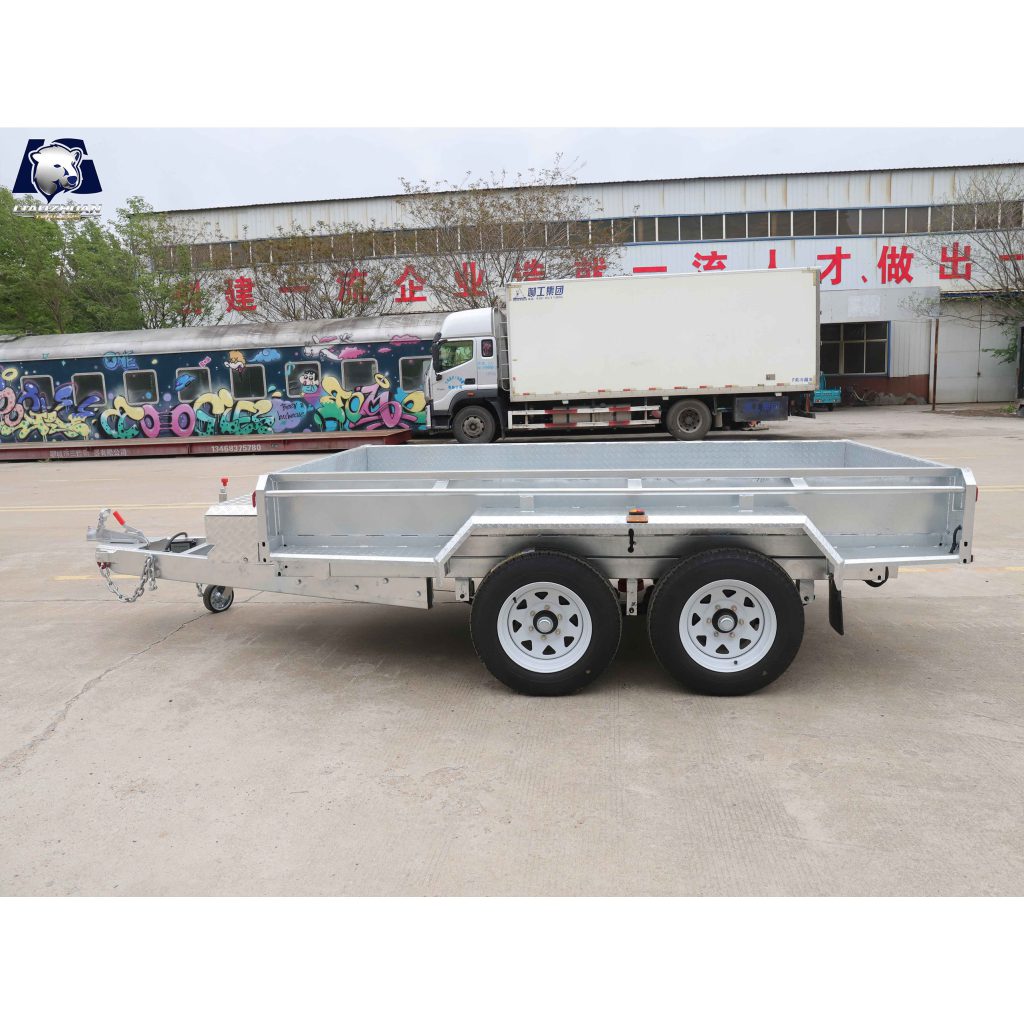

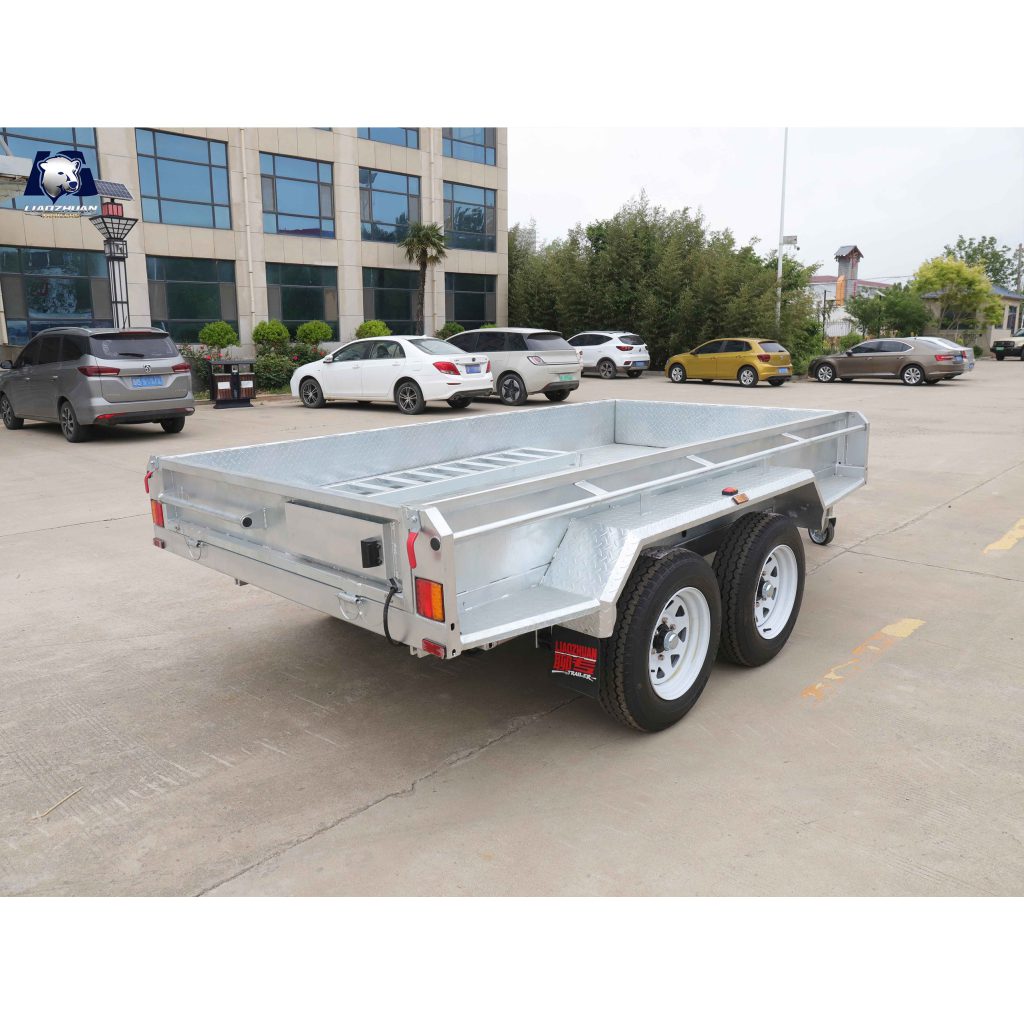

10×5 Hydraulic Tipper Galvanised Trailer 3000kg ATM (Electric Brake)
Request a quoteSpecifications
Technical specifications
| Trailer dimensions | 4640mm*2060mm*800mm |
|---|---|
| Drawbar | 150*50，1500 long |
| Internal dimensions | 3040mm*1530mm*300mm+600mm |
| Surface treatment | Hot-dip galvanizing |
| Fully Welded Body & Chassis | yes |
| Removable front and rear drop-down doors | yes |
| Color | Silver |
| Light | LED ADR light |
| ATM | 3000kg |
| Rated load capacity | 1935kg |
| Weight of the skin | 1065kg |
| Guide wheel | 8 inch |
| Patterned panel | 2.5Pattern |
| Inclined fuselage | yes |
| Spring | 7 pieces |
| Beam | 80*40*2.5 |
| Tire | 185R15LT |
| Ramp | 2050mm |
| Swing wheel | 8 inches, operable |
| Brake | 10-inch dual electric brakes |
| Plug | 7 Pin, Flat |
| Certification | 9001/TS 16949、CCC、CE、ADR、DOT |
Request a quotation
Tell us the unit type, quantity and destination port and we will reply with a quotation.
